Description
✨ Product Overview
The ABB D685A1156U01 is a premium electronic base plate (Backplane Type 3) designed for industrial process control transmitters, particularly within electromagnetic flowmeter systems. Serving as a foundational connection platform, it ensures exceptional signal integrity, stable board-to-board communication, and reliable data routing within complex or harsh manufacturing environments.
📋 Product Datasheet & Parameters
| Parameter | Specification |
| Target Model | ABB D685A1156U01 |
| Brand Manufacturer | ABB |
| Product Type | Universal Base Plate Type 3 / Backplane PCB |
| Dimensions | Standard compact transmitter enclosure sizing |
| Weight | Approx. 0.85 kg |
| Country of Origin | Germany |
| System Compatibility | ProcessMaster FEP300, FEP500 / HygienicMaster FEH300, FEH500 |
| Rated Voltage | Standard 24V DC / System loop powered |
🏭 Application Fields
- Water & Wastewater Management: Integrated into large-scale flow transmitter units tracking treatment or municipal distribution networks.
- Chemical & Petrochemical Processing: Ensures reliable data extraction and monitoring for chemical and fluid dosing lines.
- Food & Beverage Production: Deployed within sanitary and hygienic flowmeter frameworks to monitor fluid batching.
- Power Generation Operations: Utilized in auxiliary cooling fluid circuits and plant monitoring infrastructures.

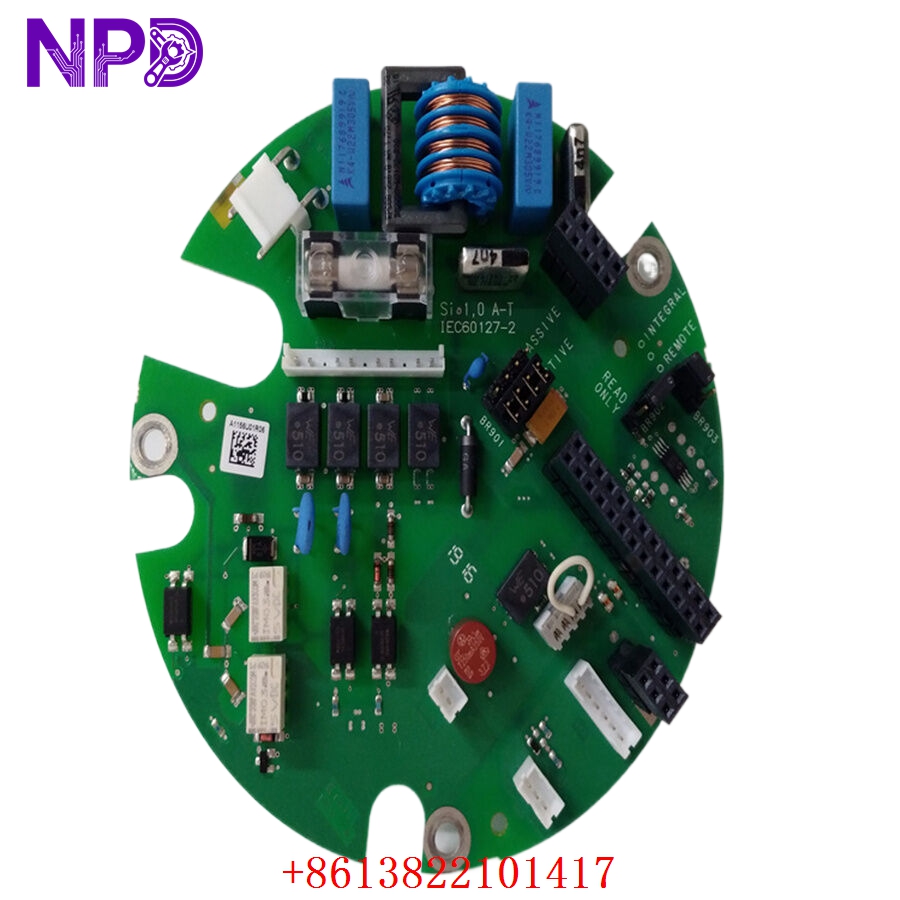

ABB D685A1156U01

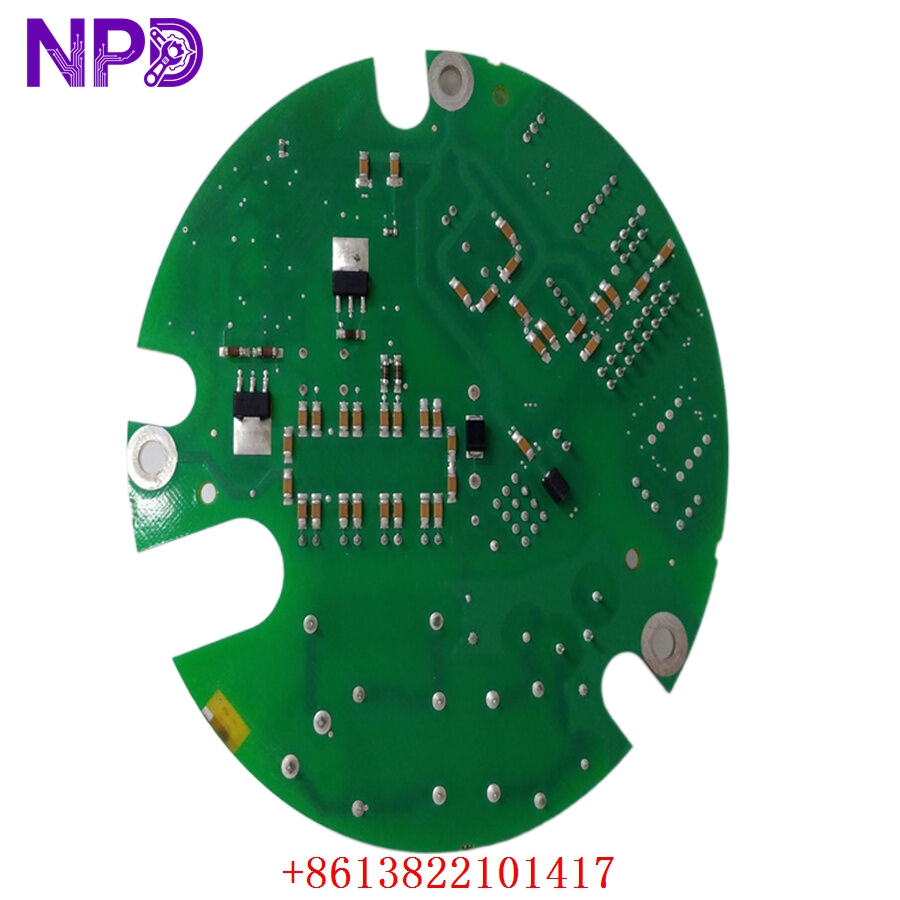

ABB D685A1156U01
⚙️ Product Usage Instructions
- System De-energization: Fully power down the flowmeter transmitter and isolate auxiliary power inputs before beginning installation or replacement procedures.
- Structural Alignment: Carefully guide the Type 3 base plate onto the housing tracks to avoid structural stress or physical component bending.
- Terminal Interconnection: Connect the sensor interface wiring loops and ribbon paths into the assigned terminals on the module, verifying full seating.
- Enclosure Calibration: Reassemble the housing completely and secure all seals to sustain the system’s factory ingress protection rating before restoration of power.
❓ Q&A: Frequently Asked Questions
Q1: Which specific transmitter models run on this base plate design?
💡 A: The unit is optimized to work smoothly with ABB’s standard industrial flow systems, specifically supporting the FET321 and FET521 external transmitter assemblies.
Q2: Does this board feature built-in overcurrent protection?
💡 A: Yes, the PCB layout incorporates dedicated protective circuit configurations, accommodating IEC60127-2 compliant fuses to shield key processing nodes from spikes.
Q3: Is programming required when installing a new base plate?
💡 A: No, this serves primarily as a passive physical backplane and communication pathway matrix; individual hardware flash configurations are handled on the primary transmitter display module.
