Product Introduction
⚙️ Product: DAPC100
🏷️ Part Number: 3ASC25H203
🔧 Brand: ABB
🧩 Product Type: Control Board with CMT Memory Stick

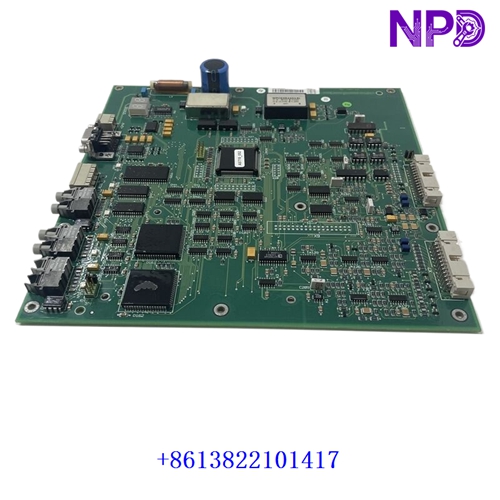

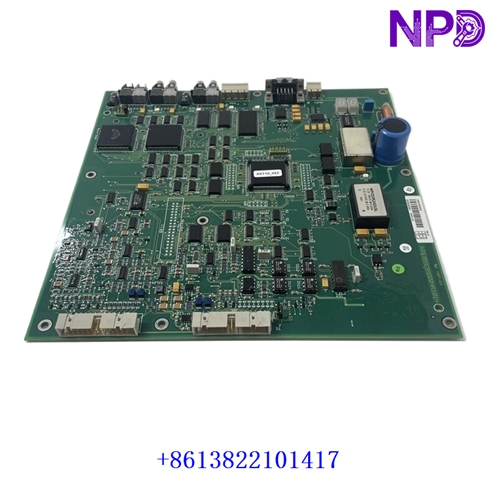

The ABB DAPC100 3ASC25H203 is an industrial control board used in ABB drive and automation equipment. ABB-related product references identify this version as a DAPC 100-12 control board supplied with a CMT memory stick.
💾 The CMT memory stick is used with the control board for storing or transferring system data and configuration information. The board is associated with ABB drive-control applications and is suitable for maintenance, replacement, and legacy industrial automation systems.
🔌 Before installation, verify the complete 3ASC25H203 ordering code, hardware revision, CMT memory configuration, compatible ABB drive, connectors, and existing control parameters.
Product Datasheet
🔹 Model: DAPC100
🔹 Part Number: 3ASC25H203
🔹 ABB Type: DAPC 100-12
🔹 Product Type: Industrial Control Board
🔹 Description: Control Board with CMT Memory Stick
🔹 Application: ABB Drive and Industrial Control Systems
🔹 Memory: CMT Memory Stick
🔹 Power Supply: 24 VDC, system/configuration dependent
🔹 Operating Temperature: 0°C to +55°C*
🔹 Storage Temperature: -40°C to +85°C*
🔹 Humidity: 5–95% RH, non-condensing*
🔹 Dimensions: Approx. 203 × 146 × 51 mm*
🔹 Weight: Approx. 0.37 kg net*
🔹 Mounting: Internal Control Equipment / Drive Cabinet
🔹 Country of Origin: Sweden
The 0.37 kg net weight, Swedish origin, DAPC 100-12 designation, and CMT memory-stick configuration are supported by available ABB product references. Physical dimensions and environmental values can vary by specific hardware configuration.
Typical Applications
⚡ ABB drive control systems
🏭 Industrial automation equipment
🏗️ Crane and motion-control applications
🔄 Motor control and drive maintenance
🛠️ Legacy ABB control-system replacement
📦 Industrial automation spare-parts inventory
Installation & Use
🛠️ Before installation, record the existing board configuration and check the exact DAPC100 revision and CMT memory-stick configuration.
🔌 Power down the equipment completely before replacing the board. Use ESD protection and inspect the connectors, PCB, and memory stick before installation.
💾 If the CMT memory stick contains application or configuration data, verify that it belongs to the intended system before transferring or loading any data.
📊 After startup, check board diagnostics, drive communication, control parameters, and motor feedback. Perform a functional test at low load before returning the equipment to normal operation.
⚠️ Do not assume that different DAPC100 revisions are interchangeable. Match the complete ABB part number and hardware configuration before replacement.
