ABB DAPU100 3ASC25H204 | MasterPiece 200 Pulse Counter Module

Description

• Model: ABB DAPU100 3ASC25H204
• Brand: ABB
• Series: MasterPiece 200 / Advant Controller 400 Series
• Core Function: High-speed pulse counting and frequency measurement
• Product Type: Pulse Processing Unit (Input Module)
• Key Specs: 2-Channel Pulse Input | 24 V DC Logic | Supports Encoders and Flowmeters

• Number of Channels: 2 independent pulse counting channels
• Input Frequency: Max 50 kHz (depending on filter settings)
• Input Voltage: Standard 24 V DC (Logic 0: < 5V, Logic 1: > 15V)
• Encoder Support: Incremental encoders (A/B phase) or single-pulse trains
• Counter Depth: 16-bit or 32-bit (software configurable in MasterView/Advant)
• Isolation: Opto-isolated inputs for noise immunity
• Power Consumption: Typically 1.5 W from subrack backplane
• Connection: 50-pin ribbon cable to terminal base (e.g., DSTU series)
• Diagnostics: Module status LED (Run/Fault) and software error reporting
• Operating Temp: 0 to +55°C

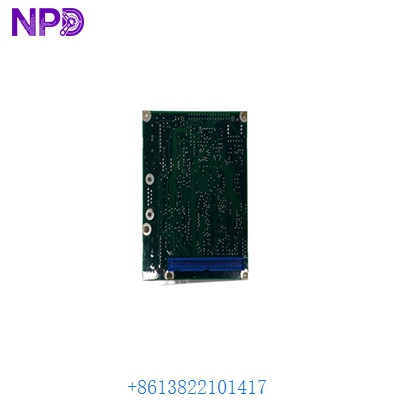

ABB DAPU100 3ASC25H204

Application Scenarios & Pain Points

In high-speed production lines or turbine control systems, standard digital input modules are too slow to “catch” pulses from encoders or flowmeters. The ABB DAPU100 3ASC25H204 is the dedicated hardware tasked with high-frequency signal processing. Because these modules are often found in legacy MasterPiece 200 systems, they are prone to “aging” capacitors which can cause the counter to skip pulses or drift, leading to inaccurate speed or position data.

Typical Application Scenarios:

1. Turbine Speed Measurement: Counting pulses from magnetic pickups on a turbine shaft to calculate RPM for overspeed protection.
2. Web Tension Control: Monitoring incremental encoders on paper or steel rollers to ensure synchronized motor speeds.
3. Flow Metering: Interfacing with turbine-type flowmeters in oil and gas pipelines for precise volume totalization.
4. Positioning Systems: Tracking the movement of heavy industrial cranes or loaders in mining environments.

Real-World Case: The “Creeping” Conveyor

Background: A steel mill in Northern Europe was using an Advant 410 system to control a heavy-duty slab conveyor. The position was tracked by an encoder fed into a DAPU100.

Problem: Over the course of a week, the conveyor started stopping 2-3 inches past its target. The operators recalibrated the software “zero,” but the error kept returning. They checked the encoder—it was fine. The issue was the ABB 3ASC25H204. One of the input optocouplers on the board had slowed down due to heat fatigue, causing it to “miss” about 5% of the pulses during high-speed deceleration.

Solution: We supplied a fully tested DAPU100 from our inventory. Since it’s a “plug-and-play” board for the MP200 subrack, the swap took less than 10 minutes.

Result: The conveyor position returned to millimeter-precision immediately. Teacher’s tip: When you’re dealing with pulse counters, if the error is “cumulative” (gets worse over time until a reset), it’s almost always a hardware timing issue on the input card.

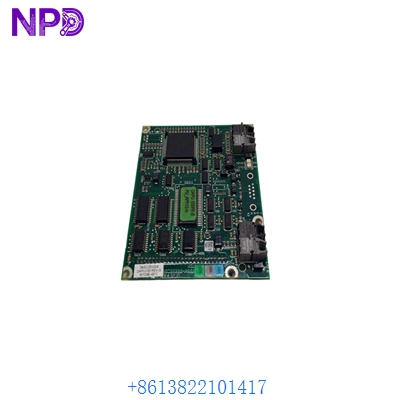

ABB DAPU100 3ASC25H204

Compatible Replacement Models

The DAPU series has several variations. While they look similar, the internal firmware and frequency limits differ.

Engineer’s Note: In MasterPiece 200 systems, the 3ASC part number is the “Gold Standard” for identification. Always match the H204 suffix to ensure the hardware revisions match your existing configuration.

Troubleshooting Quick Reference

Pro Tip: If you suspect the module is dead, try swapping the ribbon cable with Channel 2 (if unused). If the count starts working on the other channel, you’ve confirmed a hardware failure on the first input circuit.

ABB DAPU100 3ASC25H204

Inventory List: ABB MasterPiece & Advant

1. DAPU100 (3ASC25H204)
2. DSBC173 (Bus Extender)
3. DSDP170 (Pulse Input)
4. DAPC100 (3ASC25H203)
5. PM511V16 (Processor Module)
6. PM866 (3BSE018161R1)
7. AI810 (Analog Input)
8. DO810 (Digital Output)
9. CI522A (AF100 Interface)
10. SD822 (Power Supply)

Do you need the specific pinout diagram for the 50-pin ribbon cable connector? I can draw that up for you to help with your field wiring checks.
