Description
🔧 Product Overview

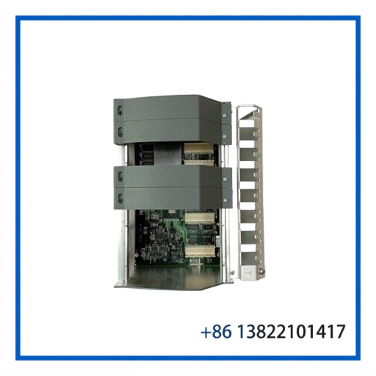

The ABB DFC 01, part number 37261-4-0369529, is a FieldController Main Board used in the legacy ABB / Hartmann & Braun Freelance 2000 automation platform.
The board is associated with the DFC 01 Freelance controller family and serves as a central controller component within the system. ABB documentation identifies DFC 01 as one of the Freelance 2000 controllers supported by Control Builder F.
This is not a conventional analog or digital I/O module. It is a controller-level board, so replacement requires careful attention to the complete Freelance 2000 hardware configuration, firmware, controller version, and installed application.
⚙️ Key Features
- ABB / Hartmann & Braun Freelance 2000 controller hardware
- Model DFC 01
- Part number 37261-4-0369529
- FieldController Main Board
- Controller-level processing function
- Used with the Freelance 2000 control platform
- Supported by Control Builder F in the documented Freelance environment
- Designed for integration with dedicated Freelance system modules
- Suitable as a replacement or maintenance spare for legacy installations
- Exact hardware revision should be matched before installation
📋 Product Datasheet
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Manufacturer Family | ABB / Hartmann & Braun |
| Model | DFC 01 |
| Part Number | 37261-4-0369529 |
| Product Type | FieldController Main Board |
| System | Freelance 2000 |
| Controller Family | DFC Series |
| Application | Process Automation / DCS |
| Function | Controller Main Board |
| Engineering Software | Control Builder F |
| I/O Compatibility | System Configuration Dependent |
| Communication | System Configuration Dependent |
| Power Supply | Verify system/base unit |
| Mounting | Dedicated Freelance Controller Hardware |
| Country of Manufacture | Germany reported in available records |
| Condition | Verify actual listing condition |
| Approx. Weight | Approx. 1.8 kg reported for a complete listed unit |
🔄 Operating Function
The DFC 01 operates at the controller level of a Freelance 2000 system.
A simplified system architecture can be represented as:
Engineering Station → Freelance Controller → I/O / Communication Modules → Field Devices
The controller executes the configured control application and manages communication with the associated I/O and system components. The actual I/O capacity and communication functions depend on the complete Freelance 2000 configuration rather than the DFC 01 board alone.
ABB’s Freelance documentation specifically lists DFC 01 and DFC 02 among the legacy Freelance controllers supported by Control Builder F.
🛠️ Installation & Configuration
The DFC 01 should be treated as a system-specific controller board rather than a universal PLC replacement.
Before installation:
- Confirm the board identification: DFC 01 / 37261-4-0369529.
- Compare the hardware revision with the existing controller.
- Check the installed Freelance 2000 controller configuration.
- Verify the associated power supply and controller hardware.
- Confirm compatible I/O and communication modules.
- Check the project version and Control Builder F configuration.
- Back up the existing application before replacing the board.
- Install the board with power isolated according to the site procedure.
- Verify all connectors and backplane contacts.
- Restore the controller configuration and perform a controlled startup.
- Check controller diagnostics and communication status.
- Test I/O and control functions before returning the process to normal operation.
A controller board should not be replaced solely on the basis of physical similarity. Firmware, hardware revision, configuration data, and system architecture all need to match.
🔍 Maintenance Tips
For a legacy Freelance controller spare, preventive inspection is particularly important.
- Keep the PCB clean and dry.
- Inspect edge connectors for oxidation or contamination.
- Check for damaged components, cracked solder joints, or overheated areas.
- Inspect connectors and backplane contacts before installation.
- Protect the board from electrostatic discharge during handling.
- Record hardware and firmware revisions.
- Maintain a backup of the Freelance application.
- Check controller diagnostics after installation.
- Keep a known-good spare available where the controller is process-critical.
For long-term storage, use an ESD-safe bag and a dry, temperature-controlled environment.
❓ Common Questions
What is the ABB DFC 01?
It is a FieldController Main Board for the ABB / Hartmann & Braun Freelance 2000 automation platform.
What is the part number?
The identified part number is 37261-4-0369529.
Is the DFC 01 an I/O module?
No. It is a controller-level main board rather than a standard analog or digital I/O card.
Which automation system uses the DFC 01?
It is associated with the Freelance 2000 control system.
Can Control Builder F be used with the DFC 01?
ABB Freelance documentation identifies DFC 01 as one of the Freelance controllers supported by Control Builder F.
Can the DFC 01 directly replace a DFC 02?
Do not assume direct interchangeability. DFC 01 and DFC 02 are separate controller models and should be matched to the original system configuration.
Does the board have its own power rating?
The exact system power requirements should be verified from the controller/base-unit documentation. Do not apply power based on a generic PCB specification.
Is the DFC 01 still a current controller?
It belongs to the legacy Freelance 2000 controller family. It is mainly relevant today for maintenance, repair, and spare-parts requirements in existing installations.
What should be checked before purchasing a replacement?
Match the model, part number, hardware revision, controller configuration, firmware/software requirements, and physical interfaces.
🔄 Recommended ABB Freelance 2000 Models
- DFC 01 – FieldController Main Board
- DFC 02 – FieldController
- DCP 02 – Freelance 2000 CPU Module
- DCP 10 – Freelance 2000 CPU Module
- DFP 01 – FieldController Power Supply Module
- DFE 01 – 10Base2 Ethernet Module
- DFM 11 – Profibus DPV1 Module
- DCO 01 – Serial Interface Module
- DAI 05 – Analog Input Module
- DDO 01 – Digital Output Module
🏭 Application Summary
The ABB DFC 01 37261-4-0369529 is a legacy Freelance 2000 FieldController Main Board intended for controller-level operation in ABB / Hartmann & Braun process automation systems.
Its value today is primarily as a maintenance and replacement component for existing Freelance installations. ABB’s Freelance documentation confirms the DFC 01 as part of the controller family supported within the Freelance engineering environment.
For replacement work, always compare the complete identification number, hardware revision, controller configuration, firmware, connected I/O modules, and engineering project before installation.
