Description

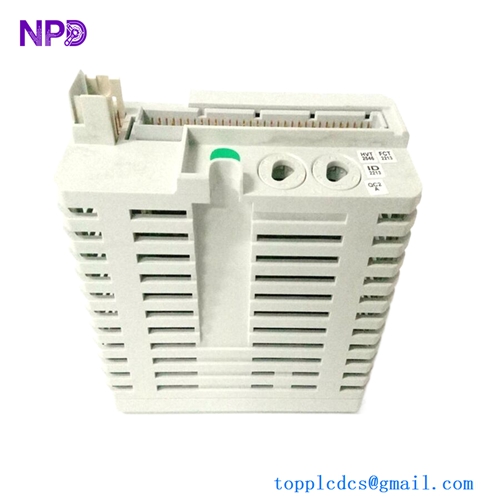

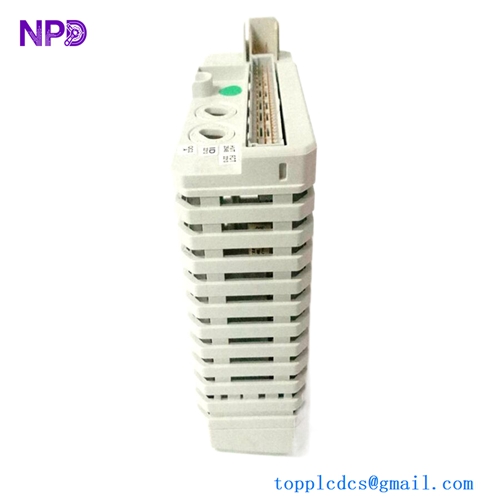

The ABB DI810 is a high-performance digital input module designed for the S800 I/O system. It serves as a reliable interface between industrial processes and control systems, converting field signals into logic levels used by the controller.
Product Overview
The DI810 is a 16-channel digital input module specifically engineered for 24V DC applications. It features a compact design that optimizes cabinet space while providing robust signal processing for demanding industrial environments.
- Product ID: 3BSE008508R1
- Module Type: DI810 Digital Input 24V
- System Compatibility: S800 I/O System
Technical Specifications (Datasheet)
The following table outlines the core electrical and physical parameters of the module:

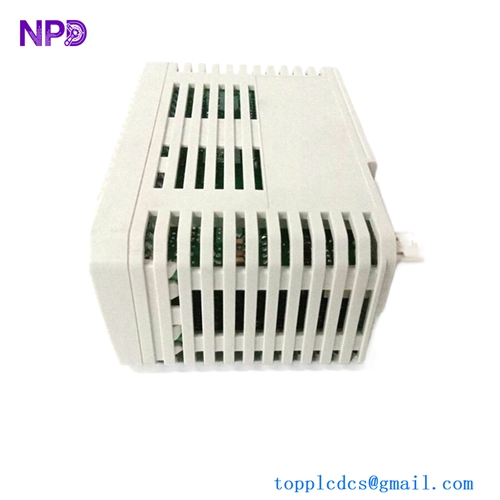

ABB 3BSE008508R1 DI810
| Parameter | Specification |
| Number of Channels | 16 (1 group of 16) |
| Rated Voltage | 24 V DC |
| Input Voltage Range | 15 V to 30 V DC (Logic 1), -3 V to +5 V DC (Logic 0) |
| Input Current | Typ. 5.2 mA at 24 V |
| Power Dissipation | Typ. 2.5 W |
| Isolation | 50 V (Group to Earth) |
| Filter Time | Configurable (0.5 ms to 100 ms) |
| Country of Origin | Sweden (or Estonia, depending on factory batch) |
Application Fields
The DI810 is widely utilized across various sectors where precise digital signal monitoring is required:
- Power Plants: Monitoring breaker status and alarm contacts.
- Oil & Gas: Interfacing with pressure switches and emergency stop buttons.
- Chemical Processing: Tracking valve positions and level sensors.
- Manufacturing: General sequence control and machine interlocking.
ABB 3BSE008508R1 DI810
Technical Description & Instructions
The module functions as a “sink” input, meaning the field device must provide the voltage. It includes status LEDs on the front panel for each channel, allowing for rapid onsite troubleshooting.
- Mounting: The module is “hot-swappable” and plugs into a ModuleBus terminal base (e.g., TU810 or TU812).
- Configuration: Filter times and channel settings are defined via the ABB Engineering Suite (Control Builder).
- Safety: The module incorporates current-limiting circuitry to protect internal components from field surges.
Recommended Similar Models
If you are looking for alternatives or complementary modules within the S800 series, consider the following:
- DI811: A 48V DC version of the digital input module.
- DI814: A 24V DC input module with 16 channels but higher isolation ratings.
- DI820: An 8-channel input module designed for 120V/230V AC applications.
- DI880: High-integrity digital input module for SIL3 safety applications.
- DO810: The 16-channel digital output counterpart for 24V DC loads.
