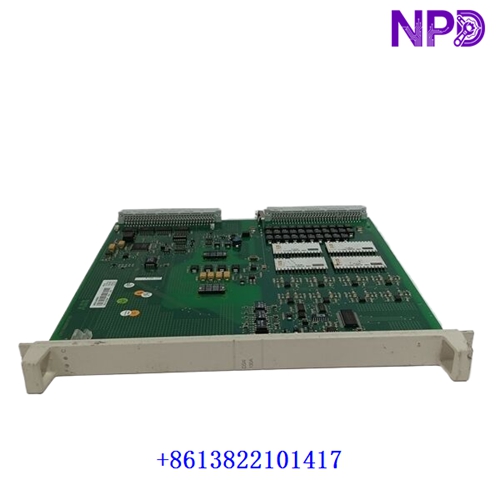

ABB DSAI 130A | 3BSE018292R1 | Analog Input Board

Description

Product Specifications & Datasheet

• Brand: ABB
• Model: DSAI 130A (3BSE018292R1)
• Series: Advant Controller 410 / Master Piece
• Product Name: Analog Input Board
• Place of Origin: Sweden
• Lifecycle Status: Mature / Active Industrial Spare
• Dimensions: Standard Eurocard Form Factor
• Weight: 0.45 kg
• Origin Country: Sweden
• Power Rating: Internal Bus Powered (24V DC / 5V DC)

Operating Procedures & Usage Guidelines

• Pre-Installation Inspection: Verify that the rack power is turned off and inspect the module connectors for dust, moisture, or bent pins.
• Insertion & Mounting: Carefully align the board with the rack guide rails and push it firmly into the designated backplane slot until fully seated.
• Signal Termination: Connect field sensor wiring to the corresponding termination units, ensuring all cable shields are grounded correctly to reduce electrical noise.
• Power-Up & Verification: Restore power to the rack and check the controller software interface to confirm the module initializes without hardware errors.

Emergency Shutdown Operation

• Main Power Cutoff: Activate the emergency stop or main breaker supplying the I/O rack to completely isolate power during critical plant emergencies.
• Loop De-Energization: Disconnect external loop power feeds if specific analog inputs must be isolated immediately without shutting down the entire controller rack.

Troubleshooting & Common Issues

• Erratic Analog Readings: Inspect signal cable shielding and verify that grounding points are secure to eliminate electromagnetic interference.
• Communication Loss: Check the backplane connection to ensure the module is fully pushed in and the locking latches are secure.
• Channel Failure: Use a multimeter to measure the direct input voltage or current at the terminal block to determine if the fault originates from the field device or the board.

Routine Maintenance & Care

• Environmental Check: Ensure the control cabinet air filtration and internal cooling fans maintain proper operating temperatures around the I/O racks.
• Hardware Tightening: Periodically check terminal block connections and rack screws to prevent loose contacts caused by industrial vibration.
• System Diagnostics: Review controller diagnostic logs regularly to catch early warning signs of module degradation or communication warnings.

Frequently Asked Questions (Q&A)

• Q: What is the primary function of the ABB DSAI 130A module?
  • A: It serves as an analog input board designed to process multiple analog field signals into digital values for the control system.
• Q: Can the DSAI 130A be replaced while the system is powered on?
  • A: Powering down the rack or following approved system-specific hot-replacement procedures is recommended to avoid configuration corruption or hardware surges.
• Q: How do I verify if the module is communicating properly with the controller?
  • A: Check the status LED indicators on the module front panel and verify the hardware status via the engineering configuration software.
