Description
- Model: ABB DSAI130 57120001-P5
- Brand: ABB (Sweden/Switzerland)
- Series: Advant Master / MasterPiece 200 / S100 I/O
- Core Function: 16-channel high-density analog input processing
- Type: Analog Input Module (S100 I/O System)
- Key Specs: 12-bit resolution, supports 0-20 mA / 4-20 mA and 0-10 V signals
- Input Channels: 16 single-ended or 8 differential (jumper configurable)
- A/D Resolution: 12-bit binary
- Input Ranges: 0 to +10 V, 0 to +5 V, 0 to 20 mA, 4 to 20 mA
- Input Impedance: > 10 M\Omega (voltage), 250 Ω (current with shunt)
- Common Mode Voltage: Max 50 V
- Conversion Time: Typically 5 ms for all 16 channels
- Power Consumption: +5 V @ 600 mA (from backplane)
- Operating Temperature: 0°C to +55°C (32°F to 131°F)
- Isolation: Galvanic isolation via optocouplers to the sub-bus
- Form Factor: Standard S100 I/O board (Double Eurocard)

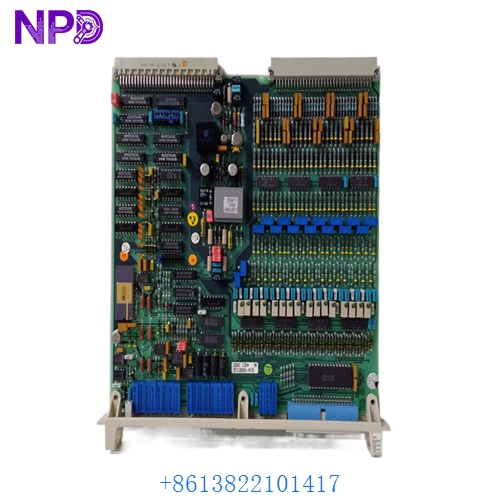

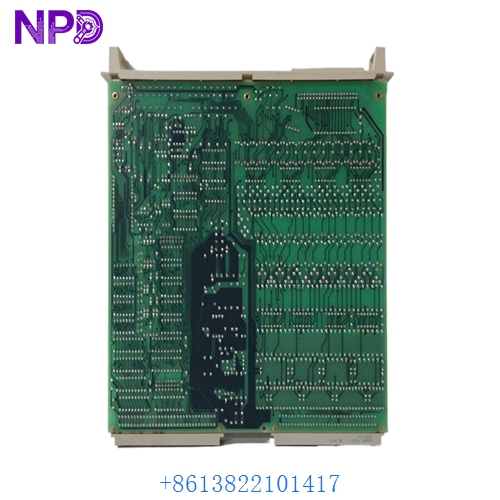

ABB DSAI130 57120001-P5
ABB DSAI130 57120001-P5
ABB DSAI130 57120001-P5
Installation & Configuration Guide
Phase 1: Preparation (20 minutes)
⚠️ Safety Warning: The DSAI130 is a component of the S100 I/O system, often used in large-scale DCS (Distributed Control Systems). Pulling this module without software “Bypass” or “Inhibit” may trigger process alarms or safety interlocks in the Advant Controller.
Required Items:
- Grounded anti-static wrist strap.
- Needle-nose pliers for jumper settings.
- Advant Station or MasterView 800 for software configuration.
- Calibration source (0-20 mA / 0-10 V simulator).
Phase 2: Hardware Configuration (15 minutes)
Steps:
- Jumper Matching: Before sliding in the new 57120001-P5, you MUST match the jumpers (S1 through Sxx) from the old board. These define the address, input type (Current vs. Voltage), and differential vs. single-ended mode.
- Address Setting: Verify the sub-bus address jumpers. If the address is wrong, the AC450 or MP200 controller will report a “Module Missing” or “Configuration Mismatch” error.
- Resistor Check: If using 4-20 mA inputs, ensure the shunt resistors on the terminal base are intact and not charred from a previous surge.
Phase 3: Physical Installation & Testing (15 minutes)
The Process:
- Power Down: It is best practice to power down the I/O subrack, though S100 supports hot-swapping under strict conditions.
- Insertion: Align the ABB DSAI130 57120001-P5 with the subrack guides. Push firmly until the two front-panel levers lock.
- LED Status:
- RUN (Green): System is operating correctly.
- FAULT (Red): Internal hardware error or address conflict.
- Signal Verification: Use your engineering station to monitor the “Value” attribute of the DAT (Data) object. Inject a 12 mA signal and verify a 50% reading in the software.
Customer Cases & Industry Applications
Case 1: Pulp & Paper Mill DCS Stabilization
Situation: A paper mill in Scandinavia used an Advant OCS system for wet-end control. An aging DSAI130 card began “dropping” signals intermittently, causing inconsistent paper thickness. Task: Replace the module during a scheduled 2-hour roll change. Action: We provided an Original New Surplus 57120001-P5. The site engineer used our photos to pre-configure the jumpers before the shutdown. Result: The swap took 10 minutes. Signal stability was restored immediately. The mill avoided an unplanned shutdown which would have cost roughly $12,000 per hour.
Case 2: Power Plant Boiler Feedwater Control
Situation: A thermal power plant’s boiler feedwater pump relied on 4-20 mA feedback processed by a ABB DSAI130 57120001-P5. The card was damaged during a lightning-induced ground loop. Task: Find a replacement for the legacy MP200 controller system where parts are increasingly scarce. Action: We expedited a tested module from our inventory. Result: The plant restored redundancy to the feedwater system within 48 hours. The maintenance lead noted: “Finding new S100 boards is becoming a challenge; having a source for New Surplus is a lifesaver for our 20-year-old system.”
Frequently Asked Questions (FAQ)
Q: What is the difference between DSAI130 and DSAI130A? A: Functionally, they are very similar, but the 57120001-P5 version of the DSAI130 has specific component revisions for better noise immunity. Always try to match the full part number, including the “P5” suffix, to ensure 100% compatibility with your existing backplane.
Q: Does this module support 4-20 mA without external resistors? A: The DSAI130 typically requires shunt resistors on the connection unit (terminal base) to convert current to voltage for the A/D converter. Check your DSTA (Terminal Unit) to ensure the resistors are present.
Q: Can I replace a 57120001-P4 with a 57120001-P5? A: Yes. In the ABB S100 system, higher suffix numbers (P5 vs P4) are generally backward compatible and represent hardware improvements or component updates.
Q: Why is “New Surplus” a better choice than “Used” for analog boards? A: Analog boards use sensitive components like A/D converters and capacitors that drift over time with heat. A used board from a 24/7 factory may have “shorter legs” left. A New Surplus DSAI130 has zero run-time, ensuring the highest accuracy and longest MTBF (Mean Time Between Failures).
Q: How do I know if the card is authentic? A: Look for the original ABB “Made in Sweden” or “Made in Switzerland” markings, the specific barcode format, and the PCB revision numbers. We provide photos of the specific serial number you will receive for your records.
