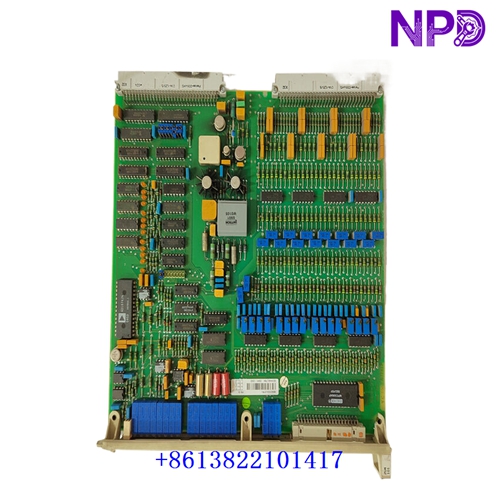

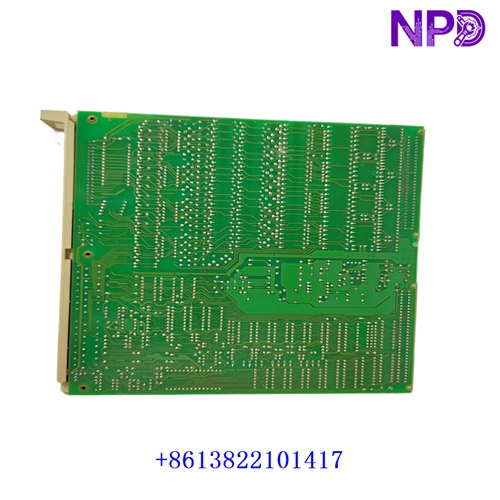

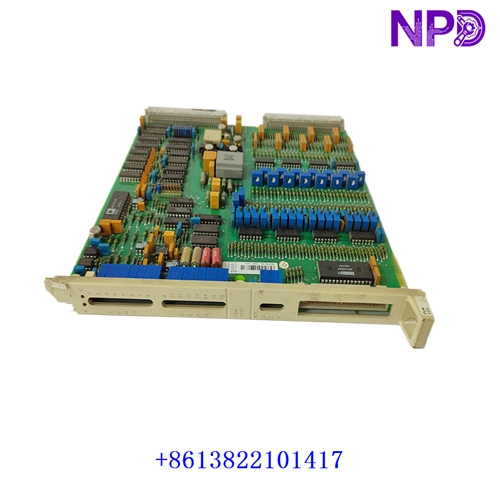

⚙️ The ABB DSAI130D (3BSE003127R1) is a 16-channel differential analog input board designed for ABB Advant Master process control systems. It acquires analog signals from field instruments and converts them into digital data for industrial monitoring and control applications.
🔧 The board supports differential voltage and current inputs, 12-bit conversion, and selectable input filtering. Its differential input design helps reduce common-mode interference in electrically noisy industrial environments. Verify the compatible rack, connection unit, signal configuration, and hardware revision before replacement.
DSAI130D 3BSE003127R1
2. Product Parameters
📋 Brand: ABB
Model: DSAI130D
Part Number: 3BSE003127R1
Series: Advant Master Process Control System
Product Name: Analog Input Board
Input Channels: 16 differential inputs
Input Signal Range: ±10 V / ±10 mA
Resolution: 12-bit
Accuracy: 0.03% (manufacturer-listed specification)
Conversion Time: 20 ms
Filter Cutoff Frequencies: 10 Hz, 30 Hz, 100 Hz, 300 Hz
Dimensions: 365 × 261 × 20 mm (L × W × H)
Net Weight: 0.475 kg
Place of Manufacture: To be confirmed
Country of Origin: Verify from product nameplate
Power Requirements: System-specific; confirm the applicable rack documentation
Product Status: Verify actual inventory condition
Discontinued: Confirm current lifecycle status with ABB
3. Recommended ABB Models
🔩 1. ABB DSAI130 — Analog input board.
2. ABB DSAI130A — Analog input board variant.
3. ABB DSAI133 — Analog input board.
4. ABB DSAI133A — Analog input board.
5. ABB DSAI146 3BSE007949R1 — Analog input board.
6. ABB DSAO120A 3BSE018293R1 — Analog output board.
7. ABB DSAO130 — Analog output board.
8. ABB DSAX110A 3BSE018291R1 — Analog input/output-related board; verify function.
9. ABB DSTA131 — Connection unit for compatible I/O boards.
10. ABB DSTA137 — Connection unit for compatible I/O boards.
11. ABB DSTA138 — Connection unit for compatible I/O boards.
12. ABB DSBC172 57310001-KD — Bus connection unit.
13. ABB DSBC176 3BSE019216R1 — Bus connection unit.
14. ABB CI532V03 3BSE003828R1 — Communication interface.
15. ABB DO810 3BSE008510R1 — Digital output module.
⚠️ These models are related ABB automation products, not all direct replacements. Confirm system compatibility and I/O specifications before ordering.
