Description

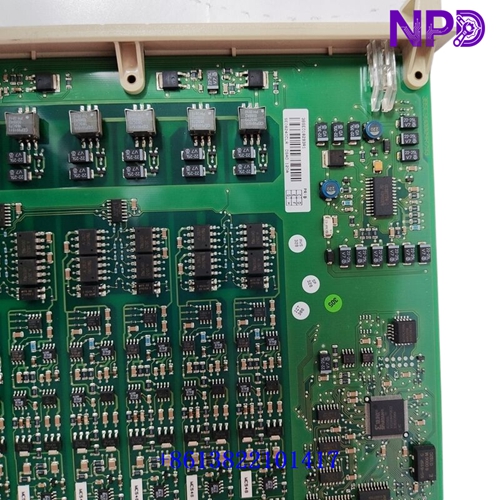

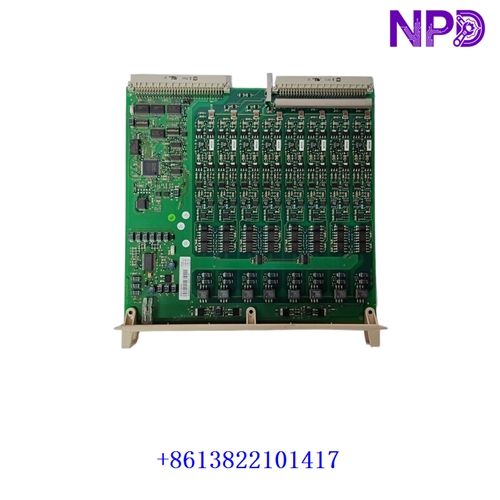

The ABB DSAO120A (Part Number: 3BSE018293R1), also known as the Advant Controller 450 or System 800xA analog output module, is a high-precision I/O device engineered for industrial process automation systems. It is designed to convert digital control signals from the central processor into precise analog current or voltage outputs, enabling accurate control of field actuators, control valves, and variable frequency drives. Built for harsh industrial environments, it offers excellent signal stability, channel-to-channel isolation, and robust operational reliability.
📊 Product Datasheet
| Parameter | Value |
| Brand | ABB |
| Model | DSAO120A / 3BSE018293R1 |
| Series | Advant OCS / System 800xA I/O |
| Product Name | Analog Output Module |
| Origin | Sweden / Germany |
| Product Status | Active / Industrial Automation Spare Part |
| Dimensions | Standard Advant I/O Module Form Factor |
| Weight | 0.6 kg |
| Country of Origin | Sweden (SE) |
| Power Rating | 24V DC Backplane Powered |
🛠️ Operation Standards and Usage Methods
🔸 Handling Precautions: Ensure the control rack is completely de-energized before inserting or removing the module. Always wear a certified anti-static wrist strap to safeguard sensitive internal electronic components against electrostatic discharge.
🔸 Installation Procedure: Carefully align the module with the designated slot in the I/O rack. Push it evenly and firmly until the rear connectors engage fully with the backplane, then secure any upper and lower locking screws or latches.
🔸 Power-Up and Calibration: Energize the system and observe the module’s diagnostic LED indicators. Use the engineering configuration software to verify channel communication, perform zero/span calibration if necessary, and ensure correct loop output responses.
🚨 Emergency Shutdown Procedures
🔺 System Trip Integration: In an emergency shutdown event, follow the plant safety instrumented system (SIS) protocol to transition critical field actuators to their predefined safe states (fail-safe open or closed).
🔺 Power Disconnection: If replacing a faulty module during a maintenance window, switch off the rack power supply or isolate the specific channel loop power to prevent electrical arcing or unexpected actuator movement.
🔺 Post-Intervention Check: After resolving an emergency condition, thoroughly test all analog output loops to verify that control signals match actual field responses before resuming normal automated production.
🔍 Troubleshooting and Common Issues
⚠️ Issue 1: Output Signal Deviation or Freeze
Troubleshooting Method: Verify that the module is securely seated in the rack backplane. Use a calibrated multimeter to check the loop wiring and terminal block connections for loose wires or high resistance.
⚠️ Issue 2: Module Error LED Active
Troubleshooting Method: Check the system diagnostic logs via the engineering workstation to identify specific error codes. Ensure that internal bus power rails are stable and within the required voltage tolerances.
⚙️ Routine Maintenance and Care
🔹 Periodic Visual Inspection: Conduct routine visual checks monthly to ensure that terminal blocks are tightly secured, wiring harnesses are undamaged, and there is no accumulation of dust or moisture inside the cabinet.
🔹 Environmental Management: Ensure that the control cabinet environment maintains stable ambient temperatures and non-condensing relative humidity to prevent electronic component degradation.
🔹 Diagnostic Log Reviews: Regularly monitor system diagnostic summaries through the control software to track I/O health and identify minor channel communication warnings early.
💡 Frequently Asked Questions Q&A
❓ Q1: Can the DSAO120A module be hot-swapped during live operation?
💬 A1: Depending on the specific system rack configuration and backplane design, hot-swapping may be supported, but it is generally recommended to de-energize the channel or rack to avoid unexpected output fluctuations in safety-critical loops.
❓ Q2: What is the primary function of this module?
💬 A2: It converts digital controller values into accurate analog signals (such as 4-20mA) to control valves, actuators, and other analog field devices.
❓ Q3: How should spare DSAO120A modules be stored?
💬 A3: Store spare units in their original anti-static packaging inside a clean, dry, climate-controlled environment free from corrosive gases, moisture, and heavy vibrations.
