Description

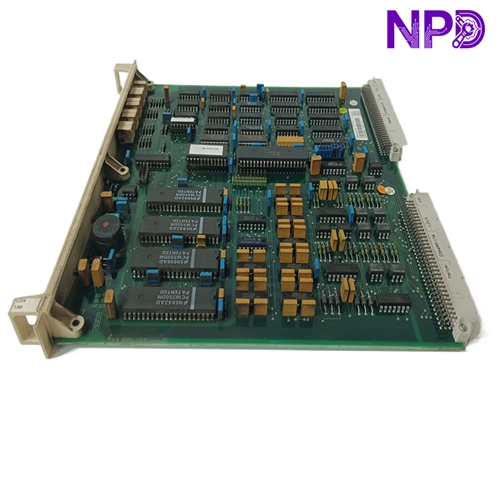

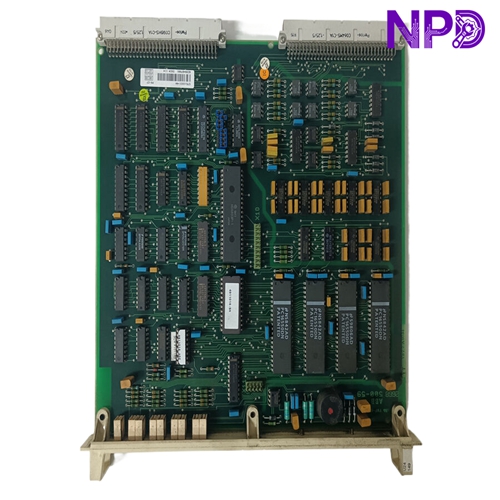

The ABB DSCA114 (Order Code: 57510001-AA) is a high-performance Digital Output (DO) module designed for the ABB S800 I/O system. It is a member of the distributed control system (DCS) family, engineered to provide reliable, high-speed switching for industrial actuators, solenoids, and indicators. The DSCA114 is known for its robust construction, providing essential galvanic isolation and diagnostic capabilities to ensure the integrity of control signals in complex automated processes.
Technical Specifications ⚙️
| Feature | Specification |
|---|---|
| Module Type | Digital Output Module (DO) |
| Series | S800 I/O |
| Part Number | 57510001-AA |
| Number of Channels | 16 Channels |
| Output Type | 24 VDC Source (PNP) |
| Maximum Current | 0.5 A per channel |
| Galvanic Isolation | Yes (Process to logic) |
| Diagnostics | Short-circuit and open-circuit detection |
| Connection Method | Modular terminal units (MTU) |
| Operating Temp | -40°C to +70°C |
Recommended ABB S800 I/O Series Models 📦
If you are expanding your S800 I/O station or require spare parts for maintenance, consider these compatible or complementary modules:
- DI810 (16-channel Digital Input module)
- DO810 (16-channel Digital Output module)
- AI810 (8-channel Analog Input module)
- AO810 (8-channel Analog Output module)
- CI801 (FCI – Field Communication Interface)
- TB806 (Terminal Block for S800 I/O)
- TU810 (Compact Terminal Unit)
- DI830 (16-channel Digital Input, 24V)
- DO814 (16-channel Digital Output, 24V)
- AI845 (8-channel Analog Input, HART compatible)
