1. Product Description
⚙️ The ABB DSDP170 (57160001-ADF) is an industrial automation module associated with ABB’s Advant OCS control systems. It is commonly identified as a pulse counter board used for pulse signal acquisition and counting applications in industrial control environments.
🔧 Depending on the installed system configuration, pulse-counting functions can support speed measurement, event counting, and monitoring of pulse-generating devices. Before replacement, verify the exact board function, input signal characteristics, rack compatibility, and hardware revision against the equipment documentation.

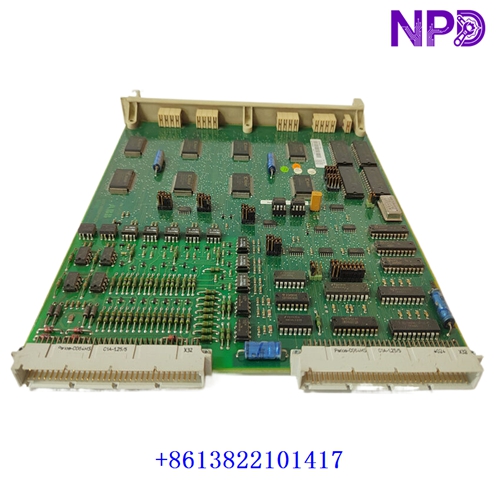

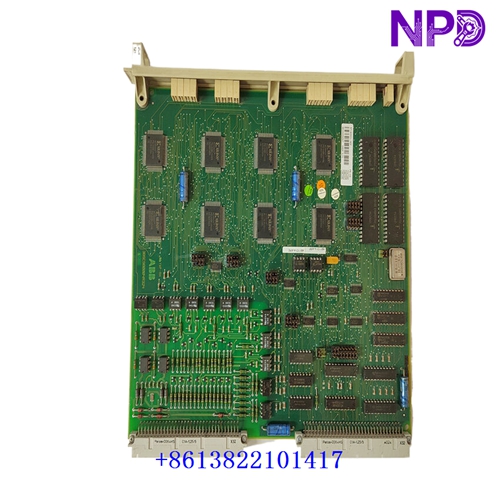

DSDP170 57160001-ADF
2. Product Parameters
📋 Brand: ABB
Model: DSDP170
Order Number: 57160001-ADF
Series: Advant OCS / S100 I/O family; verify exact system
Product Name: Pulse Counter Board
Product Type: Industrial I/O and signal-processing module
Application: Pulse counting and industrial signal monitoring
Place of Manufacture: To be confirmed
Product Status: Confirm actual stock condition
Dimensions: Verify against manufacturer drawings
Weight: Verify against the product datasheet
Country of Origin: Check product nameplate
Power Requirements: Refer to the applicable system hardware specifications
Input Characteristics: Verify supported pulse levels and frequency range
Discontinued: Current lifecycle status not confirmed
3. Recommended ABB Models
🔩 1. ABB DSDP150 — Pulse counter board family; verify exact function.
2. ABB DSDP170 — Target model for sourcing and comparison.
3. ABB DSDP180 — Related pulse-processing model; verify compatibility.
4. ABB DSDI110 — Digital input module.
5. ABB DSDO110 — Digital output module.
6. ABB DSAI130 — Analog input module.
7. ABB DSAO110 — Analog output module.
8. ABB DSBC176 — S100 I/O bus extender board.
9. ABB DSBC174 — S100 I/O bus extender board.
10. ABB DSTC176 — Bus termination unit for compatible systems.
11. ABB DSAX110 — S100 I/O module.
12. ABB DSAX452 — S100 I/O module.
13. ABB PM511 — Controller module for applicable Advant systems.
14. ABB CI854A — PROFIBUS-DP communication interface.
15. ABB PM861AK01 — AC 800M controller.
⚠️ The listed models are related ABB automation products, not guaranteed direct replacements. Confirm the exact DSDP170 specifications and compatibility with the existing controller and I/O system before ordering.
