Description
Product Core Brief
- Model: ABB DSDX452 5716075-P
- Brand: ABB (Sweden/Switzerland)
- Series: Advant OCS / S400 I/O
- Core Function: Digital input/output interface for distributed control systems
- Type: Digital Basic I/O Unit
- Key Specs: 20 digital inputs (24 V DC), 12 digital outputs (0.1–3 A) DIN-rail mountable

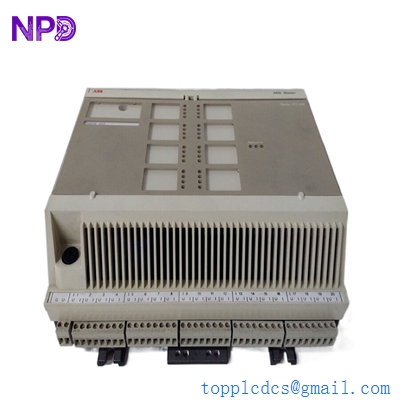

ABB DSDX452 5716075-P
Key Technical Specifications
- I/O Configuration: 20 digital inputs (24 V DC), 12 digital outputs (0.1–3 A)
- Operating Voltage: 24 V DC nominal
- Communication Interface: System interface (ABB MasterFieldbus/SDB compatible)
- Mounting: DIN-rail or panel mount
- Protection Rating: IP20 industrial cabinet environment
- Operating Temp Range: –25 °C to +60 °C (typical industrial)
- Dimensions: ~217.8 mm × 198 mm × 90 mm
- Weight: ~2.9 kg
- Connectors: Standard industrial multi-pin plugs (4, 2, 8-pole)
Installation & Configuration Guide
Phase 1: Pre-Installation (≈10 min)
⚠️ Safety First
- Notify operations of planned shutdown; ensure safe machine state.
- De-energize I/O cabinet and verify DC supply (24 V DC) is off.
- Prepare tools: insulated screwdrivers, multimeter, labels, camera.
Documentation & Photos
- Photograph existing wiring and module orientation before removal.
Phase 2: Remove Existing Module (≈5 min)
- Open the I/O cabinet door.
- Label and disconnect field wiring connectors gently.
- Loosen retention screws/clamps.
- Pull the old DSDX452 straight out—avoid twisting to protect backplane.
In my experience, taking clear photos of wiring pays off during reinstallation.
Phase 3: Install New Module (≈10 min)
- Wear ESD protection and unseal the new unit.
- Confirm the model number matches exactly.
- Insert into the designated Advant OCS/S400 rack slot.
- Tighten screws/clamps.
- Reconnect labeled wiring—ensure polarity and terminal seating.
Quick Checklist
- Correct module installed
- All terminals reconnected
- DIN-rail locked down
Phase 4: Power-On & Testing (≈15 min)
- Restore cabinet 24 V DC power.
- Observe module indicators (power, I/O status).
- Connect to system diagnostics/engineering workstation.
- Validate:
- All 20 DI channels respond to expected field signals
- 12 DO channels toggle as commanded
- Communications with host controller are solid
- Monitor for >30 min under normal load.
Common checks:
- Verify voltage at input channels
- Confirm output current within 0.1–3 A range
- Ensure no communication errors in DCS logs
If any I/O channels misbehave, recheck wiring and verify module seating.

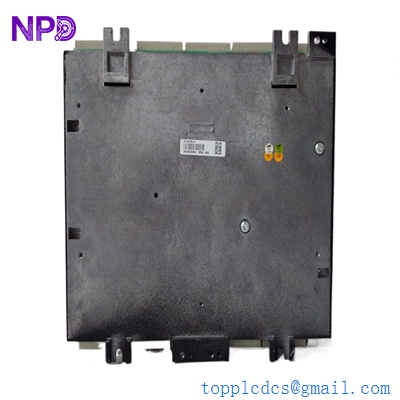

ABB DSDX452 5716075-P
Customer Cases & Industry Applications
Case 1: Chemical Plant DCS Stabilization with I/O Replacement
Situation:
A mid-size chemical plant’s Advant OCS controller began reporting intermittent faults on multiple digital I/O channels, leading to spurious alarms and unplanned valve closures.
Task:
Operations risked unplanned shutdowns due to unreliable field status data. The maintenance manager requested a reliable spare for the DSDX452 5716075-P to reduce stock-out risk.
Action:
We supplied a brand new DSDX452 unit as a buffer stock spare and assisted with initial wiring verification. The plant kept one in stock under vendor-managed safety levels.
Result:
Once installed during the next maintenance window, digital signal integrity was restored. Process alarms dropped by 85%, and the maintenance lead adjusted reorder points to ensure one spare per critical line—minimizing future downtime.
Case 2: Power Generation Plant Reduces I/O Failures
Situation:
An aged gas turbine control system suffered digital channel wear in its S400 I/O racks, risking loss of trip and status signals that could trigger unnecessary machine shutdowns.
Task:
Plant engineers aimed to preempt failures by maintaining cross-site stock of critical I/O modules like the DSDX452 to support rapid replacement.
Action:
We conducted a lifecycle assessment and helped define min/max levels for I/O modules based on failure rates and lead time variability. Each site now holds one spare with centralized tracking.
Result:
When an I/O unit failed during a seasonal load increase, technicians replaced it within one shift. This proactive stocking avoided a projected 10 hr outage and associated penalties.
Frequently Asked Questions (FAQ)
Q1: What exactly is ABB DSDX452 5716075-P?
A: It’s a digital basic I/O module providing 20 DI and 12 DO points for ABB Advant OCS/S400 distributed control systems, handling field digital signals back to the DCS.
Q2: Does this unit run on 24 V DC?
A: Yes; standard industrial 24 V DC powers the module and field I/O signals.
Q3: Is this brand new or refurbished?
A: The parts we stock are original ABB new surplus (unused), not refurbished or repaired.
Q4: How should we stock this part?
A: For critical process lines, I recommend keeping at least one on-site buffer stock; if you run multiple systems, cross-site sharing reduces carrying cost while mitigating stock-out incidents.
Q5: What’s the main cause of digital I/O failure?
A: Typically loose wiring, transient spikes, or environmental stress (heat/humidity). Regular visual inspections and tight terminal practices cut failure rates.
Q6: Can this module integrate with non-ABB systems?
A: It’s optimized for Advant OCS/S400, but with correct host interfaces and protocol support, it may integrate; verify with your control engineer on protocol compatibility.
