Description
The ABB DSDX452 5716075-P is a high-reliability digital basic remote input/output unit designed for the ABB S400 I/O platform. It is widely utilized in the Advant OCS with Master software automation architecture to provide seamless field signal integration. Featuring a compact and durable form factor, this basic unit serves as a critical interface for translating field signals into data that can be efficiently processed by process station controllers.
Product Specifications
Product Name: DSDX452 Digital Basic I/O Unit
Part Number: 5716075-P
Manufacturer: ABB (Asea Brown Boveri)
Product Series: S400 Remote I/O
Digital Inputs: 20 Channels (24 V DC)
Digital Outputs: 12 Channels (Relay Contacts, 24V – 240V AC/DC)
Communication Bus: MasterFieldbus SDB
Customs Tariff Code: 85389099
Dimensions: Standard S400 Enclosure Size (Approx. 250 mm x 140 mm x 115 mm)
Weight: Approximately 2.65 kg
Country of Origin: Sweden

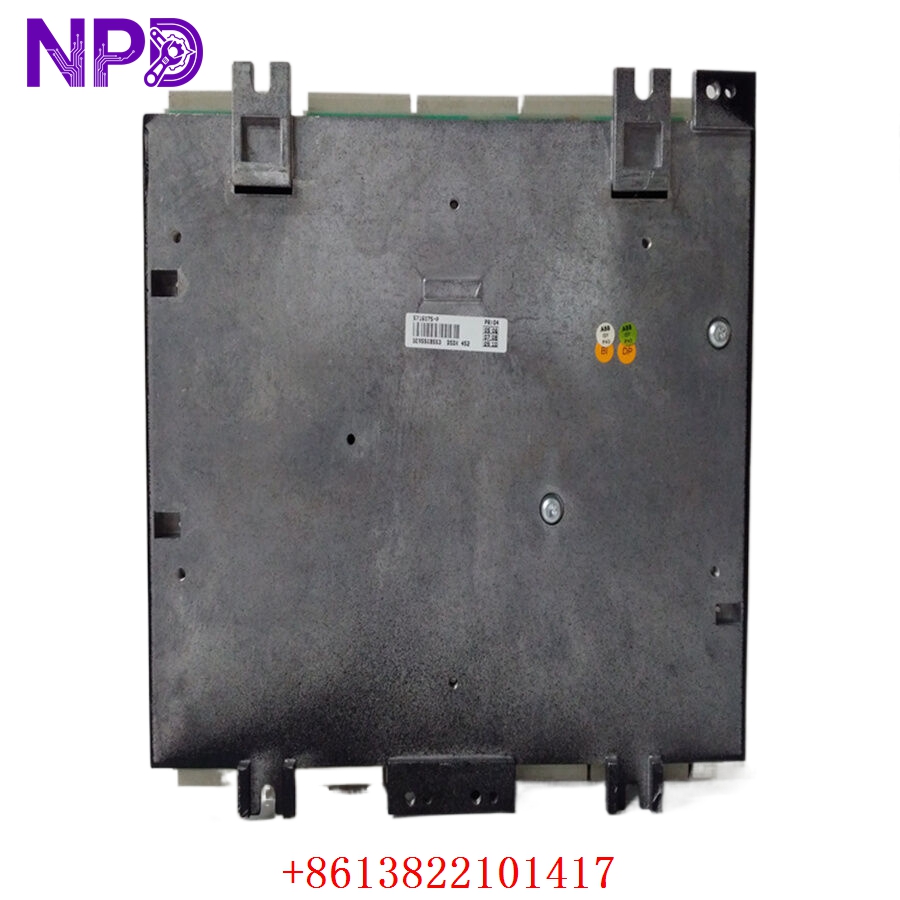

ABB DSDX452 5716075-P

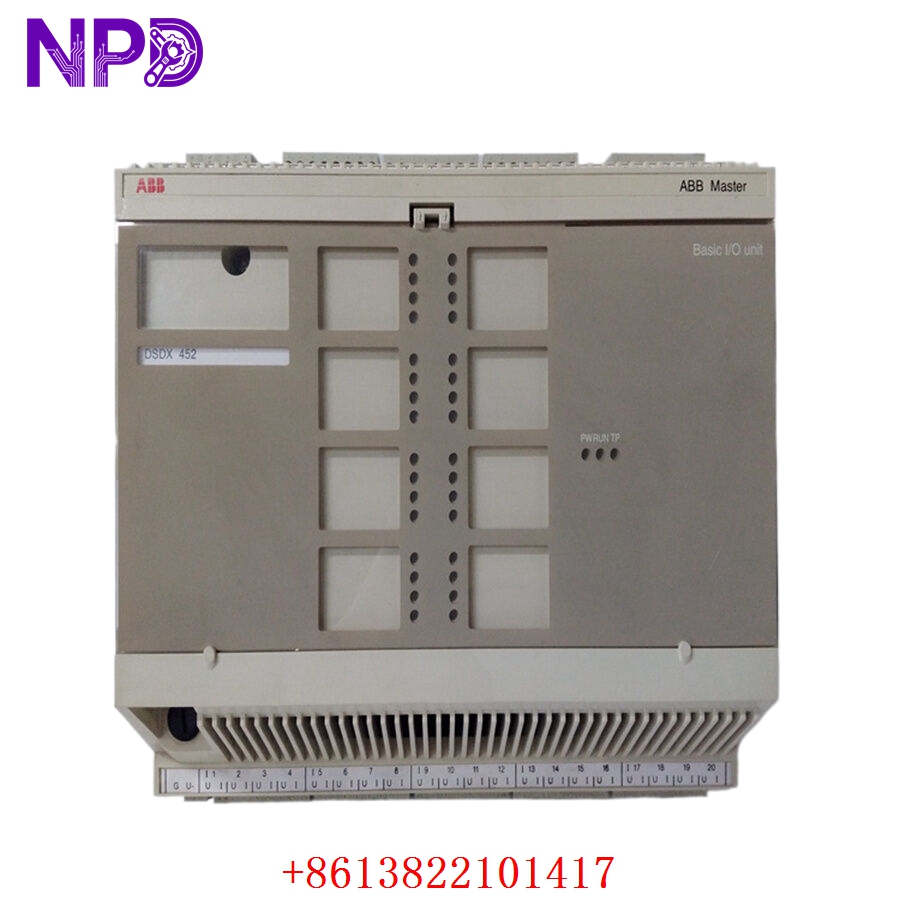

ABB DSDX452 5716075-P
ABB DSDX452 5716075-P
Application Areas
The DSDX452 module is engineered for diverse distributed process automation scenarios. Primary application environments include:
- Advant Master Distributed Control Systems (DCS)
- Power plant control networks and electrical substation monitoring
- Water purification and wastewater treatment automation
- Chemical processing plants and petrochemical distribution hubs
- Factory manufacturing lines requiring remote signal expansion
Product Operation Instructions
- Mounting and Safety: Isolate all electrical power from the cabinet or distribution rack before installation. Securely mount the DSDX452 unit onto its designated terminal base or DIN rail assembly inside the enclosure.
- Fieldbus Connection: Connect the incoming MasterFieldbus SDB communication lines to the designated network ports to establish a secure data path back to the master process station.
- Field Wiring: Wire the 20 digital inputs and 12 relay outputs to the field devices according to the plant loop diagrams. Ensure the 24 V DC input supply polarity is correct and output load limits are observed.
- Testing and System Boot: Power up the unit to run its integrated self-test cycle. Verify the status indicators (Operation, Power Supply, and Channel LEDs) to confirm active communication and error-free operation.
Frequently Asked Questions (Q&A)
Q: What is the exact channel capacity of the ABB DSDX452 5716075-P?
A: This module features a fixed configuration of 20 digital inputs designed for 24 V DC signals and 12 digital relay outputs.
Q: Can the I/O capacity of this basic unit be expanded further?
A: Yes, the DSDX452 digital basic unit can be expanded locally by connecting expansion hardware, such as the DSDX 451 or DSDI 451 units.
Q: What network protocol does this module use to talk to the main controller?
A: It communicates over the ABB proprietary MasterFieldbus SDB protocol, which connects remote S400 I/O blocks to parent Advant Master stations.
Q: Are the relay outputs on this module isolated?
A: Yes, the 12 digital output channels utilize completely separated relay contacts, supporting flexible load distribution across voltages ranging from 24 V up to 240 V AC/DC.
Q: What system diagnostics are performed automatically by the module?
A: The DSDX452 continuously monitors for input power loss, communication timeout over the fieldbus, and executes an independent self-test sequence immediately upon power initialization.
