ABB DSPC454 57310303-F3 | Processor Module for Advant Controller

Description

• Model: DSPC454 (57310303-F3)
• Brand: ABB (Sweden)
• Series: Advant OCS (Open Control System) / AC 400 Series
• Core Function: High-speed processor module for process control and logic execution
• Product Type: Central Processing Unit (CPU) Module
• Key Specs: 16 MHz Clock Speed | Advant Fieldbus support | Redundancy compatible

• Processor Type: 32-bit Motorolla (68k family architecture)
• Clock Frequency: 16 MHz
• Memory Management: On-board RAM and EPROM support
• Communication Interface: Backplane connection to AF 100 (Advant Fieldbus)
• Redundancy Support: Dual-unit hot standby capability
• Power Supply: +5 V DC from subrack (approx. 2.5 A)
• Front Panel Indicators: Run (Green), Fault (Red), Battery (Yellow)
• Operating Temperature: 0 to +55 °C (+32 to +131 °F)
• Storage Temperature: -40 to +70 °C (-40 to +158 °F)

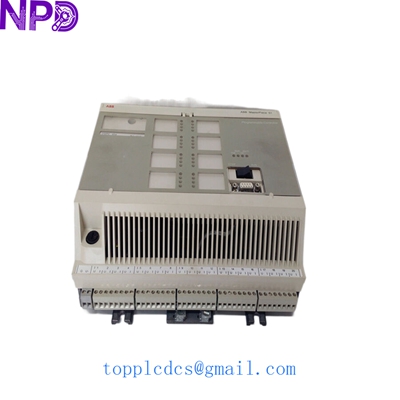

ABB DSPC454 57310303-F3

Application Scenarios & Pain Points

The DSPC454 is the workhorse of the legacy ABB Advant Controller 410 and 450 systems. Even though these systems have been around for decades, they still control some of the world’s most critical infrastructure in the pulp and paper, metallurgy, and power sectors. In my experience, the biggest pain point with the 57310303-F3 is the aging of the internal electrolytic capacitors and the backup battery circuitry. When a DSPC454 fails, it usually takes down the entire controller rack, leading to a “Total Process Loss” scenario. Because these modules are no longer in active production by ABB, having a pre-tested, “New Surplus” spare is the only way to avoid an unplanned and extremely expensive system-wide upgrade to 800xA.

Typical Application Scenarios:

1. Pulp & Paper Mills: Managing complex paper machine logic and wet-end chemical additive control.
2. Steel Production: Controlling blast furnace temperature regulation and high-speed rolling mill sequences.
3. Power Generation: Serving as the main controller for turbine auxiliaries and boiler feedwater systems.
4. Marine Systems: Distributed control on large vessels for cargo handling and engine room automation.

Case Study: The “Red Light” Shutdown

Background: A large paper mill in the US was running an Advant 450 controller for their Headbox control.

Problem: During a power dip, the primary DSPC454 module failed to reboot, showing a solid “Fault” LED. The redundant partner didn’t take over correctly because its memory hadn’t synchronized in months. The entire paper line stopped, costing the mill roughly $15,000 per hour.

Solution: We supplied a tested 57310303-F3 from our newplcdcs stock. We shipped it via Next Day Air and provided the customer with the specific dip-switch settings for their AC 450 rack.

Result: The module was installed, the application software was re-loaded from the engineer’s station, and the mill was back in production within 24 hours of the initial failure. The client then purchased a second unit to fix their redundancy issue once and for all.

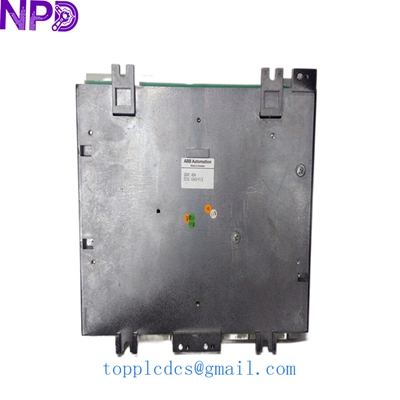

ABB DSPC454 57310303-F3

Troubleshooting Quick Reference

ABB DSPC454 57310303-F3

Technical “Pro-Tips” (Avoiding Common Pitfalls)

Replacing a DSPC454 requires more than just sliding a new card in. Here is what I always tell our site engineers:

1. Backup Your RAM: The DSPC454 relies on volatile RAM for the runtime application. If your backup battery is dead and you pull the module, you will lose the program. Always perform a “Save” or “Dump” of the current application from the Advant Station before swapping.
2. The Daughterboard Trap: Many 57310303-F3 modules are used in conjunction with DSPF or DSPC daughterboards for memory expansion. If your old module has a smaller green board screwed onto it, you must transfer that board to the new 57310303-F3 or it won’t have the memory capacity to run your code.
3. Slot Logic: In an AC 450, the processor position matters for redundancy. Ensure the new module is seated firmly; if the “Run” light doesn’t come on, it’s often a sign that the module isn’t fully mated with the backplane connectors.

❗ Warning: Static electricity is a killer for these older 32-bit processors. Always use an ESD strap. I’ve seen $5,000 modules turned into bricks just by someone touching the gold pins with bare fingers in a dry room.
