Description

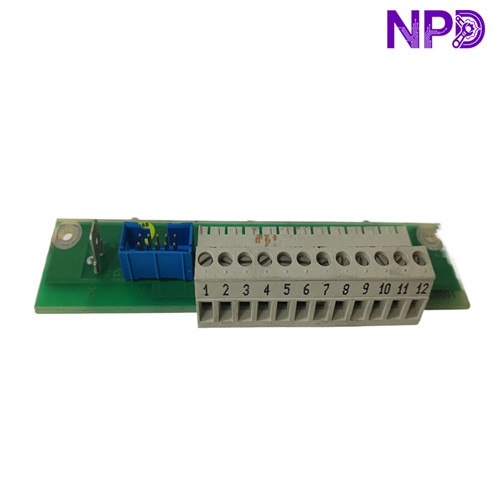

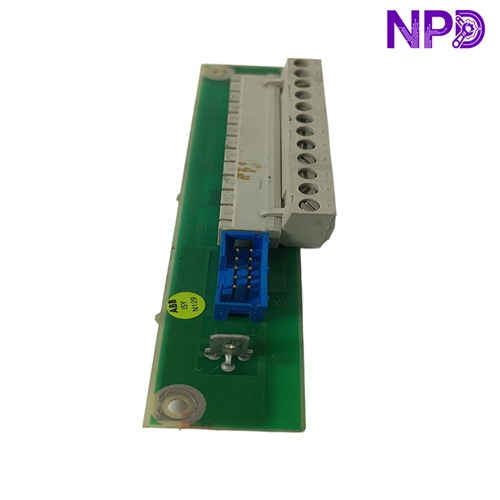

The ABB DSTC175 (Part Number 57310001-KN) is a high-performance Termination Unit designed for the Advant Controller 400 (AC400) series and S100 I/O system. This unit acts as a crucial interface between field-level wiring and the internal controller electronics. It ensures secure electrical connections, provides necessary signal conditioning, and facilitates efficient maintenance by allowing field cables to be terminated reliably without impacting the integrity of the backplane modules.
Key Technical Specifications
- Module Function: Field termination unit for S100 I/O signals
- Connectivity: Provides direct physical interface for field-side process cabling
- Compatibility: Specifically designed for integration with Advant Controller AC400 S100 I/O modules
- Signal Handling: Supports the distribution of analog and digital signals to the corresponding I/O modules
- Wiring Design: Features robust screw-terminal or spring-clamp connections for secure field wire attachment
- Mounting: DIN-rail mounted to ensure a tidy and organized cabinet layout
- Physical Layout: Optimized for space-saving vertical or horizontal installation in control cabinets
- Safety: Integrated features for potential isolation and ground connection point management
- Diagnostics: Facilitates rapid troubleshooting by isolating field faults from controller-side logic
- Environmental Tolerance: Ruggedized construction to withstand standard industrial operating temperatures and vibrations
Related ABB Advant Controller System Recommendations
To maintain a robust and compliant S100 I/O architecture, the following modules are frequently used in conjunction with the DSTC175 termination unit:
- AI810: Analog input module for precision process variable measurement.
- AO810: Analog output module for controlling valves and actuators.
- DI810: Digital input module for binary signal monitoring.
- DO810: Digital output module for relay and actuator control.
- DSBC172: Slave Bus Interface module for external communication.
- PM645: Processor module for executing control strategies in the AC400.
- DSMC112: Memory module for storing controller configuration and programs.
- S100 I/O Cable: Specialized interconnecting cables for linking the termination unit to I/O modules.
- CI520: Communication interface for remote fieldbus connectivity.
- PS561: Power supply module for providing stable voltage to the S100 I/O rack.
