Description

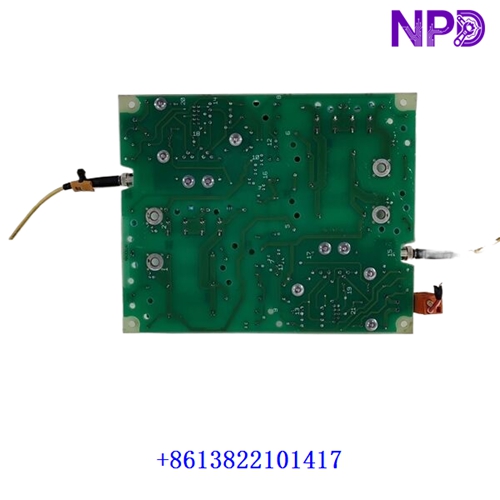

The ABB DYTP123A (Part / Drawing Code: 61430001-TW, often associated with the DYTP 123A assembly series) is a specialized Thyristor Gate Driver / Firing Pulse Board manufactured by ABB for high-power converter systems, static VAR compensators (SVC), excitation power units, and medium-voltage industrial drives (such as MEGAPACK or DCS series systems). Mounted near or directly onto high-power thyristor (SCR) stacks, the board transforms low-voltage control firing commands into high-energy pulse sequences to trigger power semiconductors.
Key Specifications & Identification
| Attribute | Details |
| Manufacturer | ABB |
| Model / Board Code | DYTP123A / DYTP 123A |
| Drawing / Part Number | 61430001-TW |
| Product Category | Thyristor Gate Pulse & Firing Driver Board |
| System Application | High-power converter stacks, generator excitation, static VAR compensators |
| Signal Input | Fiber-optic optical links (for high galvanic isolation) |
| Output Channels | Precision gate-cathode pulse outputs for high-power thyristors / SCRs |

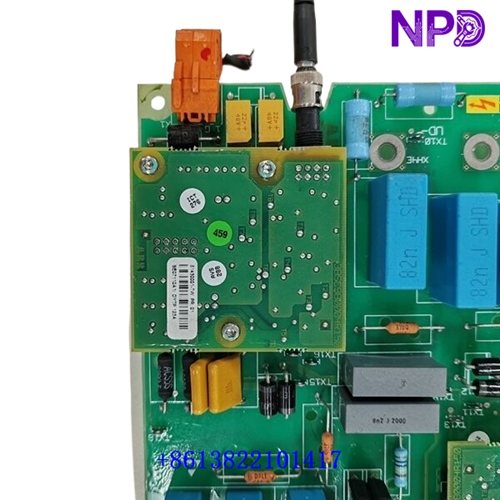

| Form Factor | Open Printed Circuit Board (PCB) with onboard pulse transformers |
Primary System Functions
- High-Galvanic Firing Isolation: Converts optical firing commands received via fiber-optic cables from the main controller (e.g., AC 800PEC or PEC33) into electrical gate pulse signals, isolating control logic from high operating voltages.
- Gate Current Pulse Generation: Delivers sharp, steep-front gate current pulses (di/dt) to ensure simultaneous and reliable firing of high-power thyristor semiconductors under heavy electrical loads.
- Gate-Cathode Protection: Incorporates onboard overvoltage clamping, noise suppression filtering, and reverse gate voltage protection to prevent false triggering from power circuit dv/dt transients.
- Anode-Cathode Voltage / Status Monitoring: Provides feedback circuitry to monitor thyristor conduction status or board health, passing diagnostic signals back to the main control system over optical links.
Servicing & Handling Guidelines
- Lethal Stored Energy & High Voltage: Gate driver boards are directly attached to high-power converter bridges carrying lethal DC/AC voltages. Verify that all power sources are isolated, locked out (LOTO), and main capacitor banks are fully discharged before handling.
- ESD & Cleanroom Controls: Precision gate logic, pulse transformers, and optical receiver transceivers are sensitive to static charge. Wear a grounded anti-static wrist strap during all installation and maintenance operations.
- Fiber Optic Handling: Maintain the recommended minimum bend radius for fiber-optic signal cables. Inspect and clean optical connectors before insertion to avoid signal attenuation and firing misfires.
- Pulse Transformer Inspection: Check onboard pulse transformers and power resistors for signs of thermal discoloration or insulation degradation during routine maintenance overhauls.
