Description
The ABB DYTP600A 61430001-ZY is listed as an ABB industrial automation module. Available product records identify it as an Ethernet Communication Module, although some secondary listings describe it as a processor or temperature-control-related module. Because the exact original ABB system documentation for this part number is not readily available, the communication and electrical specifications below should be treated as reference information rather than guaranteed factory specifications.
🔧 Key Features
• ABB industrial automation module
• Model DYTP600A
• Part number 61430001-ZY
• Ethernet communication capability reported
• Industrial control system application
• Designed for ABB legacy automation equipment

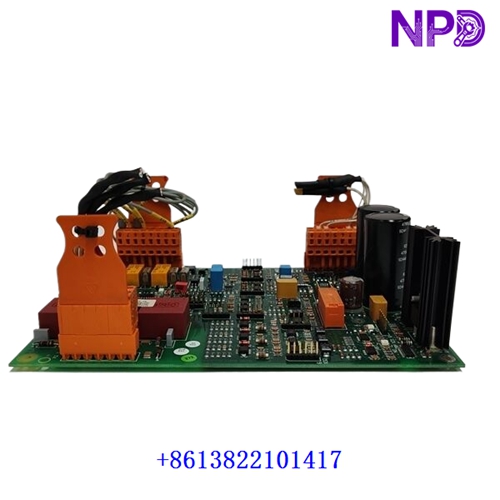

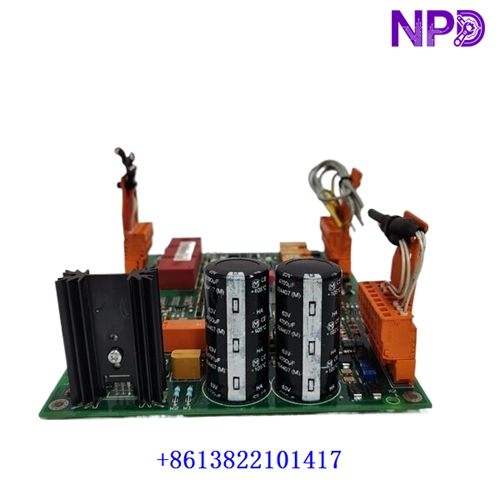

• Compact control-board construction
• Suitable for maintenance and replacement projects
📋 Product Datasheet
• Brand: ABB
• Model: DYTP600A
• Part Number: 61430001-ZY
• Product Type: Ethernet Communication / Control Module*
• Communication: Ethernet, RS-485*
• Protocols: Modbus TCP / Modbus RTU*
• Supply Voltage: 24 VDC*
• Digital Inputs: 8*
• Digital Outputs: 6*
• Analog Inputs: 2*
• Analog Outputs: 2*
• Power Consumption: System dependent
• Operating Temperature: -20 to +60 °C*
• Protection Rating: IP67*
• Dimensions: To be verified from exact hardware revision
• Weight: To be verified
• Country of Origin: Sweden*
🏭 Typical Applications
The module may be encountered in:
• Industrial automation systems
• Process control equipment
• Factory automation
• Motor and drive systems
• Industrial communication networks
• Legacy ABB control installations
• System maintenance and spare-parts replacement
⚡ Functional Description
The available technical listings associate DYTP600A with Ethernet and serial communication interfaces, including RS-485, and report support for Modbus TCP and Modbus RTU. However, these specifications are not confirmed by an ABB primary datasheet in the sources I found.
For an existing ABB installation, the safest approach is to match the module by DYTP600A + 61430001-ZY, hardware revision, connector arrangement, and original cabinet position rather than relying on a generic description.
🔌 Installation & Configuration
• Verify the complete part number 61430001-ZY
• Check the PCB revision and terminal arrangement
• Confirm the original ABB system and rack position
• Record existing wiring before removal
• Verify the 24 VDC supply if applicable
• Connect Ethernet or serial communication as required
• Restore the original configuration
• Power up and check diagnostic indicators
• Verify communication with the host controller
🛠️ Commissioning Checklist
• Confirm module identification
• Check supply voltage
• Verify Ethernet link
• Check RS-485 communication if used
• Confirm Modbus parameters
• Test digital inputs
• Test digital outputs
• Verify analog channels where applicable
• Review system diagnostics
• Perform functional testing before returning the equipment to service
⚠️ Important Identification Note
Search results for ABB DYTP600A 61430001-ZY are inconsistent. One secondary source explicitly calls it an Ethernet Communication Module, while another describes it as a temperature controller. ABB-related listings also show DYTP600A among older ABB industrial control spare parts.
For that reason, I would avoid presenting the I/O counts, IP67 rating, and communication specifications marked with * as factory-confirmed values in a technical sales listing.
📦 Ordering Information
ABB DYTP600A | 61430001-ZY | Ethernet Communication Module | Industrial Automation Control Spare Part
