Description
- Model: EI813F (Order Code: 3BDH000022R1)
- Brand: ABB (Germany)
- Series: AC 800F / Freelance DCS
- Core Function: High-speed Ethernet communication interface for the CPU rack
- Product Type: Communication / Network Interface Module
- Key Specs: 10/100 Mbps | RJ45 Connector | Protocol Support (Modbus TCP, TCP/IP)
- Data Rate: 10/100 Mbit/s (Autosensing)
- Interface Type: 1 x RJ45 (Twisted Pair)
- Transmission Standard: IEEE 802.3
- Max Segment Length: 100 meters (Cat5e or better)
- Processor Compatibility: Fits AC 800F (PM 802F / PM 803F)
- Protocol Support: Freelance System Bus, Modbus TCP (Master/Slave), Send/Receive via UDP
- Diagnostics: Front-panel LEDs for Link, Activity, and Module Status
- Isolation: Galvanically isolated interface
- Power Consumption: 1.5 W (Typical) from the internal bus

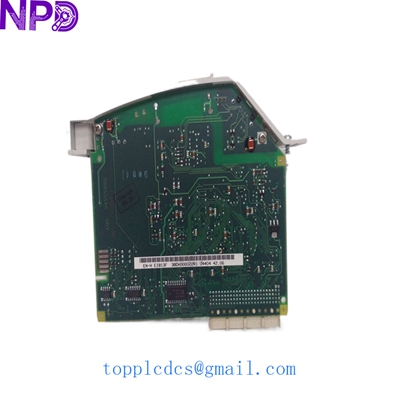

ABB EI813F 3BDH000022R1
Application Scenarios & Pain Points
Engineering Pain Points: In a Freelance DCS environment, the EI813F is the lifeblood of the “System Bus.” The most common integrator headache is IP Address Conflicts and Subnet Mismatch. If the EI813F is not configured correctly in the Freelance Engineering tool (Control Builder F), the controller will appear “offline” even if the Link LED is solid green. Another “trap” is Network Storming; if you connect the EI813F directly to a corporate network without a managed switch or firewall, the multicast traffic from the DCS can be throttled or blocked by IT security policies.
Typical Application Scenarios:
- HMI-to-Controller Communication Providing the high-speed backbone for the DigiVis operator stations to read real-time process data from the AC 800F.
- Controller-to-Controller (Peer-to-Peer) Synchronizing data between multiple AC 800F stations in a large plant (e.g., interlocking a pump in Area A with a tank level in Area B).
- Modbus TCP Integration Acting as a Modbus Master to pull data from third-party devices like Variable Frequency Drives (VFDs) or Power Analyzers.
- OPC Connectivity Serving as the physical path for an OPC Server to access controller variables for high-level ERP or MES reporting.
The “Ghost Disconnection” Case Study
Background: A chemical plant in Europe reported that their AC 800F controller would “vanish” from the HMI screen for 30 seconds every hour, then reappear.
Problem: We checked the EI813F diagnostics. While the module was healthy, the “Activity” LED was almost solid during the outages. We found that a technician had plugged a wireless router into the DCS switch to “monitor the plant from his phone.” The router was broadcasting DHCP requests and discovery packets that overwhelmed the EI813F’s buffer.
Solution: We removed the unauthorized hardware and moved the EI813F connection to a VLAN-protected port on a managed industrial switch.
Result: The communication dropouts stopped immediately. Integrator’s Lesson: The EI813F is a robust industrial card, but it expects a clean, dedicated control network. Don’t mix DCS traffic with general office traffic.

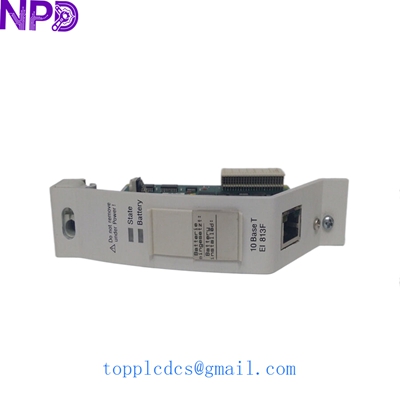

ABB EI813F 3BDH000022R1
Compatible Replacement Models
Original Model Related/Replacement Compatibility Note EI813F EI811F ❌ Incompatible EI811F is for AUI/Thinwire (Coaxial) connections EI813F EI812F ❌ Incompatible EI812F is for Fiber Optic (ST) connections EI813F 3BDH000022R1 ✅ Direct Replace This is the specific 10/100 Mbps RJ45 hardware Integrator’s Tip: If you are migrating from the older EI811F (coax), you will need the EI813F for modern RJ45 infrastructure. Note that while the module is hot-swappable in theory, the Freelance system bus will lose communication during the swap, which may trigger “Comm Fail” alarms on your HMI.

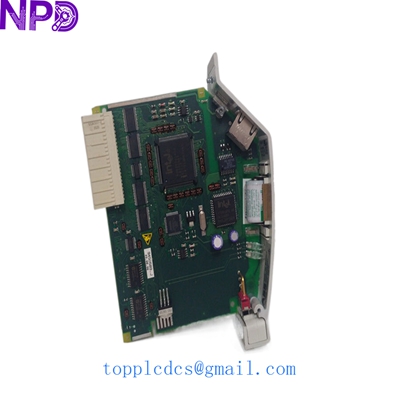

ABB EI813F 3BDH000022R1
Troubleshooting Quick Reference
Symptom Possible Cause Related Part Action “Link” LED Off Cable/Port Failure ❌ External Test the Cat5e cable and the switch port “Activity” LED Off No Data Traffic ⚠️ Medium Check if the IP address is configured in Control Builder F Module “Red” LED Internal Hardware Fault ✅ EI813F Power cycle the AC 800F rack; replace if it stays red Pinging but no DCS Data Subnet/Mask Error ❌ Software Ensure the HMI and EI813F are on the same subnet Field Note: …If you’re replacing this card, make sure you have the Station Address set correctly on the AC 800F CPU’s DIP switches (if applicable) or in the software. The EI813F is just the “pipe”—the CPU tells it what its name and address are.
Strategic Quality Assurance (Our SOP)
- Network Connectivity Test: The module is installed in an AC 800F test rack and “Pinged” continuously for 4 hours to ensure zero packet loss.
- Throughput Validation: We simulate a Modbus TCP Master request to verify the data transfer rate is within the 10/100 Mbps spec.
- Connector Integrity: The RJ45 port is inspected for bent pins or loose shielding—a common cause of intermittent link drops.
- Physical Inspection: Verified for clean edge-connectors and no signs of heat stress on the 3BDH000022R1 PCB.
