Description
Product Specifications
- Origin: Sweden / Germany
- Weight: 0.35 lbs (0.16 kg)
- Dimensions: 4.7 inches x 0.8 inches x 3.2 inches
- Interface Type: 10Base-T/100Base-TX Ethernet port with RJ45 connection.
- Compatibility: Exclusively designed for the AC 800F controller within the Freelance distributed control system (DCS).
- Transmission Rate: Supports auto-negotiation for 10/100 Mbit/s full-duplex and half-duplex communication.
The ABB EI813F 3BDH000022R1 is a high-performance communication module that provides the AC 800F controller with a dedicated gateway to Ethernet-based networks for peer-to-peer data exchange and operator station connectivity. This module is essential for integrating the controller into modern industrial IT infrastructures, enabling rapid synchronization and high-speed diagnostics. Its compact, plug-in design allows it to be mounted directly onto the controller base, where it facilitates reliable TCP/IP or UDP communication protocols while maintaining the deterministic performance required for complex process automation.

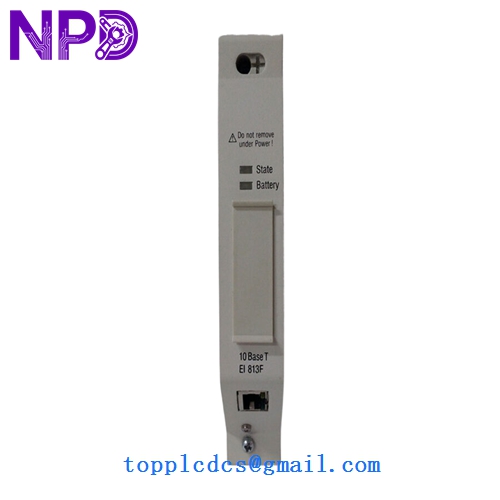

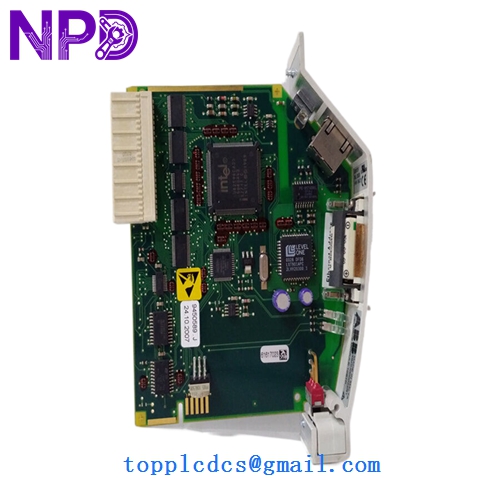

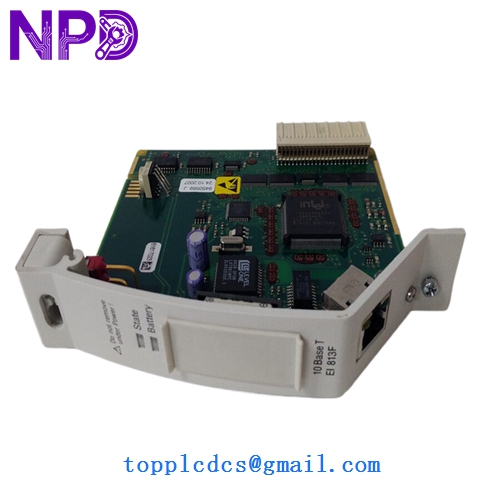

ABB EI813F 3BDH000022R1
ABB EI813F 3BDH000022R1
Model Comparison: EI813F 3BDH000022R1 vs. Similar Models
The EI813F (3BDH000022R1) is the modernized Ethernet interface compared to the older EI811F or EI812F models. While previous versions may have been limited to 10 Mbit/s or specific fiber optic standards, the EI813F offers a standardized RJ45 copper interface with 100 Mbit/s capabilities, providing significantly higher bandwidth for data-intensive applications. Furthermore, the “F” series designation ensures full hardware encryption and improved immunity against electromagnetic interference compared to standard commercial-grade Ethernet cards.
Operational Guidelines
- Installation: Ensure the AC 800F controller is powered down before inserting the EI813F module into its designated slot to prevent electrical surges.
- Network Integrity: Use shielded twisted pair (STP) Category 5e or higher cabling to ensure maximum noise immunity in high-voltage industrial environments.
- IP Configuration: Configure the unique IP address and subnet mask through the Freelance Engineering software (Control Builder F) to establish communication with the wider DCS network.
- LED Diagnostics: Monitor the “LNK” (Link) and “ACT” (Activity) LEDs on the front panel during startup; a steady green link light indicates a successful physical connection to the switch.
