Description
The ABB EL3040 (part of the EasyLine series) is a high-precision continuous gas analyzer designed for industrial applications requiring the simultaneous measurement of multiple gas components. The model number 02402893521100 represents a specific hardware configuration within the EL3000 platform. It utilizes advanced sensor technologies, including NDIR (Non-Dispersive Infrared) and electrochemical sensors, to monitor process gases and emissions. Known for its “EasyLine” philosophy, this unit combines laboratory-grade measurement accuracy with a rugged industrial design, featuring a user-friendly interface and simplified maintenance protocols for 19-inch rack integration.
Technical Specifications and Datasheet
Model Number: EL3040 Configuration Code: 02402893521100 Product Series: EasyLine EL3000 Housing Type: 19-inch Rack Mount (4U) Measured Components: Typically CO, NO, SO2, CO2, O2 (Configuration dependent) Measurement Principle: NDIR (Infrared) and Electrochemical/Paramagnetic (O2) Display: Backlit Graphics LCD Analog Outputs: 4–20 mA (Isolated) Digital I/O: Modbus TCP/IP, RS485, and Digital Contacts Dimensions: 483 mm x 177 mm x 435 mm Weight: 15.0 kg (Approximate, varies by sensor load) Country of Origin: Germany Power Supply: 100–240V AC, 50/60 Hz
Application Fields
The EL3040 is a versatile instrument used extensively in environmental and process monitoring:
- Emission Monitoring: Reporting stack gas concentrations for regulatory compliance (CEMS).
- Combustion Control: Optimizing fuel-to-air ratios in industrial boilers and furnaces.
- Chemical Processing: Monitoring purity and reaction gases in chemical synthesis.
- Landfill & Biogas: Measuring methane and oxygen levels for energy recovery and safety.
- Air Separation: Detecting trace impurities in industrial gas production.

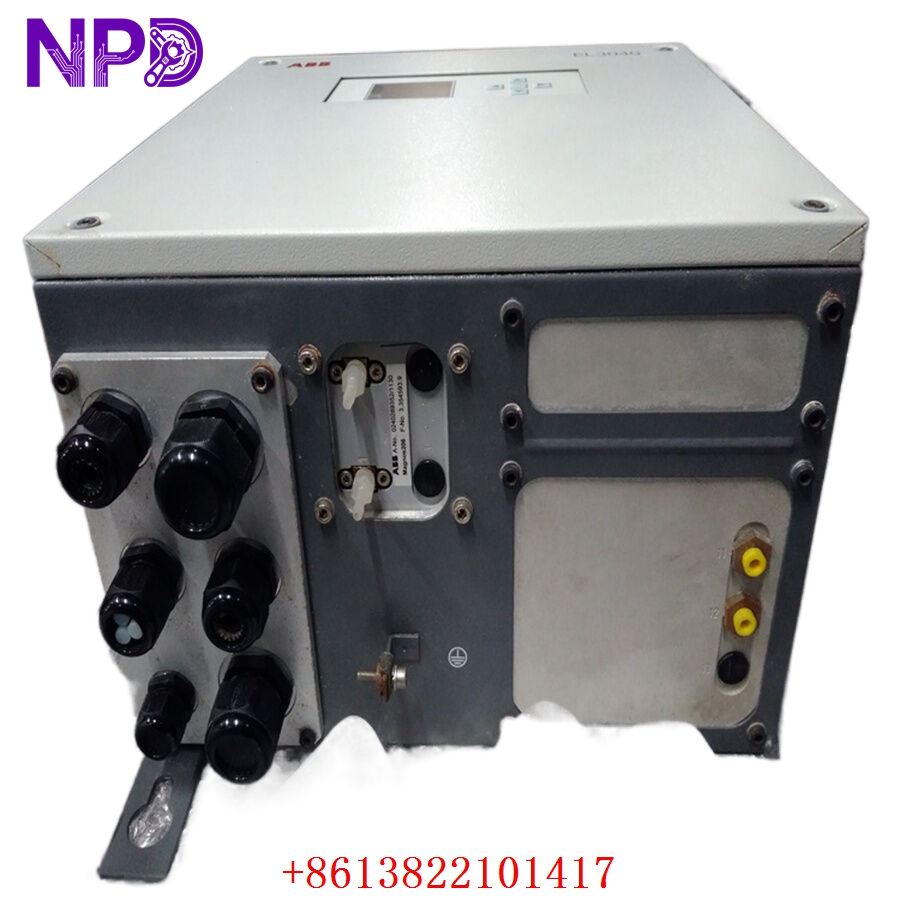

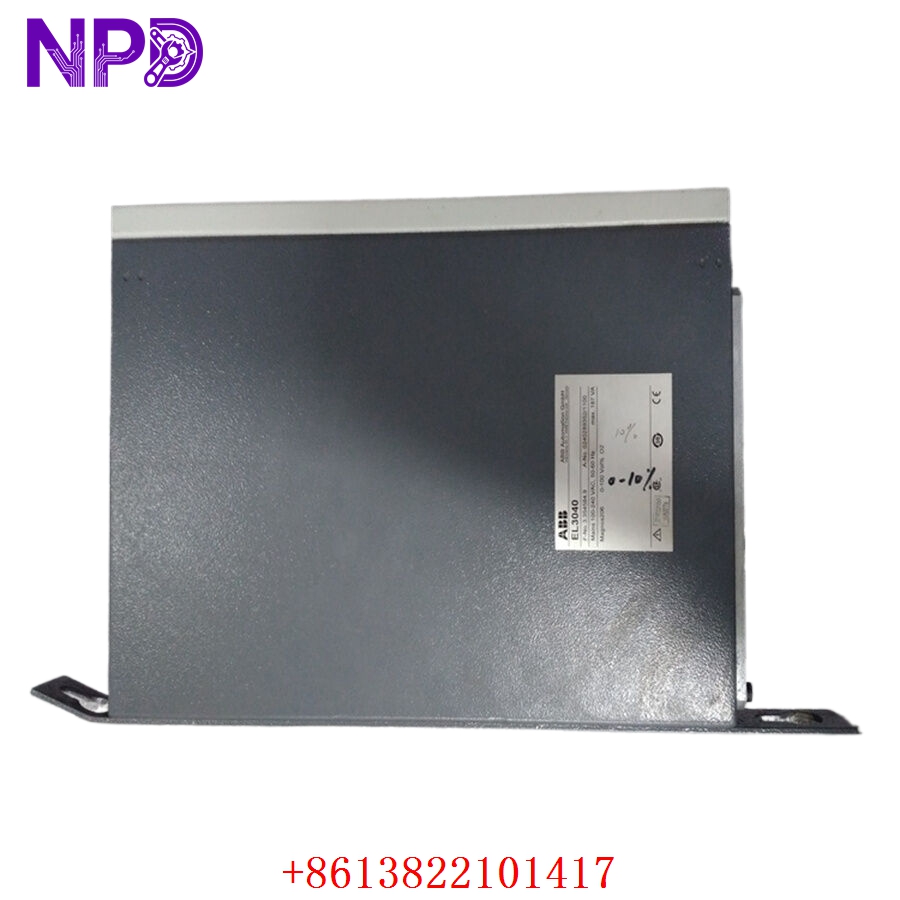

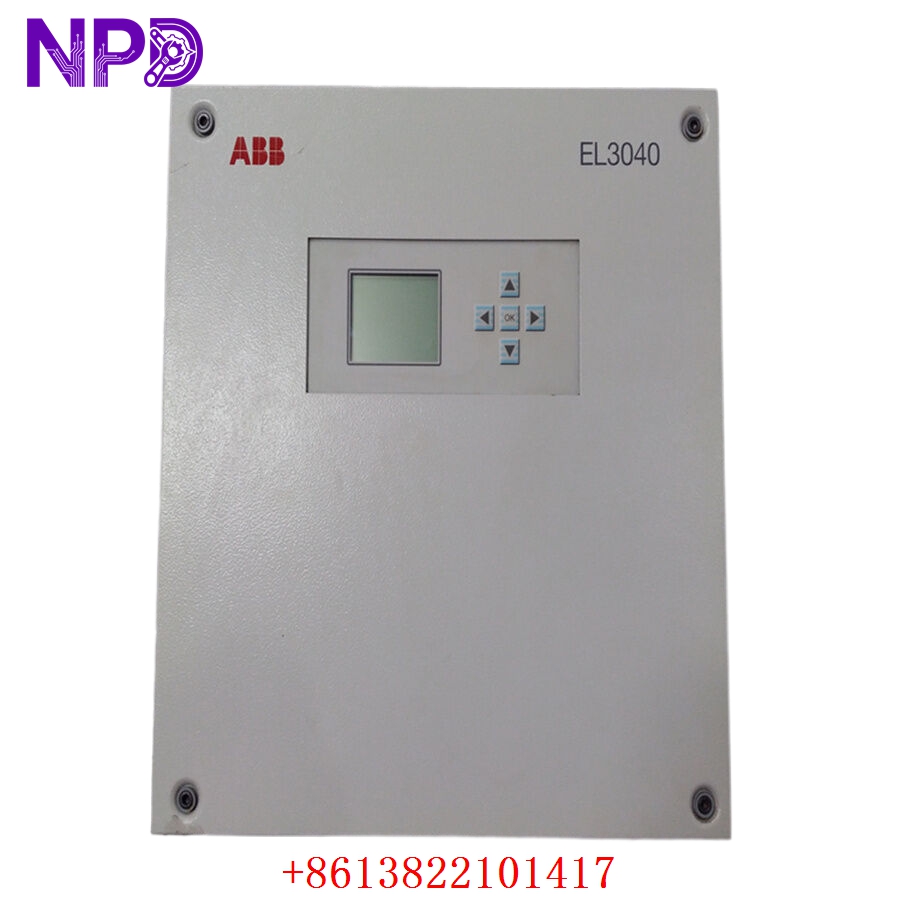

ABB EL3040 02402893521100
ABB EL3040 02402893521100
ABB EL3040 02402893521100
ABB EL3040 02402893521100
Product Instructions and Usage
The EL3040 should be installed in a clean, vibration-free 19-inch rack environment. Ensure the sample gas is properly conditioned; it must be dry, dust-free, and at a stable pressure to prevent damage to the internal optical benches. Connection to the gas path is made via rear-panel fittings (typically 6mm or 1/4″ NPT). Upon power-up, the unit undergoes a warm-up phase (typically 30–60 minutes) to reach thermal stability. Calibration should be performed periodically using certified span gases. The “EasyLine” interface allows for menu-driven configuration without the need for specialized external software for basic setup.
Common Questions and Answers (Q&A)
What gas components can the 02402893521100 measure? The specific components are determined by the internal sensor modules. Common configurations for this series include measuring up to five infrared-active gases plus oxygen.
Does the EL3040 require a sample conditioning system? Yes. The analyzer is not designed to handle raw, hot, or wet flue gas. A probe, heated line, and cooler are generally required to provide a “clean and dry” sample.
How often does the unit need calibration? While the EL3040 features high stability, manual or automated calibration with zero and span gases is typically recommended every 1–3 months depending on local regulations.
Can I integrate this into a DCS system? Absolutely. It supports analog 4-20mA signals for real-time tracking and digital communication via Modbus for advanced diagnostics and remote monitoring.
What is the difference between EL3020 and EL3040? The EL3020 is a compact housing for fewer components, while the EL3040 is the larger 19-inch rack-mount version capable of holding more complex sensor configurations.
