Description
Product Parameters
- Model Number: ENK32 (Part of the UNITROL series)
- Functional Description: Power Supply / Power Distribution Unit
- Input Voltage: Dual 110V/220V AC/DC (Application dependent)
- Output Voltage: Regulated DC outputs for control logic and gate pulsing
- Mounting Type: Rack-integrated or Subrack mounting
- Compatibility: ABB UNITROL 5000 / UNITROL 6000 Excitation Systems
- Country of Origin: Switzerland / Germany
- Weight: 3.31 lbs (1.50 kg)
- Dimensions: 9.2 in x 5.1 in x 4.7 in (23.4 cm x 13.0 cm x 11.9 cm) The ABB ENK32 is a specialized power supply module engineered for high-performance excitation systems, providing the stabilized DC voltages required for control electronics and firing circuits. It is designed to operate within the demanding environment of power plants and industrial generators, ensuring continuous power delivery even during transient grid conditions. This module features built-in monitoring for overvoltage and thermal protection, serving as the foundational power layer for UNITROL controllers to maintain precise generator field excitation and voltage regulation.

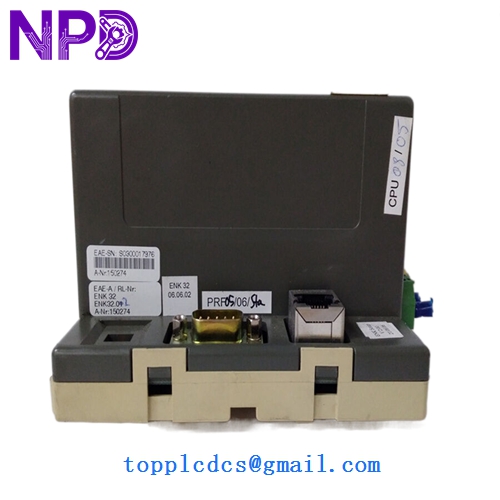

ENK32

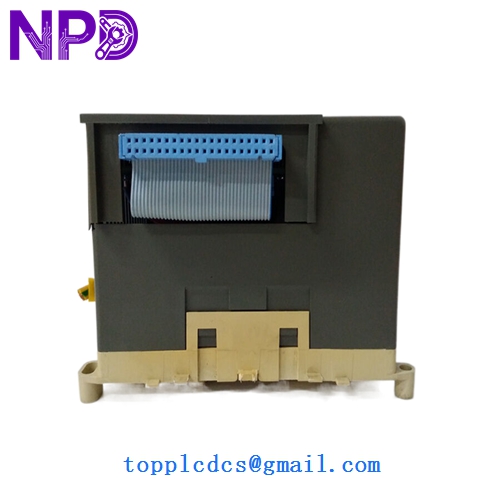

ENK32

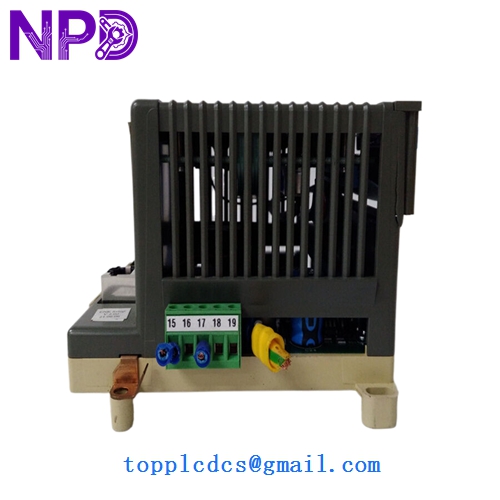

ENK32
Model Comparison
The ENK32 is often compared to the ENK31; while they share the same physical form factor, the ENK32 typically offers a higher output current capacity or updated internal filtering to support larger control configurations. Unlike the newer UNS series power modules which are designed for fully digital, modern AC500-based architectures, the ENK32 maintains the specific analog and digital voltage rails required for legacy and mid-generation UNITROL 5000 systems. It is built with higher-grade electrolytic capacitors compared to standard industrial power supplies to ensure a longer service life in high-heat excitation cabinets.
Operation Tips
- Voltage Selection: Before installation, verify the input voltage jumpers or terminals are correctly configured for your local power source (AC vs. DC input) to prevent internal fuse failure.
- Airflow Management: Ensure the ventilation slots on the module housing are not obstructed, as the ENK32 relies on convective cooling within the subrack to maintain stable voltage output.
- Output Verification: Use the integrated test points on the front panel to verify that the +5V, +15V, and -15V (or relevant system voltages) are within the ±2% tolerance range before connecting the controller.
- Redundancy Check: In systems utilizing redundant power supplies, check the load-sharing status LEDs to ensure the ENK32 is balanced correctly with its partner module
