ABB FC95-22 HESG440295R2 HESG448688R22 Processor Module

Description

• Model: ABB FC95-22 (Global Ordering ID: HESG440295R2 / Circuit Board No: HESG448688R22)
• Brand: ABB (Switzerland)
• Series: Control IT / Advant OCS Series (Commonly utilized in high-performance power plant automation, steam turbine control, and gas turbine excitation systems)
• Core Function: Acts as the high-speed central processing unit (CPU) to execute complex control loops, communication algorithms, and system diagnostics, Brand New Surplus condition
• Type: Main Processor / Controller Module
• Key Specs: 32-Bit processing architecture | High-density onboard flash/RAM | Multiple fieldbus and network interface links

• Processor Unit: High-performance 32-bit embedded industrial microprocessor RISC subsystem
• Memory Architecture: Onboard non-volatile flash memory for application runtime storage alongside high-speed static RAM (SRAM)
• Backplane Interface: Parallel high-density multi-pin bus connection matching ABB rack chassis standards
• Front Communication Ports: Dedicated serial interface ports (RS-232/RS-485 options) for local programming, diagnostics, and operator panel interfacing
• Network Capabilities: Integrated fieldbus controller pathways supporting synchronous data mapping
• Diagnostic Display: Front-panel multi-segment LED status block indicators (Run, Error, Maintenance, Battery Low)
• Backup Battery Power: Integrated SRAM memory backup battery circuit to preserve application program states during cold outages
• Power Demand: Internal +5 V DC and \pm15 V DC power rail tracking from the sub-rack power supply

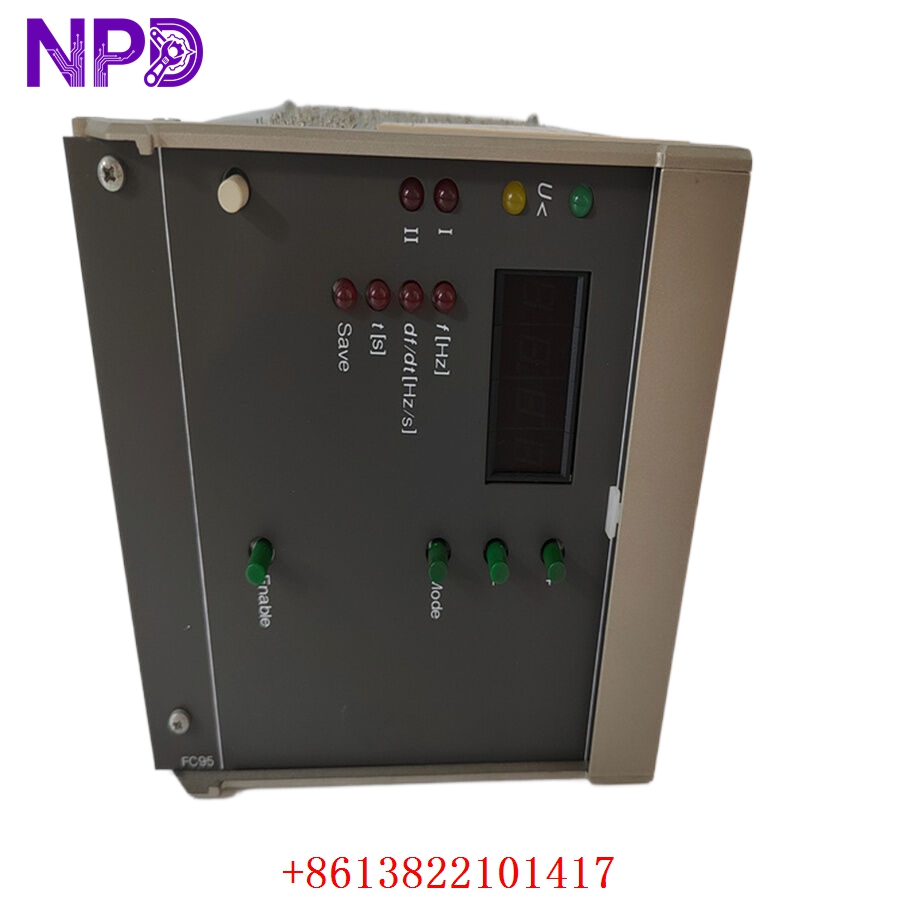

FC95-22 HESG440295R2 HESG448688R22

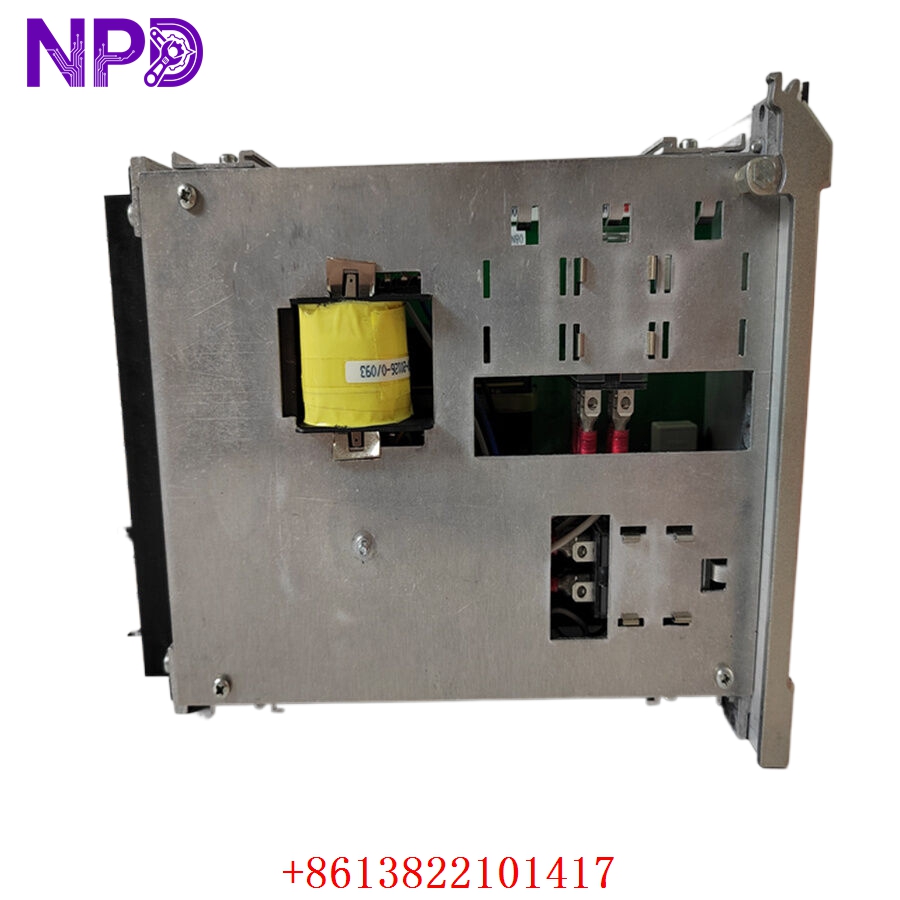

FC95-22 HESG440295R2 HESG448688R22

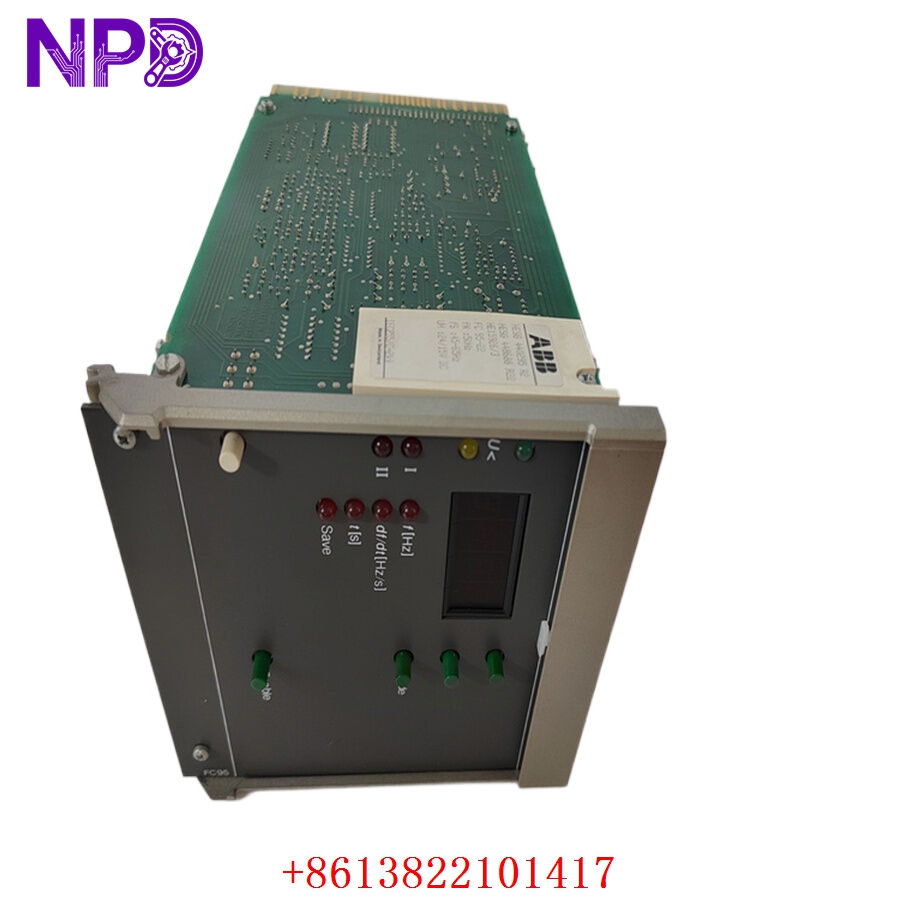

FC95-22 HESG440295R2 HESG448688R22

FC95-22 HESG440295R2 HESG448688R22

Part 4: Installation & Configuration Guide

Phase 1: Pre-Installation (Estimated Time: 25 minutes)

⚠️ Safety First:

1. Coordinate with plant operations to confirm that the specific system loop or processing cell is offline and placed in a safe manual standby or shutdown state. Never pull a main processor module while the industrial process is active and running automatically.
2. Switch off the main power distribution circuit breakers providing electrical service to the target control sub-rack chassis.
3. Apply standard Lockout/Tagout (LOTO) safety locks and diagnostic warning tags to the primary rack power switches.
4. Wait a minimum of 10 minutes to allow all internal capacitive power filtering networks on the sub-rack power rails to drop their residual energy completely.

Tool Preparation:

• Static-dissipative grounding wrist strap linked to a verified grounding point
• Clean, static-safe ESD workspace handling mat
• Phillips screwdriver for securing faceplate structural screws
• Fluke 115 Digital Multimeter
• Marker tags, labeling pens, and a high-resolution camera

Backup Procedures:

• CRITICAL: Before extracting the old module, connect an engineering station laptop to the programming port. Perform a full backup download of the active control program parameters, configuration files, and firmware baseline versions. Save these files to your master site repository. Without this step, you will be installing an empty processor memory blank.

Phase 2: Removal (Estimated Time: 10 minutes)

Steps:

1. Double-check with your multimeter that the power rails and any external serial communication cables connected to the FC95-22 panel read 0 V DC/AC.
2. Unplug any front panel serial connection connectors or network lines, labeling their positions clearly with wire tags.
3. Loosen the top and bottom captive panel screws holding the module’s faceplate to the sub-rack framework.
4. Use the built-in extraction handles (if present) or pull the module straight out along its track lanes to cleanly disconnect the board from the parallel backplane socket connector pins.
5. Guide the processor card smoothly out of the chassis tracks and slide it directly into an ESD shielding bag.

⚠️ Key Notes:

• Look out for any custom battery tracking jumpers or add-on memory expansion mezzanine cards on the old board layout that may need to be handled before storing the part.

Phase 3: Installation (Estimated Time: 20 minutes)

Steps:

1. ESD Protection: Strap on your anti-static wrist guard before breaking the factory seal on the anti-static packaging of the new surplus HESG440295R2 card.
2. Configuration Settings Verification: Carefully inspect the raw base board circuit layer (marked HESG448688R22). You must check all physical hardware jumpers, DIP switches, or rotary address selectors and set them to match your decommissioned card exactly. These dictate system station addressing, communication baud rates, and hardware allocation maps.
3. Battery Activation: If the replacement card features an isolated backup battery jumper, engage the connection pin now to activate the SRAM retention circuit.
4. Chassis Seating: Align the upper and lower edges of the processor circuit board within the designated card guide tracking lanes of the rack slot.
5. Seat Connectors: Slide the card smoothly inward until it contacts the backplane. Press firmly until the rear multi-pin connector seats completely into the backplane socket assembly.
6. Secure Faceplate: Tighten the top and bottom panel screws to lock the card to the rack frame, then re-attach your serial communication lines.

Self-Check Checklist:

• [ ] Internal jumper arrays, DIP address maps, and node IDs match the original card exactly
• [ ] SRAM backup battery connection is enabled and verifying correct voltage
• [ ] Front faceplate mounting screws are screwed down flush with the rack rails
• [ ] All loose tools, wire clips, and stray hardware components are removed from the rack space

Phase 4: Power-On & Program Loading (Estimated Time: 30 minutes)

Pre-Power Checks:

• Check for any low-resistance shorts to ground across the sub-rack power lines using your multimeter. Verify that the auxiliary rack voltages match standard factory specifications.

Power-On Steps:

1. Turn on the primary sub-rack power distribution breaker to energize the system.
2. Observe Initial LED Status: The front panel ERROR or CONFIG lights may illuminate initially while the processor runs its startup diagnostics on an empty memory blank. This is expected.
3. Connect your engineering station laptop to the programming interface port.
4. Open your saved plant system project and upload/restore the master system parameters and runtime control logic files to the new processor board.
5. System Verification: Execute a warm restart or cold initialization command via the software interface as required by your architecture guidelines. The green RUN or OK light should turn solid, and all red fault lights must clear.
6. Verify that communication with neighboring I/O modules and downstream DCS nodes is fully active. Observe the unit under low-load conditions for 15 minutes before re-engaging active safety loops. Record the new serial number in the plant maintenance log.

Part 5: Customer Cases & Industry Applications

Case 1: Emergency Processor Recovery at a Combined Cycle Power Plant

Situation:

A large combined-cycle power station relies on an ABB Control IT system architecture to manage steam turbine governor loops. During a periodic system test, an internal memory parity error caused the main processor module, part number FC95-22, to crash completely. The card refused to reboot, halting the turbine control network and dropping the entire power generation unit offline.

Task:

The plant was losing considerable revenue for every hour the steam turbine sat idle. Because this generation of ABB controllers had been moved out of active factory production, local distribution offices could not supply an immediate replacement, quoting standard emergency lead times of multiple weeks to source or repair legacy cards.

Action:

The plant’s automation manager contacted our global response depot. We verified an un-used surplus FC95-22 HESG440295R2 processor card in our sterile inventory holdings. Our laboratory staff mounted the card onto our internal ABB testing sub-rack, verified its backplane bus communication performance, checked the memory allocation stability, and dispatched the board via priority overnight air express.

Result:

• Downtime Cut Short: The package reached the plant site within 16 hours of the initial fault. The crew duplicated the complex node addressing switch layout and finished mounting the board before noon.
• Full Recovery: The engineering team restored the turbine control program via their laptop configuration tool. The module initialized cleanly on the first try, restoring governor control and enabling the generation unit to safely re-sync with the power grid.
• Customer Voice: “Sourcing an un-used, factory-clean processor module for an older Control IT rack on short notice seemed nearly impossible. Getting it from your stock with verified testing data saved our plant timeline and resolved a major critical incident.”

Case 2: Strategic Spares Allocation for an Industrial Glass Furnace Line

Situation:

An industrial glass manufacturing plant running a high-temperature continuous melting furnace relies on an older ABB configuration to manage furnace thermal zones. The system depends on a legacy FC95-22 module to run high-precision PID loops that stabilize critical temperature boundaries.

Task:

Knowing that a sudden controller failure would stall production and potentially cause cooling glass to solidify inside the furnace infrastructure—resulting in millions of dollars in damages—the reliability team wanted to secure a reliable backup processor. Using refurbished or repaired pull-outs on this critical node was rejected due to safety and reliability concerns.

Action:

The procurement manager contacted us to locate authentic, un-used surplus components. We supplied a matching HESG440295R2 module inside its original, sealed anti-static factory packaging, complete with clean manufacturing numbers, allowing the facility to confirm the pristine condition of the board before adding it to their safety stock.

Result:

• Long-Term Protection: This strategic purchase provided the plant with a reliable, plug-and-play backup component, ensuring they can keep their legacy control systems running smoothly for years to come without requiring an expensive and un-planned full-system upgrade.

Part 6: Frequently Asked Questions (FAQ)

Q1: How do the designations FC95-22, HESG440295R2, and HESG448688R22 correspond to each other?

A: These numbers identify the same physical module across different documentation systems at ABB:

• FC95-22 is the functional type designator and catalog code used in engineering manuals to identify this specific central processor card.
• HESG440295R2 is the official global commercial ordering code used to track this specific assembly version and component layout revision level.
• HESG448688R22 is the base manufacturing number stamped onto the bare green circuit board layer itself before components are populated.

If your old module label shows these numbers, this New Surplus component will drop in as an exact match.

Q2: Why is it vital to verify the internal SRAM backup battery status before putting the new module into service?

A: The FC95-22 relies on an onboard volatile Static RAM (SRAM) block to store runtime parameters, variable registers, and live system log events.

When the main sub-rack power is switched off during maintenance or a power outage, an integrated lithium backup battery provides power to keep this memory active. If you install a replacement board with a disconnected or dead backup battery, the module will lose its application logic as soon as the main power is cycled, requiring a full configuration reload via your engineering station.

Q3: Can I hot-swap the FC95-22 processor card while the rest of the sub-rack is powered and live?

A: No, you should never hot-swap a main system processor card while the rack power is active. Pulling a central processing board while the backplane data bus is energized can cause electrical arcing across the high-density connection pins.

This can corrupt data on adjacent communication lines, damage the internal processing chips, or cause connected safety and I/O modules to enter an unpredictable fault state. Always shut off auxiliary power to the rack chassis before pulling or installing a processor.

Q4: Why buy a New Surplus ABB processor module instead of a cheaper refurbished option online?

A: Refurbished processor cards are typically salvaged from old, decommissioned industrial plants. Third-party repair shops often just clean the outer terminals or replace worn-out faceplate components, leaving old internal memory chips, processing chips, and capacitors intact. These old components are prone to failing unexpectedly when subjected to continuous data transmission.

Our New Surplus units are authentic, un-used modules stored in climate-controlled warehouses. They provide factory-original component lifespans and come backed by a full 12-month warranty, ensuring reliable protection for your machinery without the risks of refurbished hardware.

Q5: How do you verify the functionality of the processor before shipping?

A: Every FC95-22 module goes through a rigorous quality check on our specialized testing benches before leaving our facility. We slide the card into a live matching sub-rack, connect an engineering terminal, and test the full memory range, processing cycles, and communication port speeds.
