Description
The ABB FI830F (Part Number: 3BDH000032R1) is a high-performance Profibus DP Communication Interface module for the Freelance AC 800F distributed control system (DCS). It enables the AC 800F controller to act as a Profibus DP Master, allowing seamless integration with a vast array of decentralized I/O, motor starters, and field devices.
Product Parameters (Datasheet)
- Model Number: FI830F
- Part Number: 3BDH000032R1
- System Compatibility: Freelance AC 800F Controller
- Protocol: Profibus DP-V0 / DP-V1
- Interface Port: 1x 9-pin D-Sub (Female)
- Transmission Rate: 9.6 Kbps up to 12 Mbps (Autodetect)
- Max. Number of Slaves: Up to 125 slaves per line
- Isolation: Galvanic isolation between Profibus and system logic
- Status Indicators: LED diagnostics for Power, Run, Error, and Transmit/Receive
- Mounting: Occupies one I/O slot in the AC 800F backplane

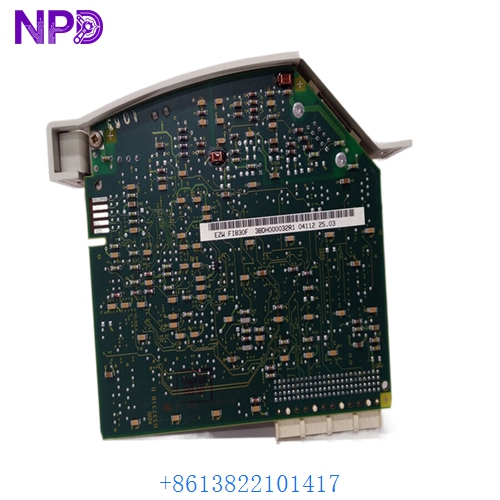

ABB FI830F 3BDH000032R1

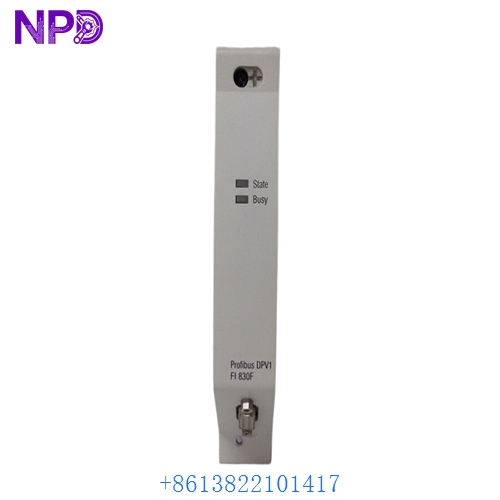

ABB FI830F 3BDH000032R1
ABB FI830F 3BDH000032R1
Country of Origin
The FI830F is engineered and manufactured by ABB in Germany, specifically for the Freelance automation platform.
Application Fields
The FI830F is a versatile interface used for field-level communication:
- Decentralized I/O: Connecting ABB S800, S900, or third-party Profibus I/O stations.
- Motor Control: Interfacing with variable speed drives (VFDs) and intelligent motor starters (e.g., ABB MNS iS).
- Instrumentation: Monitoring pressure, temperature, and flow transmitters that support Profibus DP.
- Factory Automation: Coordinating with specialized machinery controllers and robotic cells.
- Power Distribution: Integrating protection relays and power meters into the DCS.
Product Usage Instructions
- Hardware Installation: Insert the FI830F into an available slot on the AC 800F controller. Ensure the module is properly seated and secured before powering up the unit.
- Bus Connection: Use a standard Profibus cable with a 9-pin D-Sub connector. If the FI830F is at either physical end of the Profibus segment, ensure the termination resistor in the connector is switched to “ON.”
- Baud Rate Setting: The module supports auto-baud detection; however, the bus speed must be defined in the Freelance Engineering master configuration to match the capabilities of all connected slaves.
- Configuration: Use the Control Engineering tool to import GSD files for third-party devices and map the I/O data to the controller’s variables.
- Diagnostic Check: Verify the “Run” LED is green. If the “Error” LED is lit, check for duplicate addresses on the bus or cable faults.
Product Technical Description
Technically, the FI830F is a dedicated communication processor that offloads the Profibus protocol stack from the AC 800F’s main CPU. It supports cyclic data exchange (DP-V0) for fast process values and acyclic data exchange (DP-V1) for device configuration and diagnostics. The module’s support for 12 Mbps ensures minimal latency, which is critical for high-speed motion control or large-scale I/O systems. It also supports the FDT/DTM technology within Freelance, allowing for advanced device management directly from the engineering station.
Q&A (Common Questions)
Q: Can I use two FI830F modules for redundancy? A: Yes. The AC 800F supports redundant Profibus lines. You can install two FI830F modules and configure them as a redundant pair within the Freelance software to ensure continuous communication if one line fails.
Q: Does this module support Profibus PA? A: Not directly. To connect Profibus PA instruments, you must use a DP/PA Link or Coupler between the FI830F and the PA segment.
Q: What is the maximum cable length for a Profibus line? A: This depends on the baud rate. At 1.5 Mbps, the maximum segment length is 200 meters. At 93.75 Kbps, it can extend up to 1,200 meters without repeaters.
Q: Can I hot-swap the FI830F? A: While the hardware is robust, removing a communication module will result in an immediate loss of all associated I/O. It is recommended to only swap modules when the controller is in a safe state or if a redundant partner is active.
Similar Model Recommendations
- ABB FI810F (FBP Fieldbus Plug Interface)
- ABB FI820F (Serial Interface RS-232/RS-485)
- ABB FI840F (Foundation Fieldbus Interface)
- ABB EI813F (Ethernet Interface for AC 800F)
- ABB S800 I/O (Compatible Profibus Remote I/O)
For technical support or to procure the ABB FI830F, please contact our automation specialists.
