Description
The ABB GCD207B101 (3BHE024642R0101) is a critical gate control unit used within ABB’s high-power excitation systems and frequency converters. It is engineered to provide precise switching signals for power semiconductors, ensuring stable voltage regulation and efficient energy conversion in large-scale industrial power applications.
Product Parameters
- Control Type: Gate Drive / Pulse Generation
- System Compatibility: Unitrol 6000 / Megatrol Series
- Input Voltage: 24 VDC (Internal logic)
- Communication: High-speed fiber optic or ribbon cable interface
- Power Dissipation: Low-profile thermal design
- Signal Isolation: Integrated galvanic isolation for high-voltage protection
Product Specifications
- Origin: Switzerland
- Discontinued Status: Active / Limited Production
- Weight: 0.42 kg
- Dimensions: 233 x 160 x 25 mm
- Datasheet: Available upon request

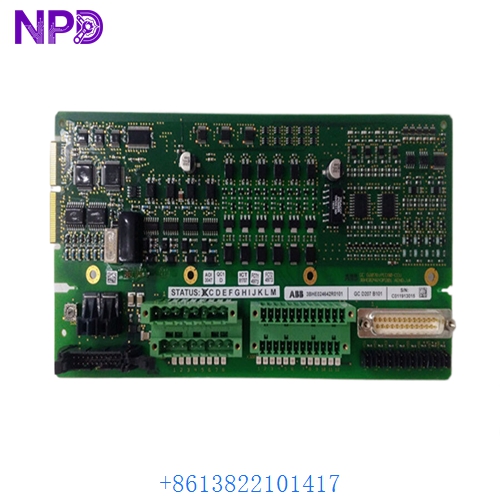

ABB GCD207B101 3BHE024642R0101
ABB GCD207B101 3BHE024642R0101
Application Fields
- Power Plants: Excitation control for synchronous generators.
- Renewable Energy: Control interface for large wind turbine converters.
- Heavy Industry: Motor drive synchronization for mining and steel mills.
- Marine: Propulsion system power management and distribution.
Product Q&A
Q: What is the primary role of the 3BHE024642R0101 in a Unitrol system? A: It acts as the interface between the control logic and the power thyristors, converting low-level signals into high-energy pulses to trigger power components.
Q: Does this board support fiber optic communication? A: Yes, many versions of the GCD series utilize fiber optics to eliminate electromagnetic interference (EMI) in high-voltage environments.
Q: Can this module be repaired if a fault occurs? A: While modular replacement is recommended for uptime, these boards feature diagnostic LEDs to help technicians identify specific circuit failures for troubleshooting.
