Description
Product Specifications
- Origin: Switzerland
- Weight: 0.92 lbs (0.42 kg)
- Dimensions: 9.2 inches x 4.8 inches x 0.9 inches
- Series: ABB UNITROL / PSR (Programmable Software Controller) System
- Function: High-speed signal distribution and logic buffering for excitation and power electronics control.
- Input Voltage: 24 VDC nominal internal logic supply.
- Compatibility: Used specifically in ABB UNITROL 5000 and UNISEAL series excitation systems.
The ABB GD9924BE V2 HIEE401091R0002 is a specialized interface module designed for the precise distribution of control pulses and feedback signals within high-power excitation systems. This version V2 board acts as a bridge between the central processing unit and the power semiconductor stage, ensuring that firing pulses are synchronized with the generator’s phase requirements. Its hardware is optimized for high galvanic isolation and low-latency switching, which is critical for maintaining stable voltage regulation and protecting the sensitive control electronics from the high-voltage transients common in power plant environments.

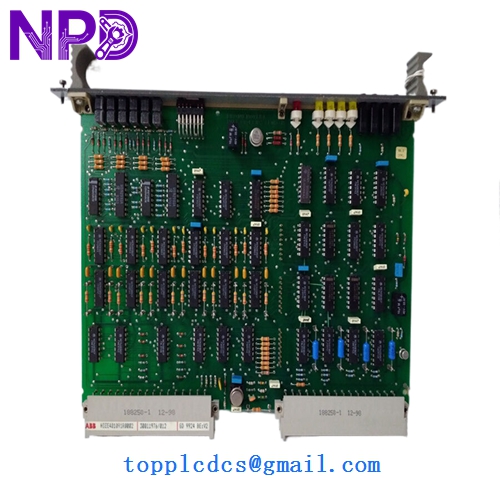

ABB GD9924BE V2 HIEE401091R0002

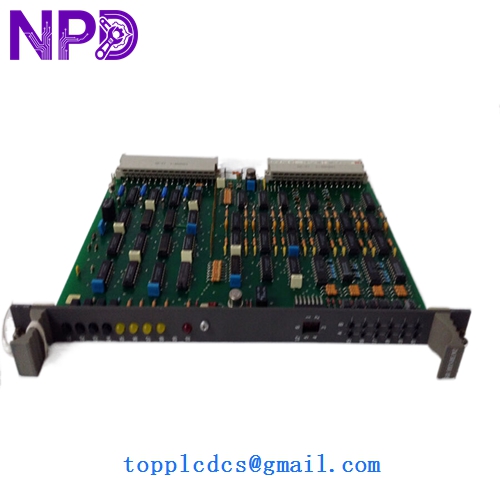

ABB GD9924BE V2 HIEE401091R0002
ABB GD9924BE V2 HIEE401091R0002
Model Comparison: GD9924BE V2 vs. Similar Models
The GD9924BE V2 is an evolved iteration of the original GD9924 series, identified by the specific HIEE401091R0002 part number. The primary distinction of the V2 revision lies in its enhanced component density and improved signal filtering compared to the V1 or base variants. While older versions may share the same physical footprint, the R0002 version incorporates updated surface-mount technology (SMT) components that offer better thermal stability and a higher resistance to electromagnetic interference (EMI). This makes the V2 more reliable for modern “fast-response” excitation requirements than its predecessors.
Operational Guidelines
- Installation Power: Always ensure the excitation system’s primary and control power is fully isolated before inserting or removing the GD9924BE board to avoid damaging the bus connectors.
- ESD Protocol: This module contains sensitive integrated circuits; handle only by the edges of the PCB and use a grounded ESD wrist strap at all times during maintenance.
- Fiber Optic Care: If your specific configuration utilizes the optical ports on the board, ensure the fiber ends are cleaned with isopropyl alcohol and a lint-free wipe before insertion to prevent signal attenuation.
- Mounting Orientation: Ensure the module is securely locked into the PSR subrack; improper seating can lead to “Phase Loss” or “Pulse Failure” alarms in the UNITROL diagnostic software.
