Description
- Model: ABB GDC806A0101
- Part Number: 3BHE028761R0101
- Brand: ABB
- Series: UNITROL 6000 / MEGADRIVE-LCI / ACS6000
- Core Function: Global Drive Control and High-Speed Signal Processing
- Product Type: Digital Control Board (PCB Assembly)
- Key Specs: Multi-processor architecture Fiber optic communication Real-time DSP
- Processor: Dual/Multi-processor RISC/DSP architecture for sub-millisecond control loops
- Communication: Integrated fiber optic ports for interference-free high-speed data transfer
- Input Voltage: Integrated DC/DC conversion from rack power supply
- I/O Interface: High-density backplane connector for synchronization with power modules
- Clock Speed: High-frequency system clock for precise firing pulse generation (Thyristor control)
- Diagnostics: On-board multi-segment LED display and status LEDs
- Memory: Flash-based firmware storage and non-volatile parameter RAM
- Operating Temp: 0°C to +55°C (Forced air cooling required in rack)
- Programming: Configured via ABB Control Builder or specialized drive tools

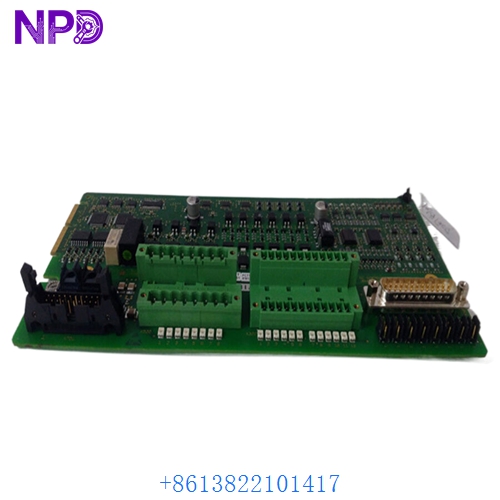

ABB GDC806A0101 3BHE028761R0101

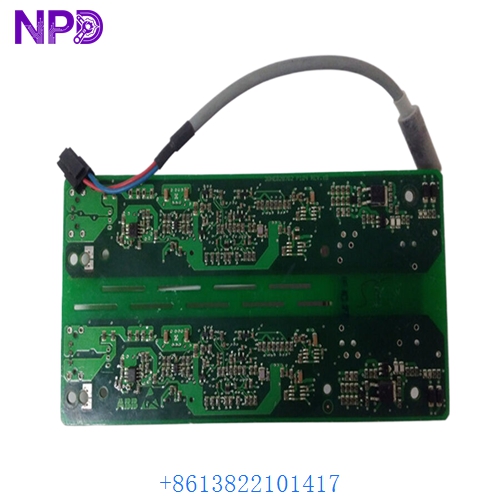

ABB GDC806A0101 3BHE028761R0101
ABB GDC806A0101 3BHE028761R0101
Application Scenarios & Pain Points
In large power plants or industrial pumping stations, the GDC806A0101 is responsible for the precise timing of thyristor firing. If this board drifts or the fiber optic transceivers degrade, you’ll see “Firing Pulse Failures” or “Phase Loss” alarms. The biggest pain point is that these boards are often “black boxes” to site technicians—when they fail, the entire drive or excitation system trips, potentially taking a 500MW generator offline in seconds.
Typical Application Scenarios:
- UNITROL 6000 Static Excitation Systems Managing the field current of large synchronous generators to maintain grid voltage stability.
- MEGADRIVE-LCI (Load Commutated Inverter) Controlling high-power variable speed drives for large compressors or pumps in the Oil & Gas sector.
- ACS6000 Medium Voltage Drives Acting as the central processing unit for multi-megawatt motor control applications.
Case Study: The “Sync Loss” in a Hydroelectric Plant
Background: A hydro plant in Northern Europe was experiencing intermittent “Excitation Trip” alarms. The system would lose synchronization with the grid for no apparent reason during high-load periods.
The Problem: We traced the issue to the 3BHE028761R0101 board. A specific high-speed fiber optic port on the board was losing signal intensity as the cabinet temperature rose, leading to a breakdown in communication between the GDC and the thyristor bridge.
The Solution: We supplied a tested GDC806A0101 from our inventory. Because these boards hold the “Master Logic,” we assisted the client in ensuring the firmware version matched their redundant partner board exactly to prevent “Revision Mismatch” errors during the hot-standby handshake.
The Result: – Resolution: Swapped and synchronized within a 4-hour window.
- Outcome: The generator returned to full load-bearing capacity without further trips.
- Client Feedback: “The board revision was a perfect match for our 3BHE series baseline.”
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Main Difference | Integration Effort |
|---|---|---|---|---|
| GDC806A0101 | GDC806A0102 | ✅ Direct Replace | Minor hardware hardening | Drop-in; verify firmware |
| GDC806A0101 | 3BHE039203R0101 | ⚠️ Software Compatible | Newer generation GDC | Requires firmware migration |
| GDC806A0101 | AC800PEC Series | ❌ Incompatible | Next-gen controller | Requires full system upgrade |
Troubleshooting Quick Reference
| Symptom | Likely Cause | Board Related? | Quick Check | Action |
|---|---|---|---|---|
| “Fiber Optic Link Down” | Failed Transceiver | ✅ High | Check the RX/TX light on the board ports. | If dark, the on-board SFP is dead. Replace board. |
| 7-Segment Display “ERR” | Firmware/Boot Error | ✅ High | Observe the boot sequence code. | Try a cold reboot. If “ERR” persists, Flash is corrupt. |
| Random Drive Trips | Electrolytic Capacitor Aging | ✅ High | Inspect the PCB for bulging capacitors. | Replace board to prevent total failure. |
| “Check Sum Error” | NVRAM Battery/Memory Fault | ✅ High | Check the parameter backup status. | Reload parameters; if it fails again, replace memory card. |
Integrator’s “Field Tips”:
- Fiber Optic Handling: When replacing the GDC806A0101, clean the fiber connectors. 90% of “faulty” boards I receive actually have dust in the optical ports. A single speck of dust can cause a CRC error at these speeds.
- Firmware is King: This board is just a hunk of fiberglass without the right firmware. If you are swapping it into a redundant UNITROL 6000 system, the firmware must match the other board to the last digit. We can pre-load your specific firmware if you provide the version number.
- ESD Safety: These GDC boards contain high-density FPGAs that are extremely sensitive to static. Never touch the backplane pins or the fiber ports without a grounded wrist strap.
