Description
Product Parameters
- Model Number: GDD471A001 (Part Number: 2UBA002322R0001)
- Series: UNITROL 6000 / MEGATROL
- Function: Power Supply / Pulse Amplifier Unit
- Input Voltage: 24V DC (Control Logic) / Variable AC for Power Section
- Output Type: Regulated DC for Field Excitation or Gate Driving
- Cooling: Natural Convection / Heatsink Integrated
- Country of Origin: Switzerland
- Weight: 4.19 lbs (1.90 kg)
- Dimensions: 9.5 in x 5.2 in x 6.1 in (24.1 cm x 13.2 cm x 15.5 cm) The ABB GDD471A001 is a high-performance power supply and signal converter module specifically engineered for the UNITROL 6000 excitation system and MEGATROL power electronics. This unit serves as a critical link in the generator control chain, converting control-level signals into the high-energy pulses required to drive power thyristors or providing stabilized auxiliary power to internal control racks. Its heavy-duty construction and integrated thermal management allow it to function reliably in high-vibration power plant environments, ensuring the constant field excitation necessary for synchronous generator stability.

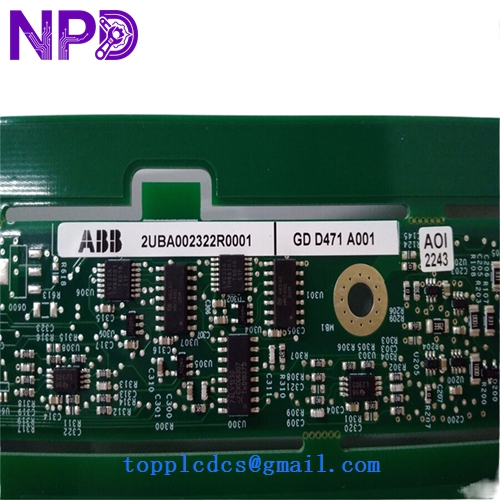

ABB GDD471A001 2UBA002322R0001

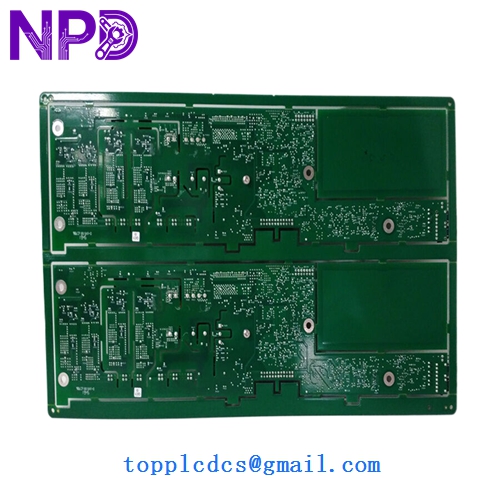

ABB GDD471A001 2UBA002322R0001
ABB GDD471A001 2UBA002322R0001
Model Comparison
The GDD471A001 is often compared to the GDD472 series; while they appear physically similar, the GDD471 is typically configured for standard power distribution, whereas the 472 series may include specialized pulse-width modulation (PWM) logic for higher-precision gate driving. Unlike standard industrial converters, the 2UBA002322R0001 part number specifies a version with high-dielectric isolation ratings, essential for the high-voltage environments of generator excitation cabinets. Compared to legacy UNITROL 5000 modules, this unit features a more modular interface, allowing for faster hot-swap capabilities and improved diagnostic feedback to the central AC800PEC controller.
Operation Tips
- Capacitor Discharge: After powering down the unit, wait at least 5 minutes before handling to allow internal high-capacity capacitors to discharge to safe levels.
- Mounting Orientation: Always mount the unit vertically as specified in the UNITROL manual to ensure the heatsink fins utilize natural convection for proper cooling.
- Check Resistance: Before commissioning, verify the isolation resistance between the power terminals and the chassis to ensure no moisture or dust has compromised the internal insulation during storage.
- Connector Security: Use the integrated locking clips on the multi-pin connectors; loose connections in the excitation loop can lead to intermittent “Loss of Field” alarms or unstable generator voltage output.
