ABB GFD212A 3BHE020356R0101 | Ground Fault Detector

Description

• Model: ABB GFD212A (3BHE020356R0101)
• Brand: ABB (Switzerland)
• Series: UNITROL 6000 / MECOSTA High-Power Excitation
• Core Function: Sensitive ground fault detection for rotor/field circuits
• Product Type: Protection & Monitoring Module
• Key Specs: Dual-level alarm thresholds | 110-220V DC/AC compatible | High isolation

• Operating Voltage: 110 V to 220 V DC/AC (Universal input)
• Detection Principle: Passive and active bridge monitoring
• Response Time: < 100 ms for major faults
• Sensitivity Range: Adjustable from 1 kΩ to 100 kΩ
• Output Contacts: Potential-free changeover contacts (Alarm/Trip)
• Mounting: DIN rail or dedicated subrack (check your frame version)
• Indication: Front-panel LED (Power, Warning, Fault)
• Isolation Rating: 5 kV impulse withstand voltage
• Temperature Class: -25 to +70°C (Storage)
• EMC Compliance: EN 61000-6-2 (Industrial Immunity)

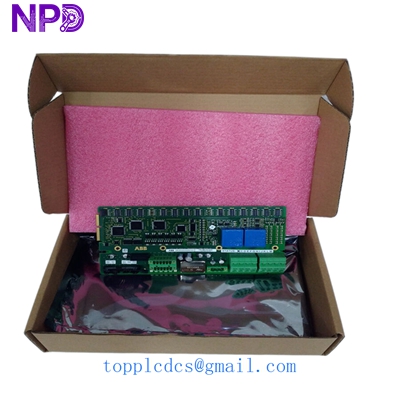

ABB 3BHE020356R0101 GFD212A

Application Scenarios & Pain Points

In large synchronous generators (like those in hydro or thermal power plants), the rotor circuit is technically floating. However, carbon dust from brushes or moisture can create a path to the ground. A single ground fault isn’t immediately catastrophic, but it puts the system at extreme risk: if a second fault occurs, it creates a rotor short-circuit, leading to massive magnetic unbalance and potential catastrophic mechanical failure of the generator shaft.

The GFD212A is the “smoke detector” for your rotor. Its job is to catch that first leakage before it becomes a multi-million dollar repair bill. Because these modules are often part of the UNITROL 6000 excitation suite, a failure of the GFD212A itself can lead to a “Protection Fault” alarm that prevents the generator from synchronizing to the grid.

Typical Application Scenarios:

1. Hydropower Plant Excitation Monitoring the insulation resistance of the rotor windings in large-scale hydro generators.
2. Thermal Power Plant UNITROL Systems Serving as the primary ground-fault protection in UNITROL 6000 high-power excitation cabinets.
3. Large Synchronous Motors Used in heavy industry (steel mills/mining) to protect large motor field circuits from grounding.

The “False Alarm” Nightmare Case Study:

Background: A peak-shaving gas plant in North America was struggling with “Rotor Ground Fault” trips every time the humidity spiked. The operators were convinced the generator rotor was failing.

Problem: After an expensive shutdown and physical inspection of the rotor, no fault was found. The issue was actually the GFD212A module itself. Its internal measurement bridge had drifted due to component aging, causing it to trigger at 80 kΩ instead of the programmed 10 kΩ.

Solution: We supplied a new GFD212A (3BHE020356R0101) from our stock.

Result: The new module provided stable, accurate readings, and the “nuisance trips” stopped immediately.

• Engineer’s Insight: These protection cards live in high-vibration and high-EMC environments. If your insulation readings are jumping wildly but your megger tests are clean, the GFD212A is your primary suspect.

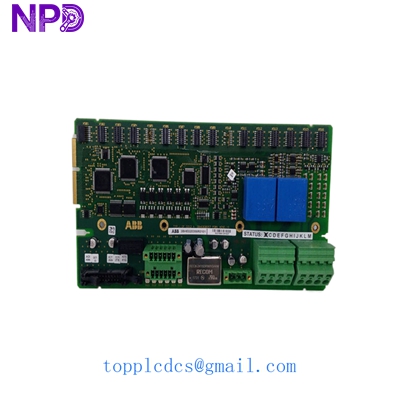

ABB 3BHE020356R0101 GFD212A

Compatible Replacement Models

Engineer’s Note: ABB excitation parts are highly revision-specific. Always check the 3BHE number. If your current card is an R0101, stick with an R0101 to ensure the calibration curves in your Control Builder software don’t need adjustment.

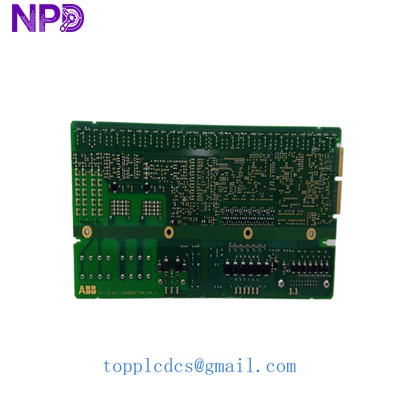

ABB 3BHE020356R0101 GFD212A

Troubleshooting Quick Reference

Technical Pitfalls to Avoid:

• ❗ Redundancy Warning: Many UNITROL systems use redundant GFDs. If you are swapping one out while the machine is running, make sure the “B” channel is tracking correctly before you pull “A”.
• ❗ Terminal 13/14 vs 15/16: Don’t mix up the “Warning” and “Trip” contacts. Wiring a warning to a trip input will cause your generator to fall off the line for a minor insulation dip.
• ❗ Grounding the Shield: Ensure the shield of the measurement cable is grounded at the GFD212A side only to avoid ground loops that skew the measurement.

SOP Quality & Testing Process

Because this is a protection device, “it powers on” isn’t enough. We perform the following:

1. Bridge Accuracy Test: We use a decade resistance box to simulate ground faults from 1 kΩ to 200 kΩ. We verify the GFD212A triggers exactly at the setpoints.
2. Relay Contact Verification: We test the “Warning” and “Trip” relay contacts for zero-ohm closure and clean “open” states.
3. High-Pot Isolation Test: We verify the isolation between the measuring circuit and the power supply to ensure it can handle rotor flyback voltages.
4. Signal Output Validation: If used with an analog output (4-20mA), we verify the scaling matches the resistance curve.
