Description

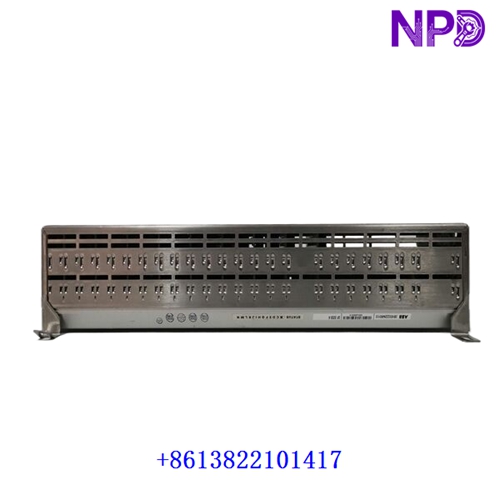

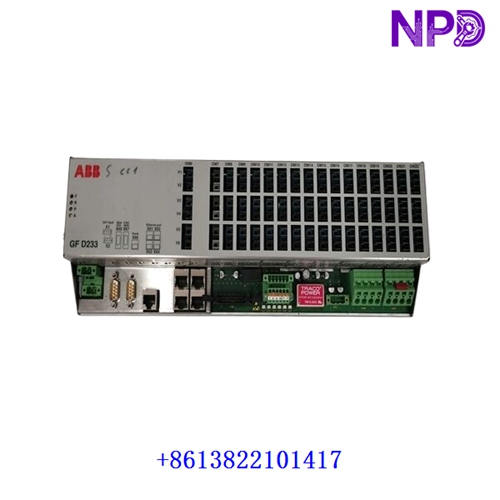

The ABB GFD233A (order code 3BHE022294R0101) is a high-speed Fast Discharge / Ground Fault Protection Module manufactured by ABB. It is used across ABB medium-voltage drives (such as ACS 6000 and ACS 5000), static frequency converters (SFC), MEGATROL, UNITROL 6000 excitation systems, and AC 800PEC power electronics platforms.
The GFD233A module monitors DC-link capacitor energy levels, grid conditions, and ground fault integrity within converter subracks. In emergency stop or trip conditions, it safely triggers high-speed energy discharge circuits to protect power semiconductor assemblies (IGCTs/IGBTs) and maintenance personnel.
Technical Specifications
| Parameter | Specification |
| Manufacturer | ABB (Asea Brown Boveri) |
| Model Designation | GFD233A (GFD 233 A) |
| ABB Article / Order Code | 3BHE022294R0101 |
| Module Type | Fast Discharge & Grid/Fault Detection Board |
| System Compatibility | ABB ACS 6000, ACS 5000, MEGATROL, UNITROL 6000, AC 800PEC |
| Nominal Power Supply | 24 V DC (via subrack power distribution bus) |
| Primary Protection Function | DC-link fast discharge activation, ground fault detection, overvoltage monitoring |
| Signal Interfacing | Optical fiber links / Multi-pin backplane bus header |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Form Factor | Subrack Plug-in Printed Circuit Board Assembly (PCBA) |
Core Features & Operating Capabilities
- Rapid DC-Link Energy Dissipation: Activates fast-discharge resistor circuits to bleed off residual DC-link capacitor voltage quickly during emergency trip sequences or planned drive shutdowns.
- Ground Fault & Insulation Sensing: Detects ground potential shifts and insulation breakdown within converter phase legs before catastrophic flashovers occur.
- Optical Signal Galvanic Isolation: Communicates with central drive controllers (such as AC 800PEC / KUC711AE) over optical fiber connections, eliminating high-voltage noise coupling into control logic.
- Subrack Backplane Integration: Plugs into standard ABB subrack backplanes (such as PBA850), drawing redundant control power and routing trip interlocking signals directly across the backplane bus.
- Continuous Self-Diagnostics: Conducts ongoing hardware checks on voltage rail health, discharge loop continuity, and driver channel integrity, immediately signaling diagnostic trips upon detecting a fault.
Related & Associated ABB Components
- PBA850 (3BHE022293R0101) — Power Electronics Subrack Backplane Assembly.
- KUC711AE (3BHB004661R0001) — Main Processor / Controller Module.
- UFC921A101 (3BHE024855R0101) — Converter Interface Board.
- PPD113 (3BHE023584R2625) — AC 800PEC Central Processing Controller.
