Description

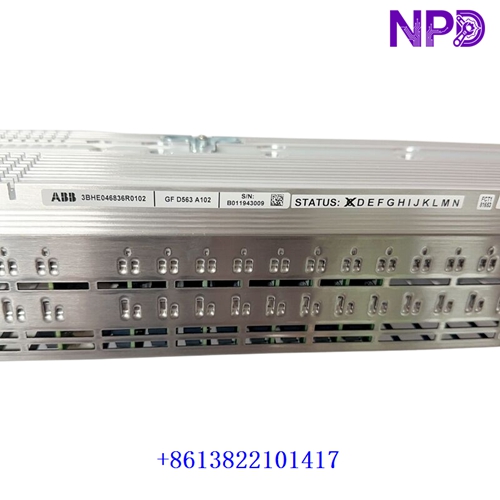

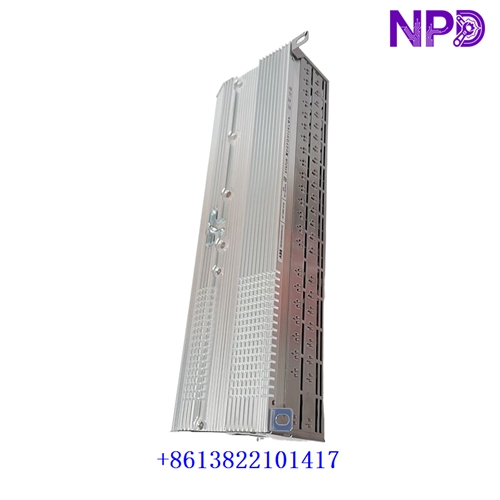

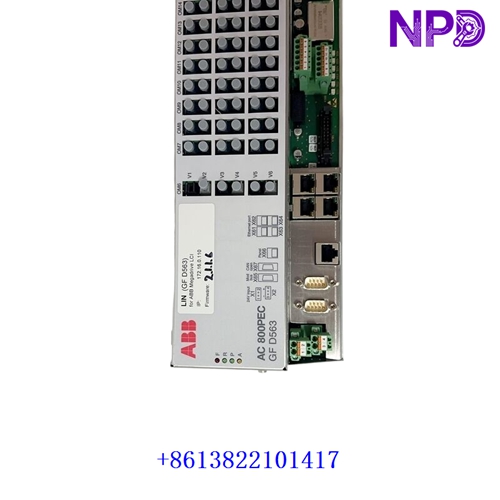

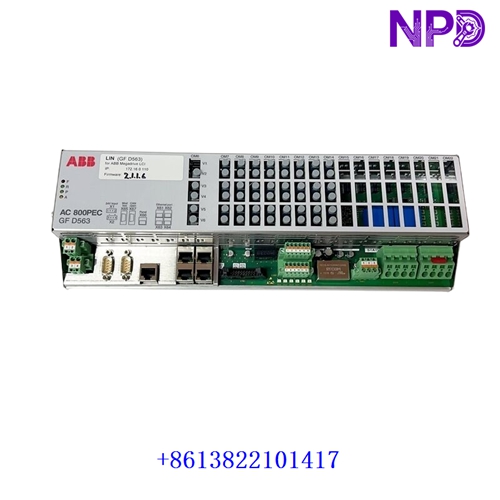

The ABB GFD563A102 (3BHE046836R0102) is a specialized electronic control and gate driver interface module designed for high-performance industrial automation, power electronics, and drive systems. Engineered for demanding industrial environments, this unit ensures precise switching control, rapid signal processing, and reliable communication within large-scale power conversion and control architectures.
Built with robust electrical isolation and advanced signal conditioning, the module delivers high operational reliability and system stability. Its standardized form factor enables seamless integration into ABB control cabinets, supporting critical power management and automation workflows across energy generation, heavy manufacturing, and industrial drive applications.
📊 Product Datasheet & Technical Parameters
- Brand: ABB
- Model: GFD563A102
- Series / Part Number: 3BHE046836R0102
- Product Name: Gate Driver and Control Interface Module
- Place of Manufacture: Sweden / Switzerland (Global ABB Manufacturing Facilities)
- Physical State: Solid-State Printed Circuit Board Assembly
- Dimensions: 160 mm x 110 mm x 45 mm
- Weight: 0.70 kg
- Origin of Materials: Europe / Global Sourced Electronic Components
- Power Rating: 24 VDC internal control logic rail supply
🛠️ Operational Specifications & Usage Methods
Installation of the ABB GFD563A102 module must be conducted by certified technicians in a de-energized, ESD-safe environment. Carefully align the module along the backplane card guides and insert it securely to prevent damage to edge connectors or interface pins.
Maintain operating cabinet temperatures between 0°C and 55°C, ensuring that relative humidity remains below 95% non-condensing. Keep cooling airflow paths around the module free from external cabling or physical obstruction to maintain proper thermal dissipation.
🛑 Emergency Shutdown Procedure
In the event of an electrical emergency, severe system fault, or critical power conversion alarm, execute the primary facility emergency shutdown to remove power from the control rack assembly and associated high-power drives.
Isolate all auxiliary 24 VDC control power supplies feeding the backplane. Allow sufficient time for internal circuitry and capacitors to discharge entirely before attempting physical handling or module extraction.
🔍 Troubleshooting & Common Issues
Common anomalies typically involve communication timeouts, loose slot connections, or environmental dust buildup on terminal pins. If diagnostic indicators show a fault, verify that the module is firmly seated in its backplane slot and that connector pins are free of oxidation.
Use static-safe compressed air to clear any accumulated dust from the circuit board assembly. If operational faults continue after a system reset, verify controller configuration settings and firmware compatibility.
🧰 Routine Maintenance & Servicing
Establish a semi-annual preventive maintenance routine to verify long-term reliability. Inspect all mounting hardware, terminal blocks, and grounding straps for mechanical loosening caused by vibration or signs of thermal wear.
Clean external module surfaces using a dry, anti-static cloth or brush. Avoid applying liquid solvents, moisture, or cleaning sprays directly onto electronic circuitry.
❓ Frequently Asked Questions (Q&A)
- Q1: What is the primary function of the ABB GFD563A102 module?
- A1: It serves as a specialized gate driver and interface module designed to manage switching signals and control operations within ABB power electronic drive systems.
- Q2: Can this module be hot-swapped during active system operation?
- A2: Maintenance protocols require powering down the rack prior to module insertion or removal to prevent electrical arcing and data corruption.
- Q3: What power supply voltage does this unit require?
- A3: It typically operates on a standard 24 VDC industrial control power supply rail.
