Description
The ABB GVC704AE01 (5SHX1060H0001 / 3BHB003230R0101) is an IGCT power module and gate drive unit designed for ABB medium-voltage drive systems. It is used in high-power converter applications to control Integrated Gate-Commutated Thyristor (IGCT) semiconductor switching devices, providing fast switching control, protection functions, and reliable power conversion performance.
This module is commonly applied in ABB ACS1000 and related medium-voltage drive platforms for industrial motor control applications such as compressors, pumps, fans, marine propulsion systems, mining equipment, and process industry drives.

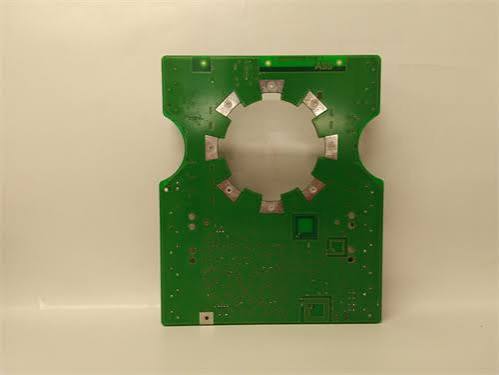

GVC704AE01 5SHX1060H0001 3BHB003230R0101
⚙️ Product Features
• Designed for ABB IGCT-based medium-voltage drive converter systems.
• Provides gate control and switching management for IGCT semiconductor devices.
• Supports high-voltage and high-current power conversion applications.
• Provides fast response switching control for MV drive operation.
• Fiber-optic signal interface provides electrical isolation and reliable communication between control and power sections.
• Suitable for ABB ACS1000 and similar medium-voltage drive systems.
• Tested spare module suitable for industrial maintenance and replacement applications.
📋 Product Datasheet
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | GVC704AE01 |
| Series | ACS1000 / Medium Voltage Drive IGCT System |
| Product Name | IGCT Power Module / Gate Unit |
| Place of Manufacture | Sweden |
| Product Status | Tested / Original Replacement Spare |
| Dimensions | Approx. 200 × 238 × 55 mm |
| Weight | Approx. 1.25 kg |
| Country of Origin | Sweden |
| Power Requirements | 24 VDC auxiliary supply |
| Discontinued | Legacy product, replacement availability through industrial spare channels |
❓ Frequently Asked Questions
🔹 Q: What is the ABB GVC704AE01 used for?
A: The GVC704AE01 is used for IGCT control and power switching functions in ABB medium-voltage drive systems.
🔹 Q: What are the related ABB part numbers?
A: The module is associated with 5SHX1060H0001 and 3BHB003230R0101 identification numbers.
🔹 Q: Is this a PLC module?
A: No. It is a power electronics module used in medium-voltage drive converter systems, not a standard PLC I/O module.
🔹 Q: Which ABB drives use this module?
A: It is commonly associated with ABB ACS1000 and other IGCT-based medium-voltage converter platforms.
🔹 Q: What should be checked before installation?
A: Verify the complete drive model, IGCT stack configuration, connectors, fiber-optic links, and auxiliary power supply before replacement.
🔹 Q: Does the module require special handling?
A: Yes. MV drive components require proper ESD protection, isolation procedures, and qualified technical personnel during installation.
🔹 Q: What industries use this type of module?
A: Typical applications include power generation, marine, oil and gas, mining, cement, and heavy industrial motor control systems.
