Description
Model: ABB GVC736CE101 (Part No: 3BHE039203R0101 / Sub-assembly: 3BHE039204P201) · Brand: ABB · Series: UNITROL 6000 / High Power Rectifier (HPR) / PEC (Power Electronics Controller) · Core Function: Gate pulse distribution and volume control for thyristor firing · Condition: Brand New Surplus (Original New), non-refurbished · Type: Gate Control Board / Pulse Interface Module · Key Specs: High-speed fiber optic trigger interface Integrated gate monitoring Multi-layer PCB with thermal management
- Application: Used in high-power excitation systems and industrial converters
- Communication:
- Dedicated Fiber Optic channels for firing pulses
- Local bus interface for diagnostics
- Inputs/Outputs: Multi-channel gate drive signals
- Voltage Rating: Standard logic-level control with high-voltage isolation
- Diagnostic Features: Onboard LEDs for pulse verification and fault detection
- Operating Temp: -10°C to +70°C

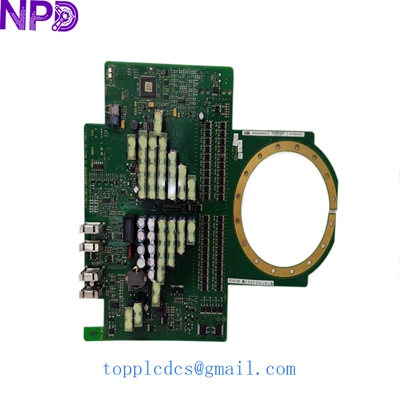

ABB GVC736CE101 3BHE039203R0101 3BHE039204P201
Installation & Configuration Guide
Phase 1: Pre-Installation (Preparation)
⚠️ Safety Protocol:
- These modules are integrated into high-power thyristor bridges. Ensure the main AC and DC power is locked out and tagged out (LOTO).
- Discharge all snubber and DC link capacitors. Verify with a high-voltage meter that no residual charge remains.
- Use a grounded ESD wrist strap. The GVC736CE101 uses fast-logic CMOS components that are extremely sensitive to static.
Tools Required:
- Fiber optic cleaning kit (pen-style cleaner and lint-free wipes).
- Precision torque driver (for securing the board).
- Anti-static bag for the removed unit.
Phase 2: Removing the Old Controller
- Tagging: Label every fiber optic connector (e.g., V1 through V6) to correspond with the thyristor sequence. If these are crossed, the rectifier will experience a catastrophic “shoot-through.”
- Fiber Removal: Gently unlatch the connectors. Place protective caps on the cable ends immediately.
- Hardware: Remove the mounting screws. To be honest, these boards are often mounted in tight spaces behind protective covers—ensure no screws fall into the thyristor assembly.
Phase 3: Hardware Verification
- Sub-assembly Check: Verify that the 3BHE039204P201 sub-component on the new board matches your original. ABB sometimes issues minor updates to these sub-assemblies.
- Jumper Mapping: Check for any micro-jumpers on the PCB surface. In my experience, these are factory-set for specific pulse widths and must match your existing configuration.
- Seating: Align the board with the standoffs. Ensure the high-density backplane connector is straight before applying pressure.
Phase 4: Startup & Test Procedure
- Static Test: Apply control power only. The status LEDs on the GVC736CE101 should show a steady heartbeat or “Ready” state.
- Pulse Test: Use a fiber optic tester or an oscilloscope (with isolated probes) to verify that firing pulses are reaching the board before energizing the main power.
- Live Commissioning: Gradually apply a low voltage to the bridge and monitor the “Gate Fault” alarms. A healthy board will show zero pulse-loss errors across all channels.

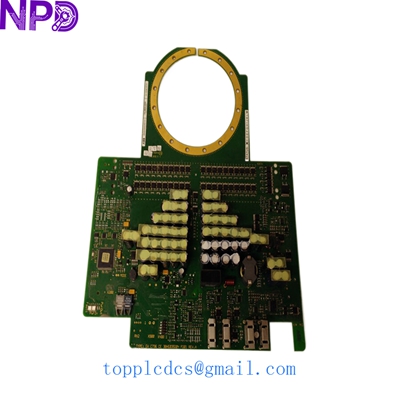

ABB GVC736CE101 3BHE039203R0101 3BHE039204P201
Customer Cases & Industry Applications
Case 1: Power Plant Excitation Failure
A hydroelectric plant in Canada experienced a sudden loss of excitation due to a “Pulse Missing” fault on their UNITROL 6000 system. The GVC736CE101 board had failed during a lightning storm. ABB’s official delivery time for an obsolete replacement was several months. We shipped a New Surplus unit via international express. The plant was back in operation within 72 hours, avoiding the purchase of expensive replacement power from the grid.
Case 2: Steel Mill Rectifier Maintenance
A steel rolling mill in Brazil uses high-power rectifiers for their main DC motor drives. During a periodic inspection, they found thermal damage on the 3BHE039203R0101 board’s fiber optic headers. They purchased our remaining stock to ensure they have immediate coverage, preventing a “line down” situation that would cost them $15,000 per hour in lost production.
Frequently Asked Questions (FAQ)
Q: Is the GVC736CE101 compatible with the older GVC736 series? A: Generally, the “CE101” is the specific revision of the GVC736 hardware. You should always replace like-for-like using the 3BHE039203R0101 part number to ensure the timing of the firing pulses remains consistent with your control software.
Q: Does this board require software programming? A: No. This is a pulse distribution and interface board. The logic is hard-coded or managed by the upstream Power Electronics Controller (PEC). However, you must ensure the jumpers are correctly set to match your system’s specific timing.
Q: Why choose “New Surplus” over a used board? A: In power electronics, “Used” boards have often been subject to high heat and electrical stress, which degrades the optical transmitters. Our New Surplus GVC736CE101 units have zero operating hours, ensuring the fiber optic signal strength is at 100% factory specifications.
Q: Can you ship to the US or Europe today? A: Yes. For orders confirmed before 4:00 PM (GMT+8), we typically achieve same-day dispatch via DHL or FedEx Express.
