Description
- Model: ABB GVC736CE101
- Primary Part Number: 3BHE039203R0101
- Secondary Assy Number: 5SXE12-0184
- Brand: ABB
- Series: UNITROL 6000 / MEGADRIVE-LCI / PCS6000
- Core Function: High-speed Gate Control and Pulse Generation
- Product Type: Central Control / Interface PCB
- Key Specs: Fiber Optic I/O Real-time DSP Architecture VME-style Form Factor
- Processor: Advanced DSP/FPGA for nanosecond-level pulse timing accuracy.
- Communication: Multiple fiber optic channels (RX/TX) for high-EMI noise immunity.
- Backplane Interface: High-density DIN connectors for power and bus communication.
- Feedback Loops: Real-time current and voltage feedback processing for firing angle adjustment.
- Synchronization: Phase-locked loop (PLL) logic for grid synchronization.
- Diagnostics: Multi-LED status panel for ‘Heartbeat’, ‘Fault’, and ‘Communication’ monitoring.
- Protection: Integrated surge suppression and galvanic isolation for logic-to-power separation.
- Operating Temp: 0°C to +60°C (requires standard cabinet airflow).

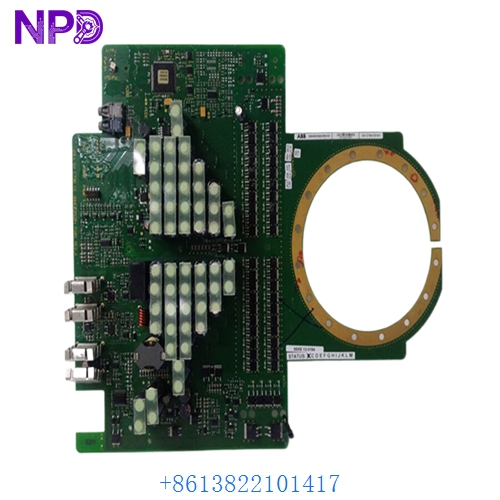

ABB GVC736CE101 3BHE039203R0101 5SXE12-0184
ABB GVC736CE101 3BHE039203R0101 5SXE12-0184

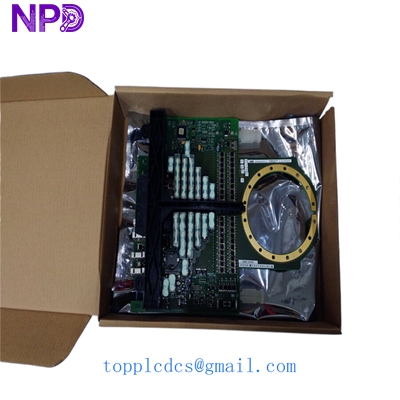

ABB 3BHE039203R0101 5SXE12-0184 GVC736CE101
Application Scenarios & Pain Points
In large-scale power plants (Hydro, Thermal, or Nuclear), the GVC736CE101 is responsible for the gate control of the power bridge. The biggest pain point is “Jitter” or “Firing Pulse Mismatch.” If the internal clock or the fiber optic transceivers on this board begin to degrade, the firing pulses sent to the thyristors become slightly unsynchronized. This creates massive harmonic distortion or, in worst-case scenarios, a “Shoot-through” that can physically destroy the power modules.
Typical Application Scenarios:
- UNITROL 6000 Static Excitation Acting as the primary controller for the field discharge and voltage regulation of large synchronous generators.
- MEGADRIVE-LCI (Load Commutated Inverters) Controlling the motor-side and line-side converters for multi-megawatt motor starters.
- Static Var Compensators (SVC) Managing high-speed reactive power compensation for grid stability.
Case Study: The “Intermittent Phase Loss” in a Gas Plant
Background: A gas-to-power facility was experiencing random “Phase Angle Error” trips on their excitation system. The site team replaced the thyristors, but the problem persisted.
The Problem: We analyzed the pulse train coming from the 3BHE039203R0101 using a high-speed oscilloscope. One of the gate channels was intermittently dropping pulses due to a micro-crack in the PCB traces near the fiber optic driver. The crack only expanded when the rack reached its operating temperature.
The Solution: We provided a “New Surplus” GVC736CE101. We performed a 24-hour heat-cycle test at our facility before shipping to ensure the board wouldn’t fail under the same thermal conditions as the original.
The Result: – Outcome: The “Phase Angle” alarms vanished instantly.
- Value: The plant avoided a $250,000 “forced outage” penalty from the grid operator.
- Client Feedback: “The 5SXE12-0184 assembly was an exact match, making the swap seamless.”
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Main Difference | Integration Effort |
|---|---|---|---|---|
| GVC736CE101 | GVC736CE102 | ✅ Direct Replace | Component lifecycle update | Drop-in; zero config |
| GVC736CE101 | 3BHE028761R0101 | ⚠️ Software Compatible | Earlier GDC generation | Requires firmware verification |
| GVC736CE101 | PEC Series | ❌ Incompatible | Next-gen AC800PEC | Requires total system upgrade |
Troubleshooting Quick Reference
| Symptom | Likely Cause | Board Related? | Quick Check | Action |
|---|---|---|---|---|
| Fiber Link “RED” LED | Failed SFP / Dirty Fiber | ✅ High | Clean fiber tips and check for light emission. | If no light from the port, replace GVC board. |
| Sync Fault Alarm | PLL Logic Failure | ✅ High | Check input frequency reference in the drive tool. | If reference is good but board won’t sync, replace. |
| “Watchdog” Trip | Firmware / RAM Error | ✅ High | Attempt a cold reboot of the control rack. | If it persists, the internal logic is corrupted. |
| Pulse Train Dropout | Gate Driver Failure | ✅ High | Use an oscilloscope on the output gate leads. | Replace board if pulses are missing or weak. |
Integrator’s “Field Tips”:
- Fiber Optic Hygiene: I cannot stress this enough—90% of the GVC736CE101 “failures” I see are actually caused by dust in the fiber ports. Use a specialized fiber cleaning pen before you declare the board dead.
- Firmware Loading: This board uses specific firmware for different applications (UNITROL vs. MEGADRIVE). If you are buying a spare, ensure you have the .bin or .upd file from your original board’s backup, or provide us with your system serial number so we can help verify the load.
- The “5SXE” Number: Always cross-reference the 5SXE12-0184 number on the PCB. That assembly number often dictates the specific hardware revision of the components on the board.
