Description

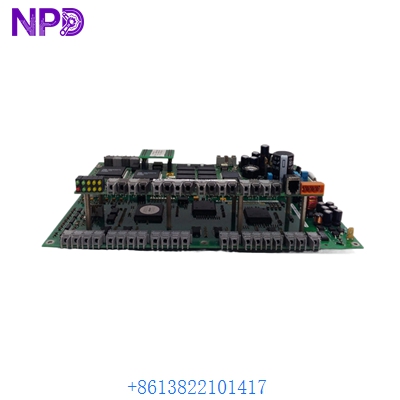

The ABB UFC718AE01 is a sophisticated Main Circuit Interface Board and controller module primarily used in high-power conversion systems, such as the ACS2000 and ACS5000 drives. It functions as a key execution unit to manage motor startup, speed regulation, and braking by precisely controlling the main circuit wiring and resistance values.
Product Parameters
- Part Number: HIEE300936R0001
- Model Code: UFC718AE01
- Input Voltage: 220V AC ±15%
- Processor: 32-bit Dual-core ARM Cortex-M7
- Output Frequency: 30kHz PWM
- Operating Temp: -25°C to +70°C
Product Specifications
- Communication: Dual-channel redundant interface (PROFIBUS, CANopen)
- Design: Plug-in module with high-speed 300MHz processing
- Protection: IP20 (IEC 60529) dust and drip-proof design
- Structure: Multilayer circuit board for high-capacity signal processing
- Weight: 0.35 kg (net weight)
Application Areas
- High-voltage variable frequency drives (VFD)
- Water supply and infrastructure automation
- Renewable energy power conversion
- Data center power management systems
- Automated production line motor control
Product Q&A
Q: What is the primary role of the UFC718AE01 in a drive system? A: It acts as the main circuit interface, coordinating the startup, speed, and braking sequences of electric motors.
Q: Does this module support diagnostic monitoring? A: Yes, it features an integrated fault self-diagnosis system with LED matrix indicators for real-time status tracking.
ABB PPC380AE01 | HIEE300885R0001 Power Converter Control Board
English Introduction

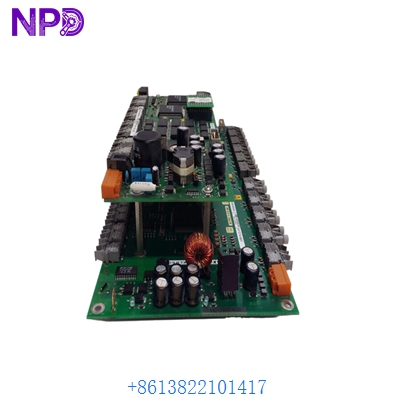

The ABB PPC380AE01 is a high-performance Power Converter Control Board (also referred to as a Frequency Converter Motherboard) used within ABB’s industrial automation and drive portfolios. It provides advanced voltage and frequency modulation to ensure energy-efficient speed regulation and stable power output for heavy industrial machinery.
Product Parameters
- Part Number: HIEE300885R0001
- Model Code: PPC380AE01
- Voltage Range: 220V DC nominal
- Dimensions: 250mm x 250mm x 250mm (packing size)
- Weight: 0.25 kg (approximate board weight)
- Storage Temp: 50°C to 80°C
Product Specifications
- Function: Integrated voltage and frequency modulation
- System Memory: 455 Mb onboard processing memory
- Hardware Type: Programmable control motherboard
- Connectivity: Standard 60-pin interface for system integration
- Protection: Overrange protection up to 250V DC
Application Areas
- Oil and gas industrial extraction drives
- Cement plant heavy-duty processing equipment
- Marine propulsion and onboard power systems
- Metal manufacturing and steel mill control
- Mining machinery speed regulation
Product Q&A
Q: Is the PPC380AE01 a digital input card or a control board? A: While some technical listings refer to it as a digital input card, its primary function is a power converter control motherboard for frequency regulation.
Q: Can this board be used for energy-saving applications? A: Yes, its core function is precise speed regulation, which significantly reduces energy consumption in motor-driven systems.
