1. Product Description

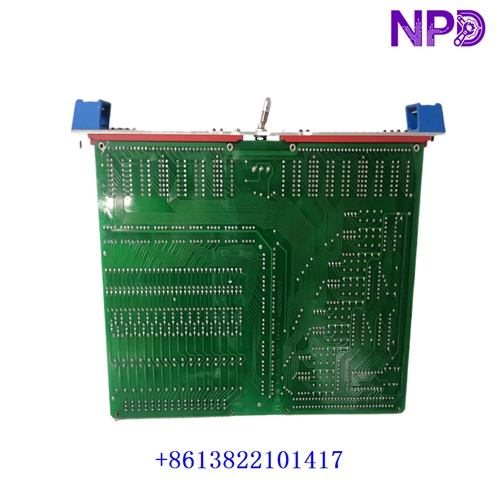

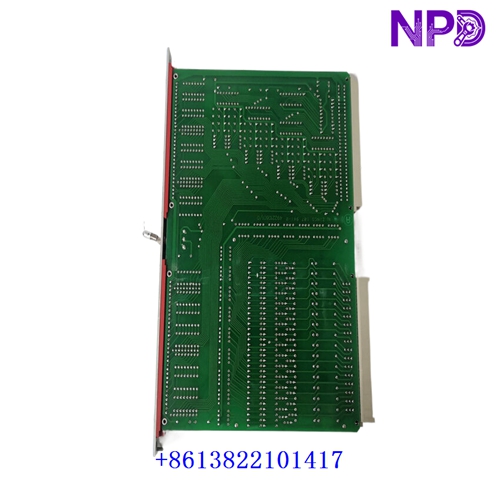

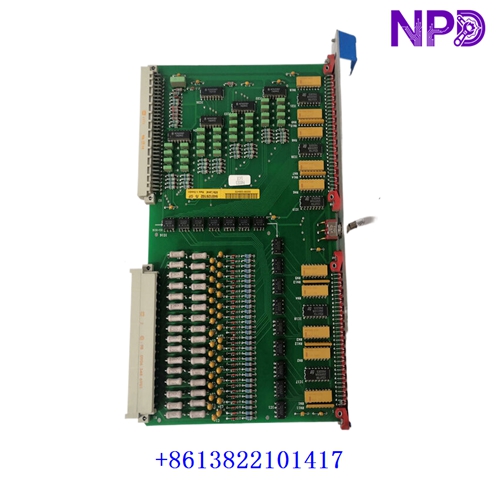

⚙️ The ABB IDPG 940128102, also designated IDPG24, is a digital input module for industrial automation and SattControl systems. It provides 32 digital input channels with a 24 V DC signal level and positive logic. The module is designed to acquire discrete field signals such as switch contacts and equipment status signals for use by a compatible control system.
🔧 Typical applications include PLC-based machinery, industrial process monitoring, and legacy automation system maintenance. Before installation, verify the module revision, terminal connections, input wiring, and compatibility with the existing rack or controller.
IDPG 940128102
2. Product Parameters and Datasheet
📋 Brand: ABB
Model: IDPG
Part Number: 940128102
Product Designation: IDPG24
Series: SattControl
Product Name: 32-Channel Digital Input Module
Input Voltage: 24 V DC
Number of Channels: 32 digital inputs
Logic Type: Positive logic
Place of Manufacture: To be confirmed
Product Status: Verify actual inventory condition
Dimensions: Approximately 203 × 25 × 279 mm; verify the exact variant
Weight: Approximately 0.29 kg
Country of Origin: Sweden or Finland; confirm the individual unit
Power Requirements: 24 V DC input signal level; system supply requirements depend on the installation
Discontinued: Listed as discontinued by some industrial parts suppliers; confirm with ABB
3. Recommended ABB Models
🔩 1. ABB DI810 — S800 digital input module.
2. ABB DI814 — Digital input module.
3. ABB DI820 — Digital input module.
4. ABB DI821 — Digital input module.
5. ABB DI830 — Digital input module.
6. ABB DI840 — Digital input module.
7. ABB DI885 — Digital input module.
8. ABB DI890 — Digital input module.
9. ABB DI801 — Digital input module.
10. ABB DI802 — Digital input module.
11. ABB DO810 — Digital output module.
12. ABB DO814 — Digital output module.
13. ABB DO820 — Digital output module.
14. ABB AI810 — Analog input module.
15. ABB AO810 — Analog output module.
⚠️ The recommended modules belong to ABB’s broader automation portfolio and are not guaranteed direct replacements for IDPG24. Check the SattControl hardware documentation and electrical interface before ordering.
