Description
- Model: ABB IMHSS03
- Brand: ABB (Bailey Controls)
- Series: Symphony Plus / Harmony / INFI 90
- Core Function: Precision hydraulic servo-actuator control
- Type: Hydraulic Servo Secondary Module
- Key Specs: Dual-channel capability, supports LVDT/RVDT feedback, high-speed closed-loop control
- Control Loops: 2 independent hydraulic servo loops
- Feedback Inputs: Supports LVDT (Linear Variable Differential Transformer) or RVDT feedback
- Output Signal: ± 100 mA or ± 10 V DC servo valve drive
- Resolution: 14-bit A/D and D/A conversion
- Processor: On-board microprocessor for localized real-time execution
- Communication: Connects to the Harmony Control Processor (HCP) via the I/O expander bus
- Power Consumption: +5 V DC @ 1.2 A; ± 15 V DC @ 150 mA (from rack)
- Operating Temp: 0°C to +70°C (32°F to 158°F)
- Redundancy: Supports redundant module configurations for mission-critical paths

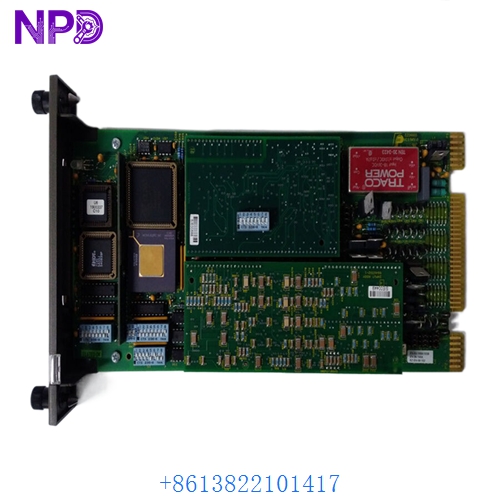

ABB IMHSS03

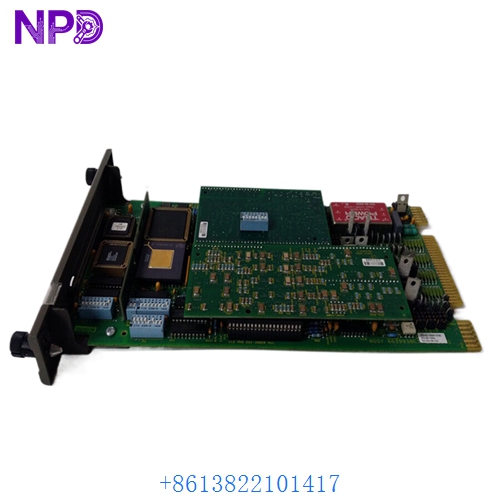

ABB IMHSS03

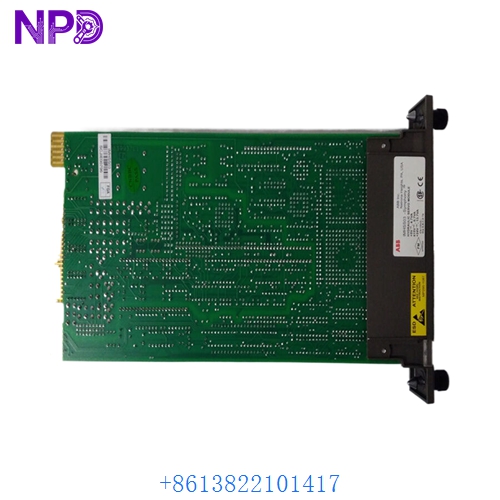

ABB IMHSS03
Installation & Configuration Guide
Phase 1: Preparation (20 minutes)
⚠️ Critical Warning: The IMHSS03 controls high-pressure hydraulic actuators (e.g., turbine steam valves). Incorrect configuration can cause sudden mechanical movement. Always lock out hydraulic pressure or place the valve in a safe mechanical position before swapping this module.
Required Items:
- Grounded anti-static wrist strap.
- Composer or WinTools engineering software.
- LVDT Calibration tool/Multimeter.
Phase 2: Hardware Settings (15 minutes)
Steps:
- Jumper Audit: Before installation, check the jumpers on the IMHSS03 PCB. These define the input ranges and the type of servo valve (Current vs. Voltage drive). Match these exactly to the module being replaced.
- Address Identification: Set the module address dip-switches to match the software configuration in your Symphony/Harmony project.
- Visual Inspection: Ensure the rear 12-pin or 24-pin connectors are clean. In power plant environments, sulfur or dust can cause high-impedance connections on servo loops.
Phase 3: Loop Calibration (30 minutes)
The “Precision” Phase:
- Insertion: Slide the ABB IMHSS03 into the assigned slot in the MMU (Module Mounting Unit). Tighten the front screws.
- LVDT Nulling: Use the engineering software to verify the LVDT “Zero” and “Span.” If the feedback doesn’t match the physical valve position, the servo will likely oscillate or “hunt.”
- Gain Tuning: If this is a new installation, start with low Proportional (P) gain. Hydraulic systems are fast; high initial gains can cause violent mechanical “hammering.”
Customer Cases & Industry Applications
Case 1: Steam Turbine Governor Control
Situation: A 300MW steam turbine in South America experienced unstable frequency control. The culprit was a drifting IMHSS03 module that was misinterpreting the LVDT feedback from the main inlet valve. Task: Replace the module during a short weekend outage. Action: We supplied a New Surplus unit from our inventory. Result: The new module provided a stable, jitter-free signal. The turbine’s heat rate improved due to more precise valve positioning.
Case 2: Hydroelectric Gate Positioning
Situation: A hydro facility used ABB IMHSS03 modules to control the wicket gates. One module failed due to a power surge in the rack. Task: Restore gate control before the spring runoff season. Action: The customer purchased a New Surplus spare to ensure the highest reliability for the upcoming peak season. Result: The module was installed and calibrated in 4 hours. The facility manager noted that the “New Surplus” status gave them peace of mind compared to the uncertainty of a 20-year-old “Used” part.
Frequently Asked Questions (FAQ)
Q: Can the IMHSS03 replace the older IMHSS02? A: Generally, yes. The IMHSS03 is an enhanced version with better thermal stability and component life. However, you must verify your Composer/WinTools block types to ensure the software supports the updated hardware revision.
Q: My “Status” LED is Red. What does it mean? A: A solid red LED usually indicates a hardware failure or a “Watchdog Timer” timeout. Try reseating the module. If the red light stays on, the module likely has an internal logic fault.
Q: Why buy “New Surplus” for hydraulic controls? A: Hydraulic servo control is one of the most demanding tasks in a DCS. It requires high-speed, high-accuracy analog signals. A “Used” module may have degraded capacitors or resistors that “drift” when they get warm. A New Surplus IMHSS03 offers factory-fresh precision, which is vital for preventing mechanical wear on your valves.
Q: Does it support 4-20 mA servo valves? A: While it is primarily designed for ± 100 mA or ± 10 V drives, it can be configured for various ranges via jumpers. Consult the technical manual for the specific jumper map for 4-20 mA applications.
Q: Is there a difference between “Bailey” and “ABB” branded modules? A: They are functionally identical. ABB acquired Bailey Controls, so you may see either logo depending on the manufacturing date. The IMHSS03 part number remains the standard for both.
