Product Core Brief
- Model: IT94-3 (Commonly associated with HESG440310R2 and HESG112699B)
- Brand: ABB
- Series: Industrial Automation / Interface Logic Series
- Core Function: Serves as a localized signal interface and logic coupling module, typically used in ABB’s older generation control and drive automation systems to route and isolate signal paths between field devices and the main control processor.
- Product Type: Logic Interface / Coupling Module
- Supply Status: ⚠️ Obsolete by OEM; premium factory-surplus/legacy stock available.
- Stock: 有货 (Subject to physical warehouse verification)
- Warranty: 12 Months (From date of shipment)
- Ship From: Shenzhen, China (Domestic: 2-3 days; International: 5-7 days via DHL/FedEx)

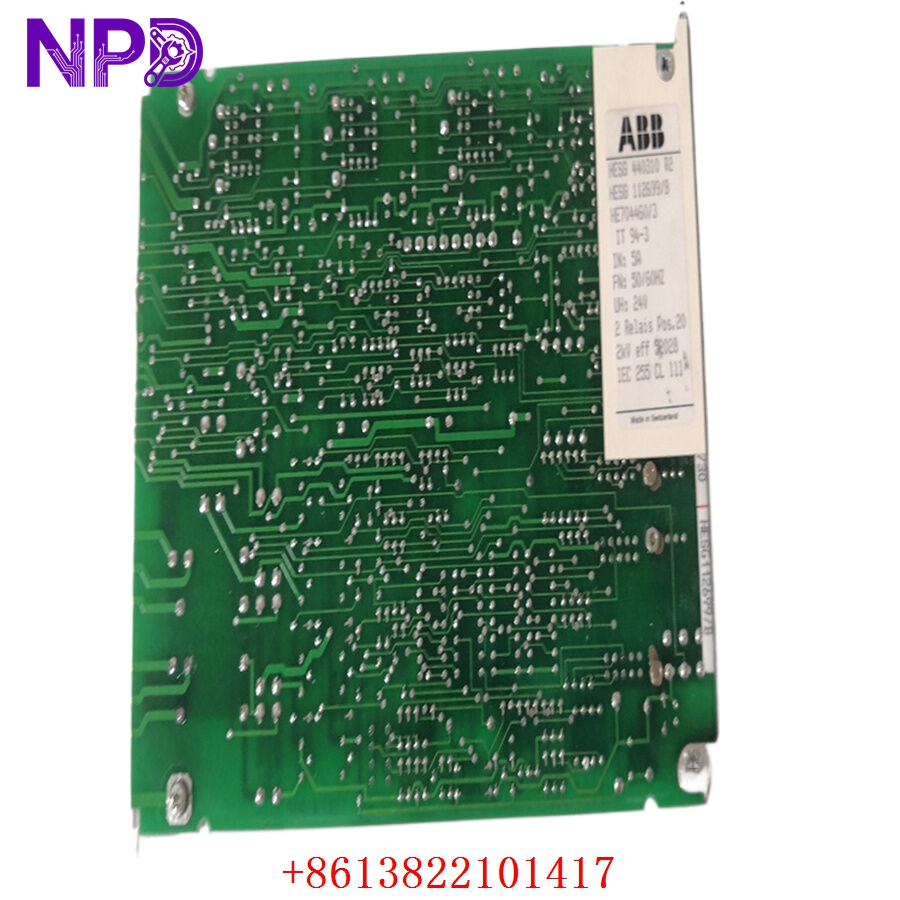

IT94-3 HESG440310R2 HESG112699B

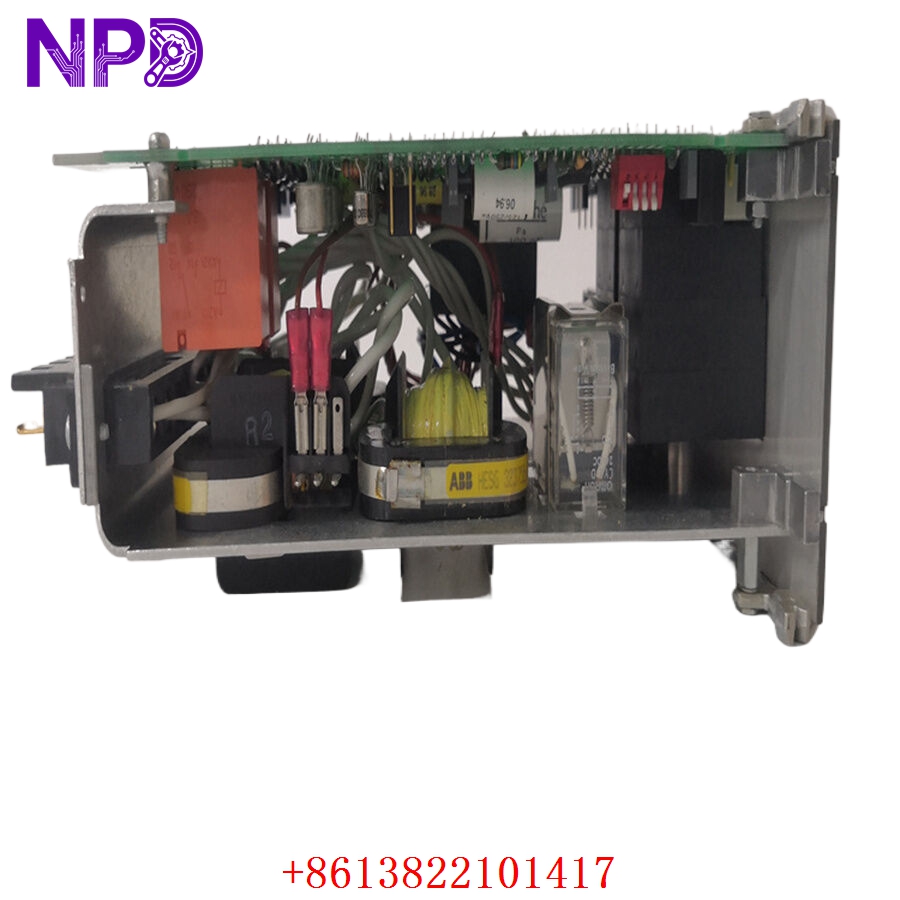

IT94-3 HESG440310R2 HESG112699B

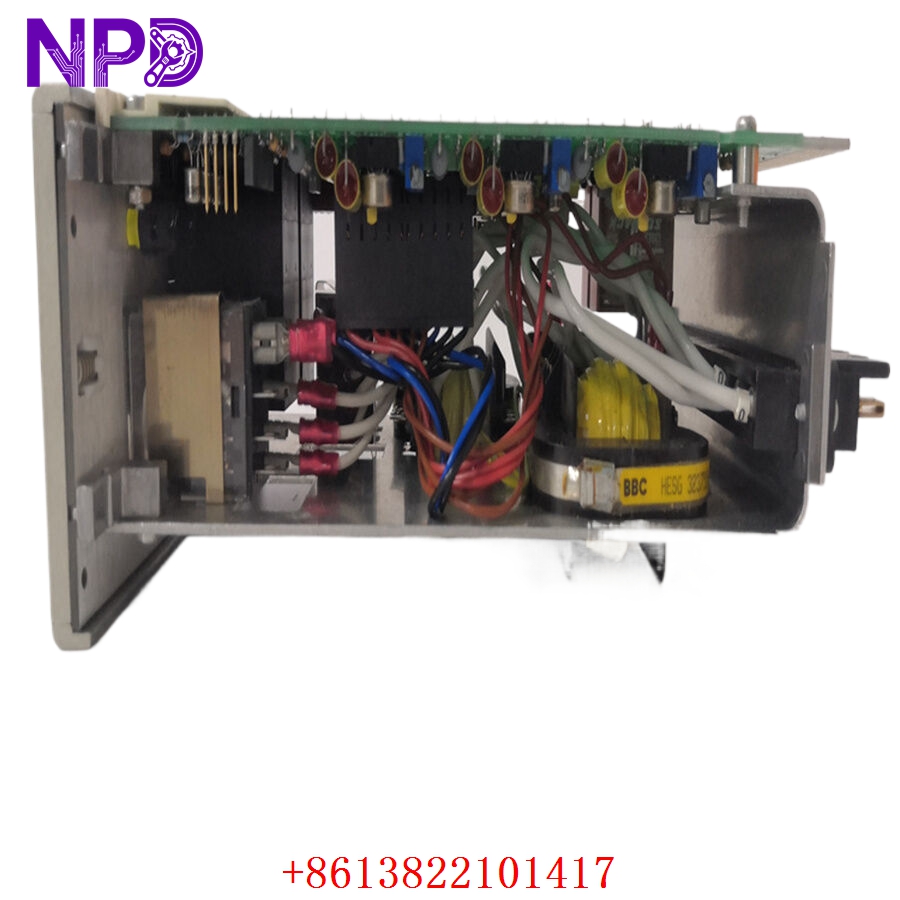

IT94-3 HESG440310R2 HESG112699B

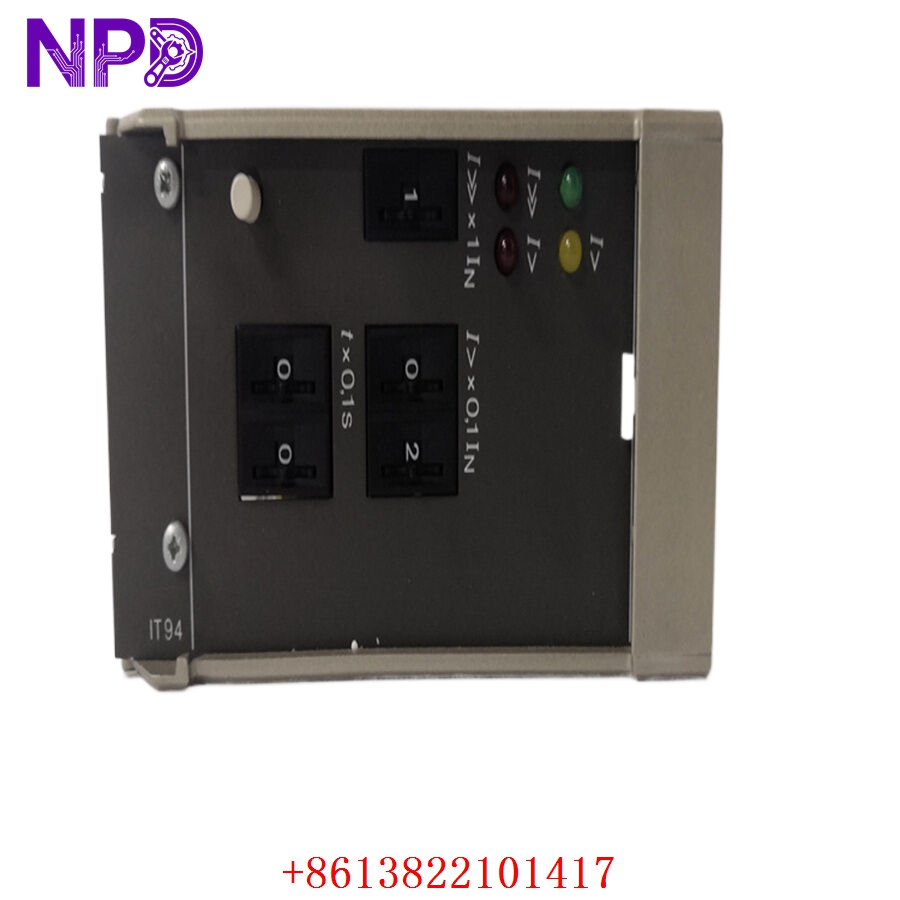

IT94-3 HESG440310R2 HESG112699B
Technical Overview
The ABB IT94-3 is a specialized logic interface module often found in legacy ABB control cabinets, including paper mill automation, substation auxiliary control, and modular drive panels.
- Signal Isolation: Provides electrical isolation between field instrumentation (sensors/switches) and the central control rack to prevent ground loops and high-voltage surge propagation.
- Logical Coupling: Facilitates the handshake between different voltage levels (e.g., interfacing 24V control signals with higher-voltage field feedback loops).
- Design: Features modular, rack-mountable or DIN-rail compatible form factors consistent with ABB’s industrial automation standards of the era.
- Conformal Coating: Typically treated with industrial-grade protective coatings to prevent oxidation and moisture ingress in humid or corrosive industrial environments.
Engineering & Application Context
The On-Site Reality
Modules like the IT94-3 are critical for signal stability in automation cabinets. When these boards experience component aging—such as capacitor leakage or optocoupler degradation—the control system may report intermittent “Signal Mismatch,” “Logic Timeout,” or “Communication Fault” alarms. Because these parts have been out of production for years, finding an exact replacement that matches your specific revision number (HESG440310R2) is critical for system reliability.
Troubleshooting Quick Reference
❗ SAFETY FIRST: Always isolate the power supply to the interface rack before removing or inserting any module. Ensure that field side connections are de-energized to prevent contact with hazardous voltage levels.
- Diagnostic LED Check:
- Power LED Off: Verify the 24 V DC input at the rack bus. If the rack is energized but the module is dark, the board’s internal fuse or DC/DC converter may have failed.
- Logic Link Flashing: If a status LED associated with a signal channel is blinking erratically, it indicates noise interference on the field wire or a failing optical coupler within the module.
- Terminal/Wiring Issues: Given the age of these components, check for “brittle” wire connections. Ensure that terminal screws are tightened correctly and that field wires are not showing signs of oxidation, which is common in older installation environments.
- Backplane Pin Inspection: When removing the module, inspect the rear pins for signs of pitting or corrosion. A poor connection here is the #1 cause of “Ghost Faults” in ABB legacy automation racks.
Procurement & Installation Advice
- Verify Revision Numbers: While IT94-3 is the primary model, please cross-reference your specific HESG440310R2 or HESG112699B markings. These revisions denote slight variations in circuit board layout or internal component ratings.
- Contact Cleaning: Before installing a surplus module, it is recommended to clean the contacts on your existing cabinet rack pins with a high-quality electrical contact cleaner to ensure a low-resistance path for the new board.
- Backup Settings: If your system uses software-configurable parameters for these modules, ensure your project backup file is ready to re-download settings, as some IT94 variants may require calibration after hardware replacement.
