Description
- Model: ABB IW93 / IW93-2
- Part Number: HESG440356R1 (Sub-code: HESG216678/B)
- Brand: ABB (Switzerland/Sweden)
- Series: Advant Controller / MasterBus 300 Series
- Core Function: System Control / MasterBus 300 Communication Module
- Product Type: CPU Board / Communication Interface
- Key Specs: 24 VDC Supply Hot Swappable MasterBus 300 Protocol Support
- Power Supply: 24 VDC (Typical range 18V – 30V)
- Power Consumption: Maximum 10 Watts
- Communication Implementation: MasterBus 300 (Can be executed in main CPU or dedicated slave CPU)
- Submodule Support: Compatible with SC510 or SC520 submodule carriers
- Port Isolation: 180 VDC
- Temperature Range: -5 °C to +45 °C (23 °F to 113 °F)
- Humidity: ≤ 90% Relative Humidity (non-condensing)
- Weight: Approx. 1.0 kg (Shipping weight 2.0 kg)
- Features: Supports hot-swappable installation in redundant configurations

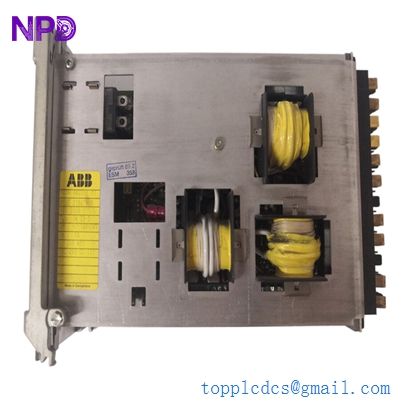

ABB IW93 HESG440356R1
Application Scenarios & Pain Points
The IW93 HESG440356R1 is a high-precision control and communication module primarily used within the ABB Advant Controller 450 (AC 450) and MasterBus 300 architectures. Its main role is to facilitate information transfer between different computer nodes in a Distributed Control System (DCS). Because it manages communication loads, its configuration is vital for maintaining the stability of the entire network.
Typical Application Scenarios:
- Distributed Control Systems (DCS) Managing the data flow between main CPU racks and remote I/O subracks via the MasterBus 300 link.
- Advant Controller 450 Integration Serving as a dedicated communication processor to offload the main CPU, ensuring high-speed process control remains unaffected by network traffic.
- Power Plant Automation Used in large-scale utility control where reliability and sub-second data synchronization across multiple controllers are mandatory.
- Metals & Mining (ABB Master) Legacy support for ABB Master systems where MasterBus 300 remains the primary backbone for plant-wide data exchange.
Case Study: The “CPU Bottleneck”
Background: A steel rolling mill was experiencing “Communication Timeout” errors during peak production. The AC 450 controller was struggling to keep up with both the high-speed logic and the heavy MasterBus 300 traffic.
The Problem: The system was using Implementation 1 (MasterBus 300 executed on the main CPU). As the network grew, the communication load increased, causing the main CPU to hit 95% utilization.
The Solution: We supplied the IW93-2 HESG440356R1 to be used in Implementation 2. By moving the communication tasks to this dedicated module on an SC520 carrier, the main CPU load dropped by 40%.
Result: The mill eliminated its timeout errors and gained enough “CPU headroom” to add two more remote I/O racks without needing a full system upgrade.
Similar Product Recommendations
The IW93 belongs to the MasterBus family. Compatibility depends on whether you are offloading the main CPU or running integrated comms.
| Model Number | Compatibility | Main Difference | Integration Note |
| IW93-2 | ✅ Direct | Latest revision of the IW93 | Fully interchangeable with HESG440356R1. |
| SC510 | ⚠️ Carrier | Submodule carrier | Required for “Implementation 1” (Main CPU based). |
| SC520 | ⚠️ Carrier | Submodule carrier | Required for “Implementation 2” (Dedicated Slave CPU). |
| DSBC 174 | ❌ Incompatible | Different protocol | Used for MasterBus 200/AF100 networks. |

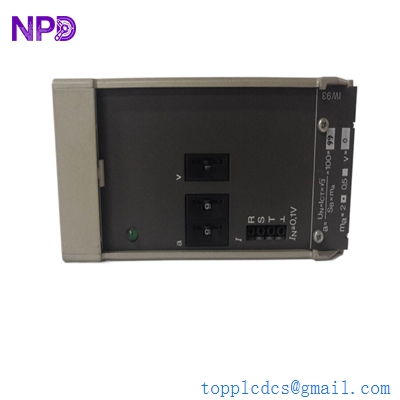

ABB IW93 HESG440356R1
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance | Action |
| No Comms via MasterBus | Implementation Conflict | ✅ High | Ensure you aren’t mixing “Main CPU” and “Slave CPU” modes in the same controller. |
| Module “FAIL” LED On | 24V Supply Issue | ✅ High | Check backplane voltage; ensure it stays within 18V-30V range. |
| High Network Jitter | Excess Traffic | ⚠️ Medium | Use TriStation/Advant software to limit cyclic transfer frequency to essential levels. |
| Hot Swap Error | Configuration Mismatch | ⚠️ Medium | Verify the new module’s hardware revision matches the existing redundant pair. |
Technical SOP & Quality Guarantee
The IW93 is a communication specialist. Our testing ensures it handles “data stress” without failure:
- Protocol Traffic Test: We connect the module to a MasterBus 300 test loop and verify error-free packet transmission under 80% bus load.
- Carrier Interface Check: We test the board on both SC510 and SC520 carriers to ensure the pin-to-bus logic is 100% functional.
- Isolation Verification: We verify the 180 VDC port isolation to protect your DCS from field noise.
- Heat Soak: The board is run for 24 hours at 45°C to ensure the logic chips don’t drift or fail under cabinet heat.
Engineer’s Pro-Tip: In MasterBus 300 systems, you cannot mix Implementation 1 and Implementation 2 in the same controller. If you are adding an IW93 to an existing rack, check the existing submodule carrier type first. If you have an SC510, you are likely running in Implementation 1.
