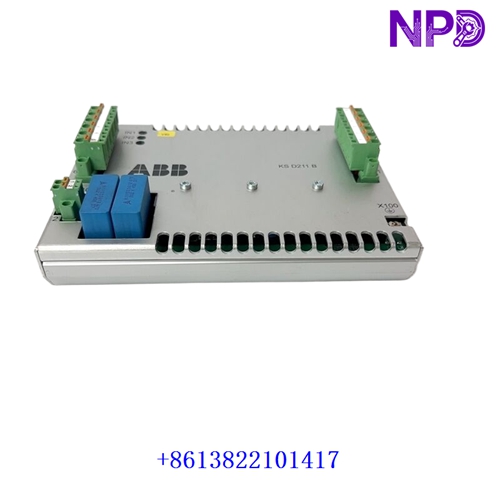

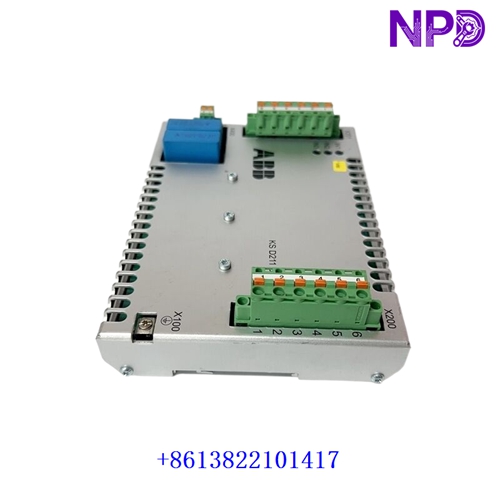

ABB KSD211B | 3BHE022455R1101 | Thyristor Control Module

Description

Product Specifications & Datasheet

• Brand: ABB
• Model: KSD211B (3BHE022455R1101)
• Series: ACS / Industrial Drive and Excitation Control Series
• Product Name: Thyristor Control / Interface Board
• Place of Origin: Sweden / Switzerland
• Lifecycle Status: Active / Industrial Drive Spare Part
• Dimensions: Standard Modular Form Factor
• Weight: 0.55 kg
• Origin Country: Sweden
• Power Rating: Low-Voltage Internal DC Bus Powered

Operating Procedures & Usage Guidelines

• Pre-Installation Inspection: Ensure that the drive cabinet main power breaker is turned off, locked out, and tagged out, and verify that all DC-link capacitors are fully discharged before handling.
• Module Insertion: Align the board carefully with the internal card rack guide slots and press firmly until the connectors seat securely into the backplane.
• Cable Connection: Fasten all internal trigger wires, fiber optic links, and control cables securely to their designated terminals to prevent loose connections.
• System Initialization: Restore power to the equipment and check the drive control panel or software interface to confirm the module initializes without hardware faults.

Emergency Shutdown Operation

• Main Power Interruption: Trigger the emergency off switch or main circuit breaker feeding the drive system to cut electrical power instantly.
• System De-Energization: Ensure the drive safely dumps stored energy and brings connected heavy machinery to a controlled, safe stop.

Troubleshooting & Common Issues

• Trigger Pulse Failure: Inspect the gate control wiring and fiber optic cables connecting the module to the thyristor stacks for secure attachment and cleanliness.
• Module Not Responding: Verify that the board is pushed completely into its backplane slot and that internal control power rails are healthy.
• Drive Fault Alarms: Check the main drive fault log via the control software to isolate specific error codes related to thyristor firing or phase synchronization.

Routine Maintenance & Care

• Dust Removal: Use clean, dry compressed air during scheduled maintenance to clear accumulated dust from the electronic components and cooling vents.
• Connection Integrity: Periodically verify that all plug-in connectors and screw terminals remain tight despite mechanical vibration from nearby machinery.
• Environmental Control: Ensure cabinet air conditioning and filtration systems maintain proper temperature and humidity ranges to prolong module life.

Frequently Asked Questions (Q&A)

• Q: What is the primary role of the ABB KSD211B module?
  • A: It is designed for industrial drive and power conversion systems to manage precise thyristor firing and control functions.
• Q: Can this module be replaced while the drive is energized?
  • A: No, power must always be fully disconnected and residual voltages discharged before installing or removing this control board.
• Q: How do I verify proper operation after replacing the unit?
  • A: Check that the front panel indicator LEDs display normal status and review the system software diagnostic logs to ensure zero active hardware errors.
