Description

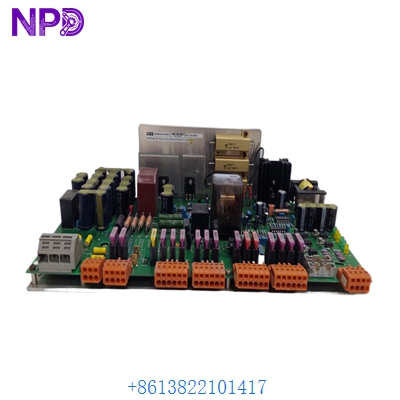

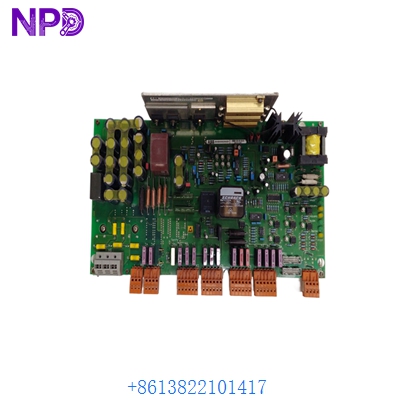

The ABB KUC720AE01 is a high-performance power control and gate drive board utilized within ABB’s medium-voltage power converter systems, such as the ACS and UNITROL series. It serves as a critical interface for signal processing and power module management.
Product Parameters
- Model Code: KUC720AE01
- Part Numbers: 3BHB003431R0001 / 3BHB000652R0001
- Input Voltage: 24V DC Nominal
- Communication Interface: Integrated Fiber Optic channels and High-Density Pin Connectors
- Country of Origin: Switzerland / Estonia
Product Specifications
- Weight: Approximately 0.85 kg
- Dimensions: 260 mm x 180 mm x 35 mm
- Mounting: Internal drive rack or control cabinet integration
- Operating Temperature: Industrial grade (check specific enclosure cooling requirements)
Application Fields
- Medium-voltage motor drives (ACS series)
- Excitation systems for power plants (UNITROL)
- Renewable energy grid converters
- Industrial heavy-duty power control systems
Q&A
- Q: Are 3BHB000652R0001 and 3BHB003431R0001 interchangeable? A: They represent different assembly revisions of the KUC720AE01 board; check the hardware version on your existing unit for exact compatibility.
- Q: What is the primary role of the fiber optic ports? A: They provide high-speed, noise-immune communication between the control unit and the power electronics.
- Q: Does this board require specific firmware? A: Yes, it typically functions as part of a larger drive system and requires compatible system software.
Selection Requirements
- Confirm the specific drive series (e.g., ACS6000 or UNITROL 6000) before ordering.
- Verify the Revision Letter on your current 3BHB board to ensure signal matching.
- Ensure your system supports the 24V DC auxiliary power supply requirements.
