Description
The ABB KUC720AE01 (3BHB003431R0001 / 3BHB000652R0001) is a Power Control Drive Board designed for ABB high-power drive and excitation control systems. It is a key control PCB used for power conversion management, signal processing, gate control, and real-time regulation functions in ABB industrial power electronics platforms.
The KUC720AE01 integrates control logic, power management, feedback signal processing, and semiconductor switching control functions. It is commonly associated with ABB medium-voltage drives, AC800PEC-based converter systems, and UNITROL excitation applications where precise power control and reliable operation are required.
This board provides the interface between the low-voltage control system and the high-power stage, supporting applications such as motor drives, generator excitation systems, and industrial power conversion equipment.

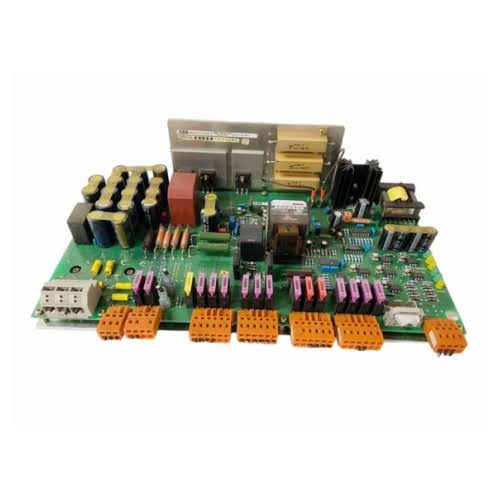

KUC720AE01 3BHB003431R0001
🔹 Product Parameters Datasheet
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | KUC720AE01 |
| Part Number | 3BHB003431R0001 / 3BHB000652R0001 |
| Series | ABB Power Control / UNITROL / AC800PEC Series |
| Product Name | Power Control Drive Board |
| Origin / Place of Manufacture | Sweden / ABB Manufacturing Network |
| Product Status | New Surplus / Tested Used / Refurbished Spare |
| Dimensions | Approx. 200 mm × 150 mm × 40 mm |
| Weight | Approx. 1.0–1.5 kg |
| Power Requirement | 24 VDC Control Supply |
| Processor Function | Real-Time Power Control Processing |
| Communication Interface | Internal ABB Control Bus / Serial Communication |
| Application | Medium Voltage Drive & Excitation Control |
| Discontinued Status | Legacy Product, Available as Replacement Spare |
🔹 Technical Features
🔸 Designed for ABB power converter and drive control systems
🔸 Provides real-time control and regulation functions
🔸 Supports motor drive and generator excitation applications
🔸 Processes voltage, current, and feedback signals
🔸 Provides gate control interface for power semiconductor devices
🔸 Supports ABB AC800PEC and related power electronics platforms
🔸 Includes diagnostic monitoring and protection functions
🔸 Designed for industrial environments with high reliability requirements
🔸 Modular PCB design for convenient maintenance replacement
🔸 Suitable for power plants, metallurgy, mining, and heavy industrial applications
🔹 Common Questions & Answers
Q: What is the main function of ABB KUC720AE01?
A: The KUC720AE01 is a power control drive board that performs control processing, feedback handling, and power stage interface functions in ABB high-power systems.
Q: Is KUC720AE01 a standard PLC CPU module?
A: No. It is a dedicated ABB power electronics control board used for drives, converters, and excitation systems.
Q: Which ABB systems use this board?
A: It is used in ABB power control applications including AC800PEC-based converter systems, medium-voltage drives, and some UNITROL excitation platforms.
Q: What is the relationship between 3BHB003431R0001 and 3BHB000652R0001?
A: These part numbers are associated with the KUC720AE01 board family and may represent different order references or board configurations depending on the application.
Q: What should be checked before replacement?
A: Confirm the complete ABB part number, hardware revision, installed drive or excitation system model, firmware compatibility, connectors, and parameter settings.
Q: What are common failure symptoms?
A: Possible symptoms include drive faults, gate control errors, communication alarms, unstable regulation, power stage trips, or controller initialization failures.
Q: Can KUC720AE01 replace another ABB control board directly?
A: Replacement depends on the exact ABB system configuration, software version, hardware revision, and application requirements.
