Description
Product Introduction

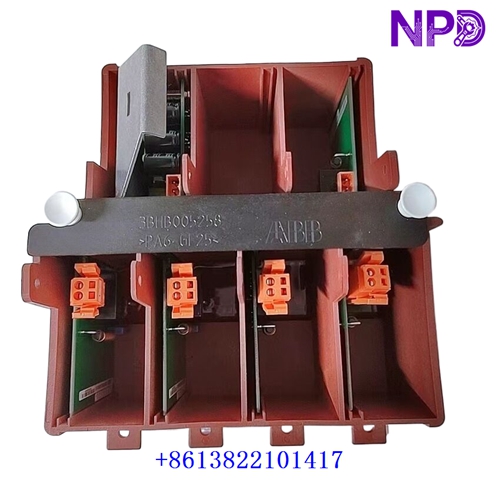

🔹 The ABB KUC755AE105 (3BHB005243R0105) is identified in industrial spare-parts listings as a gate unit power supply module associated with ABB power electronics and medium-voltage drive systems. It supports the gate-drive circuitry used to control power semiconductor switching. Confirm the exact application against the equipment documentation before ordering.
🔹 This module is intended for maintenance and replacement in compatible ABB power-conversion equipment. Check the complete part number, revision, connector configuration, and system compatibility before installation. Different KUC755 variants should not be assumed interchangeable.
Product Datasheet
| Parameter | Details |
|---|---|
| Brand | ABB |
| Model | KUC755AE105 |
| Part Number | 3BHB005243R0105 |
| Series | ABB KUC755 Gate Unit Series |
| Product Name | Gate Unit Power Supply Module |
| Place of Manufacture | Not independently verified |
| Product Status | Not specified; confirm actual stock condition |
| Dimensions | Not verified |
| Weight | Approximately 2.36 kg reported by a supplier; verify before shipping |
| Power Requirements | Verify input and output ratings using the original ABB documentation |
| Country of Origin | Not verified |
| Discontinued | Not verified; confirm with ABB |
Fault Troubleshooting and Common Questions
🔧 Gate unit power fault: Check the designated supply connections, connectors, and system diagnostic indicators according to the equipment manual.
🔧 Drive trips or power-stage alarms: Review fault codes, gate-unit status, and associated power semiconductor diagnostics. Do not repeatedly reset a fault without identifying its cause.
🔧 Replacement module not operating: Confirm the full part number and revision, connector arrangement, and compatibility with the installed drive.
Safety Precautions
⚠️ Medium-voltage drive equipment contains hazardous voltages and potentially stored electrical energy. Only qualified personnel should service the system. Follow lockout/tagout procedures and the manufacturer’s DC-link discharge and verification requirements before handling the module.
Frequently Asked Questions
Q1: What is the ABB KUC755AE105?
It is identified by industrial spare-parts suppliers as a gate unit power supply module for compatible ABB power electronics equipment.
Q2: Is it suitable for every ABB medium-voltage drive?
No. Compatibility depends on the drive platform, gate-unit configuration, and exact hardware revision.
Q3: Can KUC755AE105 replace KUC755AE106?
Do not assume interchangeability. Verify the complete part number and the approved hardware configuration in the equipment documentation.
Q4: What should be checked before purchasing?
Confirm the part number, physical condition, revision, connectors, supplier’s stated condition, and compatibility with the installed system.
Recommended ABB Models and Related Components
The following models are potential ABB spare-parts sourcing leads for power electronics, drive control, and excitation applications. They are not confirmed direct replacements for KUC755AE105.
- KUC711AE – Related ABB control-unit designation; verify the exact function and variant.
- KUC755AE106 – Related KUC755 variant; confirm compatibility before substitution.
- KUC755AE117 – Related KUC755 variant; verify the complete ordering code.
- 5SHY4045L0006 – ABB integrated gate-commutated thyristor (IGCT) component.
- 5SHY3545L0016 – ABB IGCT power semiconductor component; verify the application.
- 3BHB003154R0101 – ABB power-electronics component; confirm the exact function.
- 3BHE003855R0001 – ABB UNS2882A industrial control module.
- 3BHE005727R0001 – ABB UNS 2880A-P V1 control module.
- 3BHE036342R0101 – ABB XDD501A101 module.
- 3BHE044481R0101 – ABB PPE091A101 module.
- 3BHE020356R0101 – ABB GFD212A module.
- 3BHE028761R0101 – ABB GDC806A0101 control module.
- 3BHE014557R0003 – ABB UNITROL 1000 excitation-control unit.
- PPD113 – ABB AC 800PEC controller family; verify the exact variant.
- UNITROL 1010 – ABB excitation controller for compatible synchronous-machine applications.
Confirm each part’s complete ordering code and equipment compatibility before purchasing or installing.
