Description
- Model: KX8974c V24
- Part Number: HIEE320606R1
- Brand: ABB (Switzerland/Sweden)
- Series: UNITROL / Advant OCS / 200 Series
- Core Function: High-speed logic processing and system communication module
- Product Type: Central Processing Unit / Controller Board
- Key Specs: V24 Firmware/Revision architecture, high-density I/O bus interface, 24 V DC logic level
- Firmware Version: V24 (indicated by the suffix)
- Processor Architecture: Specialized RISC-based control logic for power electronics
- Bus Connectivity: Optimized for ABB Advant and UNITROL internal high-speed backplanes
- Communication Ports: Integrated serial/service port for diagnostic and terminal access
- Isolation: Optical and galvanic isolation between logic and field power rails
- Status Monitoring: Multi-segment diagnostic LED display for error codes and system heartbeat
- Mounting: Standard 6U Eurocard format for rack-based installation

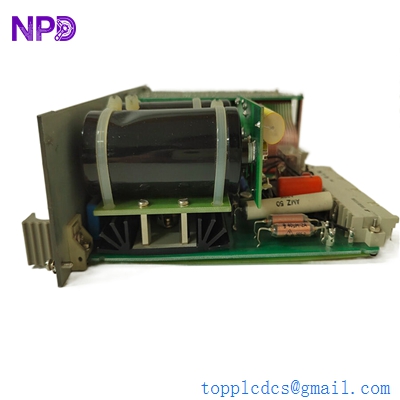

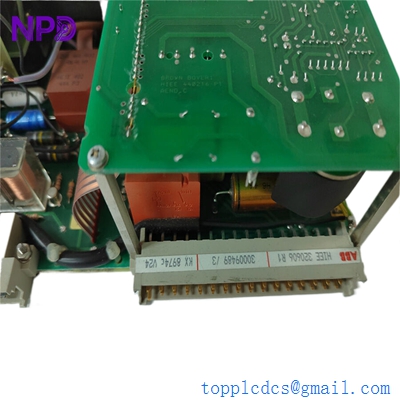

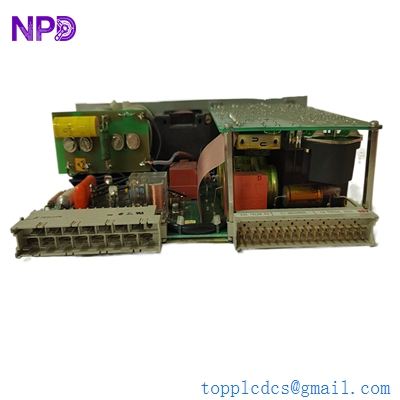

ABB KX8974c V24 HIEE320606R1
Application Scenarios & Pain Points
The KX8974c V24 is a vital “intelligence” board found in ABB’s legacy high-power excitation systems, such as the UNITROL series. It serves as the primary interface between the high-level system logic and the firing circuits of the thyristor bridges. A failure in this board typically results in a “Loss of Excitation” or a “Communication Link Failure,” leading to an immediate emergency shutdown of the generator. Finding a V24 revision specifically is critical for plants that have not updated their overarching software architecture.
1. Utility-Scale Generator Excitation
Managing the voltage regulation and reactive power limits for large hydro and thermal turbine generators.
2. Static Frequency Converters (SFC)
Controlling the startup and synchronization of large motors and gas turbines.
3. Heavy Industrial Drive Systems
Found in massive rolling mills or mine hoists where precise torque control and high availability are mandatory.
Case Study: The “V24” Revision Lock
Background: A power plant was running an older UNITROL system that utilized KX8974c modules with V24 firmware. During a lightning strike event, the main processor board in the excitation rack was fried.
The Problem: The site team attempted to replace the board with a newer “V30” revision they found in another warehouse. However, the system software (Advant) refused to communicate with the newer board because the internal register maps were different. The plant remained dark while they searched for the specific V24 hardware.
The Solution: We supplied a certified HIEE320606R1 (KX8974c) specifically confirmed as the V24 revision. Before shipping, we performed a full loop-back test on the communication ports to ensure the V24 protocols were fully functional.
The Result: The generator was synchronized back to the grid within 24 hours of the board’s arrival.
- Avoided Loss: Prevented an extended outage during a high-demand period, saving an estimated $90,000 in lost revenue.
- Takeaway: When it comes to ABB legacy boards, the hardware revision (V24, V30, etc.) is just as important as the part number. Never assume a newer version is backward compatible without verifying the software drivers.
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Key Differences | Workload |
| KX8974 | KX8974c V24 | ✅ Direct | “c” version has improved heat dissipation | Plug & Play |
| KX8974b | KX8974c V24 | ✅ Direct | HIEE320606R1 is the standard upgrade | Plug & Play |
| HIEE320606R2 | HIEE320606R1 | ⚠️ Software | Newer revision (R2); check firmware | Possible Update |
Engineer’s Advice: The HIEE320606R1 is often referred to as a “Controller Plate.” If you are replacing an older “b” version, ensure your backplane pins are clean. I’ve seen many “faulty” boards that were actually just suffering from poor contact on the high-density backplane connector.
Troubleshooting Quick Reference
| Symptom | Possible Cause | KX8974c Related? | Quick Check | Action |
| “RUN” LED Off | No Logic Power | ✅ High | Check +5V and ±15V at the rack | Replace Power Module |
| Display shows “E1” | Memory Fault | ✅ High | Cycle power to reset logic | Replace KX8974c board |
| Comm Timeout | Incorrect Baud Rate | ✅ High | Verify V24 firmware settings | Check dip-switch settings |
| “FLT” LED Red | Internal Logic Error | ✅ High | View specific error on diagnostic LED | Replace Board |
Expert Maintenance Tips:
- Firmware Verification: ❗ Critical! The V24 revision is often hard-coded into the EPROMs on the board. If you are moving a board between racks, verify that the software version matches the system controller’s expectations.
- Handle with Care: The Eurocard format uses very thin pins (DIN 41612). Always use the extraction levers on the rack to pull the board. Never pull by the front panel LEDs, or you risk cracking the PCB traces.
- Dust is the Enemy: High-voltage excitation environments often attract conductive dust. Use a can of dry compressed air to clean the board every 12 months to prevent high-impedance shorts between logic traces.
