Description

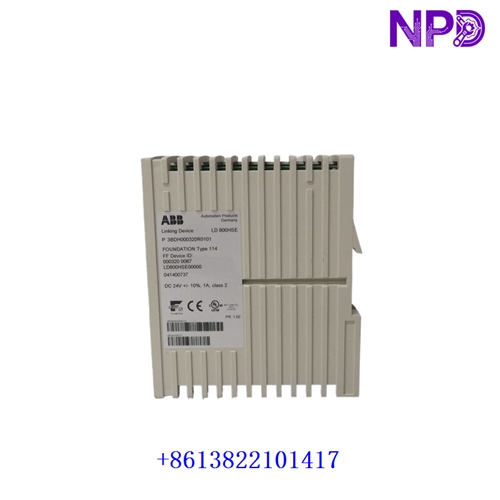

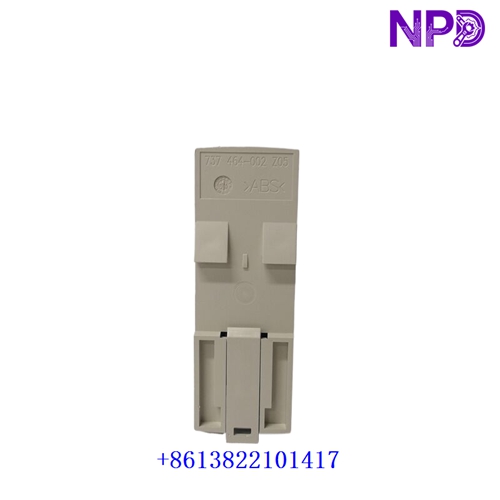

The ABB LD800HSE is an advanced Foundation Fieldbus (FF) Linking Device designed to serve as a high-performance gateway between FOUNDATION Fieldbus H1 networks and HSE (High Speed Ethernet) subnets. It allows seamless integration of field instruments into supervisory systems, control consoles, and asset management platforms. Supporting seamless redundancy configurations, it ensures high availability, reliable data transmission, and deterministic communication for complex industrial automation and process control environments.
📊 Product Datasheet
| Parameter | Value |
| Brand | ABB |
| Model | LD800HSE |
| Series | Freelance / System 800xA Fieldbus Infrastructure |
| Product Name | Foundation Fieldbus Linking Device / Gateway |
| Origin | Germany / Sweden |
| Product Status | Active / Industrial Automation Spare Part |
| Dimensions | 47 mm \times 131 mm \times 111 mm (DIN rail mountable) |
| Weight | 0.4 kg |
| Country of Origin | Germany (DE) / Sweden (SE) |
| Power Rating / Supply | 24V DC (\pm20%), 4.8 W typical |
🛠️ Operation Standards and Usage Methods
🔸 Mounting Standards: Mount the LD800HSE securely onto a standard 35mm DIN rail within a certified industrial control cabinet. Ensure adequate spacing above and below the unit to allow proper natural convection cooling and prevent thermal stress.
🔸 Network Interfacing: Connect the High-Speed Ethernet (HSE) port to the control network switch using shielded twisted-pair cables. Wire the Foundation Fieldbus H1 channels accurately to the respective field devices, ensuring proper termination resistors are installed at both ends of the H1 trunk.
🔸 Configuration and Startup: Utilize ABB engineering tools (such as Control Builder or Fieldbus Builder) to configure the linking device parameters, device tags, and communication schedules. Verify all network LED indicators for proper power, link activity, and redundancy status prior to plant commissioning.
🚨 Emergency Shutdown Procedures
🔺 System-Level Isolation: In the event of a critical network storm, severe communication failure, or hazardous plant condition, initiate an orderly shutdown via the upper-layer control system or isolate the segment power supplies safely.
🔺 Power Disconnection: Switch off the external 24V DC power feed supplying the LD800HSE module to completely cut off operational power when performing emergency hardware replacements or local maintenance.
🔺 Signal Integrity Check: After an emergency intervention, inspect all Ethernet and H1 fieldbus connections thoroughly to ensure no physical damage or loose cabling occurred during the shutdown process.
🔍 Troubleshooting and Common Issues
⚠️ Issue 1: Loss of Communication on H1 Channels
Troubleshooting Method: Check the physical wiring, junction boxes, and fieldbus power conditioners. Verify that the bus termination is correct (one terminator at each end of the H1 segment) and check diagnostic LEDs for fault codes.
⚠️ Issue 2: Ethernet Link Failure on HSE Port
Troubleshooting Method: Inspect the RJ45 Ethernet patch cable and network switch ports. Ensure that network speed/duplex settings match and verify that IP configurations or redundancy link parameters are properly assigned.
⚙️ Routine Maintenance and Care
🔹 Visual Inspection: Periodically inspect the unit for any accumulation of dust, secure seating on the DIN rail, and firm connection of terminal plugs and communication cables.
🔹 Environmental Monitoring: Ensure that the cabinet internal temperature remains within the specified operating range (0°C to +55°C) and that relative humidity does not exceed non-condensing limits.
🔹 Firmware & Diagnostics: Regularly review diagnostic logs via the management console to monitor communication error rates, buffer overruns, and overall health status of the linking device.
💡 Frequently Asked Questions Q&A
❓ Q1: Can the LD800HSE be configured for redundant operation?
💬 A1: Yes, the LD800HSE supports redundant configurations. By connecting duplicate linking devices to the same H1 segment and HSE network, high availability and bumpless switchover can be achieved in case of a primary device failure.
❓ Q2: What type of fieldbus protocol does this device bridge?
💬 A2: It bridges FOUNDATION Fieldbus H1 (31.25 kbit/s) field instrumentation to FOUNDATION Fieldbus HSE (High Speed Ethernet) control backbones.
❓ Q3: Is special software required to configure the LD800HSE?
💬 A3: Yes, configuration is typically performed using ABB’s system engineering tools (such as Freelance or System 800xA engineering software) alongside device descriptions (DD/EDD) for connected field instruments.
