Description
Product Parameters
- Model Number: LSP086388-001
- Part Category: Power Supply Unit (PSU) / Power Distribution Module
- System Compatibility: ABB UNITROL series / MEGATROL Power Electronics
- Input Voltage: 115V / 230V AC (Automatic or Jumper selectable)
- Output Voltage: Regulated DC rails (typically +5V, ±15V, +24V) for control logic
- Mounting Type: Subrack / Rack-mounted integrated module
- Country of Origin: Switzerland
- Weight: 2.87 lbs (1.30 kg)
- Dimensions: 8.5 in x 4.2 in x 5.1 in (21.6 cm x 10.7 cm x 13.0 cm) The ABB LSP086388-001 is a specialized power supply module designed to provide highly stable DC voltages to the control electronics within UNITROL excitation systems. It serves as a foundational component in the power distribution architecture, ensuring that digital controllers, gate-driver boards, and communication interfaces receive noise-free power even during fluctuating input conditions. Built with industrial-grade filtering and transient protection, this module is engineered for continuous 24/7 operation in power generation environments where reliability is essential for maintaining generator field control.

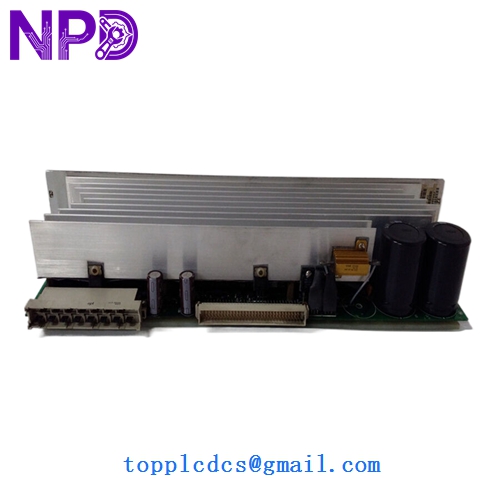

ABB LSP086388-001

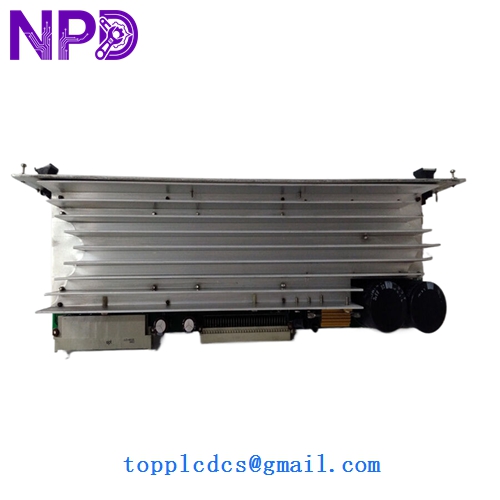

ABB LSP086388-001
ABB LSP086388-001
Model Comparison
The LSP086388-001 is often utilized in mid-to-high power UNITROL configurations, whereas the LSP086388-002 or later revisions may feature updated capacitor technology for higher temperature tolerance. Compared to the ENK series power supplies, the LSP variant is frequently found in customized or specialized rack configurations for MEGATROL systems, offering a different connector pinout or higher current capacity on specific logic rails. While it performs the same fundamental task as standard industrial DIN-rail power supplies, the LSP086388-001 features specialized backplane connectors and mechanical guides designed specifically for ABB’s proprietary excitation subracks.
Operation Tips
- Rack Alignment: When inserting the module into a live or powered-down rack, ensure the guide rails are perfectly aligned to prevent bending the high-density pins on the rear backplane connector.
- Thermal Clearance: Maintain clear airflow around the subrack; the LSP086388-001 relies on the cabinet’s forced-air system to dissipate heat from its internal voltage regulators.
- Redundancy Monitoring: In systems equipped with dual power supplies, check the “Health” or “OK” LEDs on the front panel regularly to ensure the load is being shared or that the backup unit is in a ready state.
- Capacitor Inspection: During long-term maintenance cycles (5-10 years), inspect the module for signs of capacitor aging, such as bulging or leakage, which can lead to increased voltage ripple and logic errors.
