Description
- Model: LT9673a
- Part Number: HESG446076R1
- Secondary ID: HE663599-31813
- Brand: ABB (Switzerland/Sweden)
- Function: High-speed Analog Signal Processing (I/O)
- Signal Processing: Multi-channel analog inputs and outputs designed for high-frequency control loops.
- Precision: High-resolution A/D and D/A converters for accurate process variable tracking.
- Isolation: Galvanically isolated channels to prevent noise interference between field devices and the central processor.
- Revision Level: HESG446076R1 (Specific hardware configuration for high-performance applications).
- Compatibility: Designed for integration into ABB’s standard rack-based control architectures.
- Diagnostics: Onboard status LEDs for power supply health and signal activity monitoring.
- Coating: Often features industrial conformal coating to resist humidity and corrosive gases in heavy industrial environments.

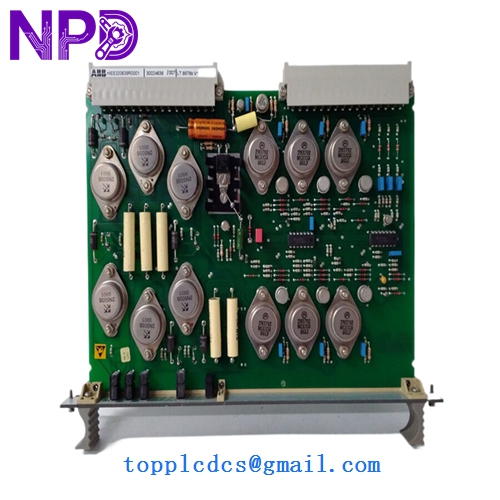

ABB LT9673a HESG446076R1 HE663599-31813
ABB LT9673a HESG446076R1 HE663599-31813
ABB LT9673a HESG446076R1 HE663599-31813
ABB LT9673a HESG446076R1 HE663599-31813
Installation & Configuration Guide
Phase 1: Pre-Installation (Preparation)
⚠️ Critical Warning: Analog I/O boards handle the “senses” of your control system. A faulty installation can lead to unstable process control or false instrument readings.
- Project Documentation: Verify the jumper settings (if any) and software addresses assigned to this slot in your original system documentation.
- Backup: Ensure you have a current backup of the controller parameters.
- ESD Safety: Use a grounded wrist strap. The precision converters on the LT9673a are highly sensitive to static discharge.
Phase 2: Removal & Replacement (Step-by-Step)
- Power Down: Fully de-energize the control rack.
- Wiring Management: Carefully label each analog wire before disconnecting. Analog loops are polarity-sensitive; swapping a positive and negative lead will result in an “Open Loop” or negative reading error.
- Extraction: Unscrew the retaining fasteners and pull the LT9673a straight out of the backplane connectors.
Phase 3: Commissioning
- Insertion: Align the board with the rack guides and push firmly into the backplane. Secure the screws to ensure a proper chassis ground.
- Power-Up: Restore power and observe the “RDY” or “Health” LEDs.
- Loop Verification:
- Use a signal generator (e.g., Fluke 789) to simulate a 4-20mA or 0-10V signal.
- Confirm the HMI or engineering tool displays the correct value for each channel.
- Check for any “Analog Input Fault” diagnostic alarms.
Customer Cases & Industry Applications
Case 1: Correcting Drift in a Rolling Mill A steel rolling mill experienced inconsistent thickness in its final product. Troubleshooting revealed that the aging LT9673a board in the hydraulic positioning loop had begun to “drift” due to thermal aging of its reference capacitors. Replacing the unit with a New Surplus HESG446076R1 restored the positioning accuracy to within microns, immediately improving product quality.
Case 2: Recovering from a Control Room Surge During a severe electrical storm, an induced surge entered the analog cabling of a pulp and paper plant, frying several I/O boards. The plant was at a standstill. Because they had a New Surplus LT9673a in their inventory, the maintenance team swapped the board and resumed production within hours, avoiding the weeks of downtime typically associated with sourcing legacy ABB electronics.
Frequently Asked Questions (FAQ)
Q: Is the LT9673a compatible with all HESG-series racks? A: Generally, yes, but you must ensure the part number HESG446076R1 matches exactly. Small variations in the revision code can indicate different input/output voltage ranges or signal types.
Q: Does this board require software programming? A: No. The LT9673a is an I/O interface board. The logic resides in the main CPU. However, you must ensure the physical jumpers on the board (if present) match your system’s configuration for voltage vs. current signals.
Q: Why choose “New Surplus” over “Refurbished”? A: Analog boards rely on high-precision components that degrade with heat and time. Refurbished boards often have components that are near the end of their operational life. New Surplus ensures you are getting a board with original factory tolerances and full operational longevity.
Q: What is the significance of the HE663599-31813 number? A: This is an internal manufacturing and tracking number. While important for batch traceability, the primary identifier for compatibility is the HESG446076R1 part number.
