Description

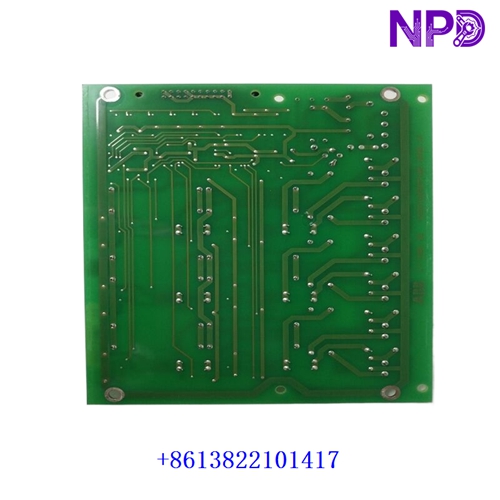

The ABB LTC391AE01 (Part Number: HIEE401782R0001), also recognized as the ACS6000 Low Voltage Gate control board, is a high-performance electronic module engineered specifically for ABB medium-voltage drives and industrial motion control systems. It plays a critical role in managing precise gate firing signals and voltage regulation for high-power semiconductor devices. Built to industrial-grade standards, it guarantees high switching accuracy, stable signal transmission, and robust thermal endurance in demanding operational environments such as marine propulsion, mining mills, and large compressor stations.
📊 Product Datasheet
| Parameter | Value |
| Brand | ABB |
| Model | LTC391AE01 / HIEE401782R0001 |
| Series | ACS6000 / Low Voltage Gate Series |
| Product Name | Low Voltage Gate Control Board |
| Origin | Switzerland |
| Product Status | Active / Industrial Automation Spare Part |
| Dimensions | Standard 3U Eurocard Format |
| Weight | 0.24 kg |
| Country of Origin | Switzerland (CH) |
| Power Rating | Low Voltage DC Backplane Supply |
🛠️ Operation Standards and Usage Methods
🔸 Installation Preparation: Ensure that the control cabinet is completely de-energized before handling or installing the module. Always wear a certified anti-static wrist strap to protect sensitive microelectronic components from electrostatic discharge.
🔸 Board Insertion: Carefully align the module with the dedicated card guides inside the rack. Push it firmly and evenly until it connects securely with the backplane connector, then lock any mechanical retaining latches.
🔸 Initial Verification: Power on the control rack and observe the on-board diagnostic LED indicators to confirm proper initialization, normal communication link status, and the absence of any fault codes.
🚨 Emergency Shutdown Procedures
🔺 Immediate Power Interruption: In the event of critical system faults, overvoltage warnings, or hardware failure alarms, trip the main system circuit breaker immediately to cut off power to the drive lineup.
🔺 Control Signal Blocking: Issue an immediate emergency stop command via the upper-layer control architecture to block all gate firing pulses and disable power semiconductor conduction safely.
🔺 Post-Incident Inspection: Allow the system to cool down completely and inspect the gate control board and associated fiber-optic cables for any physical damage before attempting any restart procedure.
🔍 Troubleshooting and Common Issues
⚠️ Issue 1: Board Communication Failure or Fault LED Lit
Troubleshooting Method: Check if the module is fully seated into the backplane connector. Verify that all optical fiber links and internal interface connectors are intact and securely plugged in.
⚠️ Issue 2: Intermittent Gate Control Errors
Troubleshooting Method: Inspect the cabinet environment for excessive dust accumulation or high humidity that could cause signal degradation. Clean the board using approved electronics cleaner if necessary and check power supply stability.
⚙️ Routine Maintenance and Care
🔹 Periodic Visual Checks: Conduct routine visual inspections every month to check for dust buildup, secure connections, and any signs of component discoloration caused by long-term thermal stress.
🔹 Environmental Control: Maintain the equipment room or control cabinet within recommended temperature and humidity ranges to prevent premature aging of electronic components.
🔹 Firmware and Diagnostic Logs: Periodically review diagnostic logs via the engineering workstation to monitor error rates and ensure optimal system performance tracking.
💡 Frequently Asked Questions Q&A
❓ Q1: Can the LTC391AE01 board be hot-swapped during operation?
💬 A1: No. Hot-swapping is not supported for this module. You must completely de-energize the rack before inserting or removing the control board to prevent electrical damage.
❓ Q2: What is the primary function of this module in the ACS6000 drive?
💬 A2: It manages the low-voltage gate control signals and interface communication required to fire the power semiconductors accurately and safely.
❓ Q3: How should spare boards be stored when not in use?
💬 A3: Store spare boards in their original anti-static packaging within a clean, dry, climate-controlled environment free from corrosive gases and excessive vibrations.
