Description

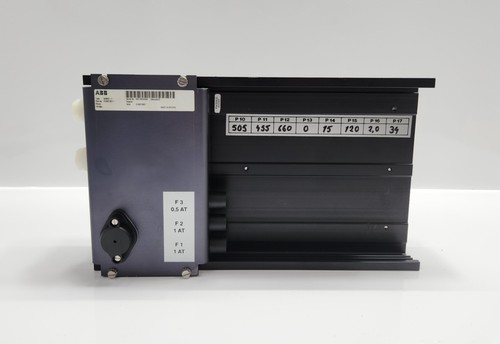

The ABB MARST-1 (Part Number: 3183018911) is a specialized control module engineered for high-performance industrial automation and process control systems. As a critical component within ABB’s architecture, it is designed to interface with field sensors and actuators to maintain precise operational control, ensuring reliability in demanding industrial environments.
Technical Parameters
- Model: MARST-1
- Part Number: 3183018911
- Input Power: 24 VDC (Standard Industrial)
- Connectivity: Dedicated backplane interface for high-speed data exchange
- Dimensions: 170 mm x 120 mm x 45 mm
- Weight: 0.65 kg
- Origin: Sweden/Germany (Varies by manufacturing batch)
Application Areas
- Power distribution and grid automation
- Petrochemical and refining process control
- Heavy manufacturing automation
- HVAC and large-scale industrial temperature management
Product Usage Instructions
- System Preparation: Ensure the rack/chassis is powered down before installation to prevent electrical shorts.
- Installation: Align the module with the cabinet guide rails and insert firmly until the connector pins are fully seated in the backplane.
- Configuration: Utilize the ABB management software interface to define the logic parameters and assign the module address within the control network.
- Validation: Check status LEDs upon system startup; solid green indicates normal synchronization, while flashing amber or red indicates a configuration or hardware fault.
Product Description
The MARST-1 module acts as a robust intermediary in control loops, translating low-level sensor inputs into actionable digital signals for the central processor. Its architecture is optimized for low-latency communication, which is vital for maintaining stability in sensitive industrial processes.
Protection & Environmental Parameters
- IP Rating: Designed for integration within IP54-rated control enclosures.
- Corrosion Resistance: High-durability conformal coating applied to all internal printed circuit boards.
- Operating Temperature: -10°C to +60°C.
- Storage Temperature: -25°C to +85°C.
- Humidity: 5% to 90% relative humidity, non-condensing.
Mechanical & EMC Standards
- Vibration Resistance: Designed to meet industrial standards for constant-load machinery vibration.
- Shock Resistance: Capable of withstanding mechanical impact typical of industrial installation and cabinet maintenance.
- EMC Compliance: Certified for high immunity against electromagnetic interference (EMI) and electrostatic discharge (ESD) in electrical environments.
Frequently Asked Questions
- How do I reset a communication error on the MARST-1? First, perform a soft reboot via the management software. If the error persists, check the backplane connection pins for debris or oxidation.
- Is this module field-repairable? No, the module is a sealed assembly; attempted field repair may void certifications and compromise safety.
- Does the module retain data if power is lost? Yes, it utilizes non-volatile onboard memory to save critical configuration files during power interruptions.
- Can I replace this with a different ABB module? No, the MARST-1 must be replaced with the exact same model number to ensure compatibility with existing I/O mapping and firmware.
