Description
The ABB MC91, identified by part numbers HESG440588R4 and HESG112714, is a high-performance processor and communication control board engineered for industrial automation and power electronics control systems. Frequently utilized within ABB’s specialized power transmission control frameworks, excitation systems, and Procontrol P13/P14 platforms, this board delivers high-speed data processing, handles complex mathematical algorithms for system regulation, and manages deterministic bus communications to ensure real-time stability and protection of critical industrial infrastructure.
Technical Specifications and Datasheet
- Manufacturer: ABB
- Model Designation: MC91
- Order / Part Numbers: HESG440588R4 / HESG112714
- Product Type: Central Processor & Communication Unit Board
- Dimensions: 23.4 cm x 16.0 cm x 2.4 cm (9.21 in x 6.30 in x 0.94 in)
- Weight: 0.48 kg (1.06 lbs)
- Country of Origin: Switzerland / Germany
- Power Requirements: Supplied directly via the system sub-rack backplane interface
- Communication Interfaces: High-speed proprietary system bus and serial diagnostic ports
- Operating Temperature: 0°C to +55°C (32°F to 131°F)
- Storage Temperature: -40°C to +70°C (-40°F to +158°F)
- Humidity Protection: Up to 95% relative humidity, non-condensing

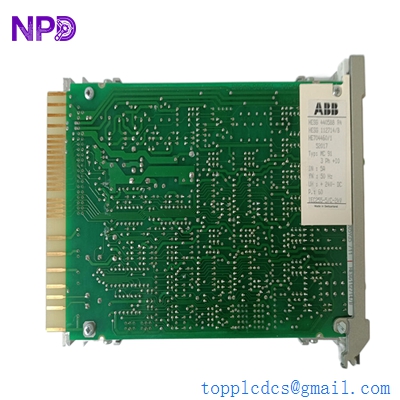

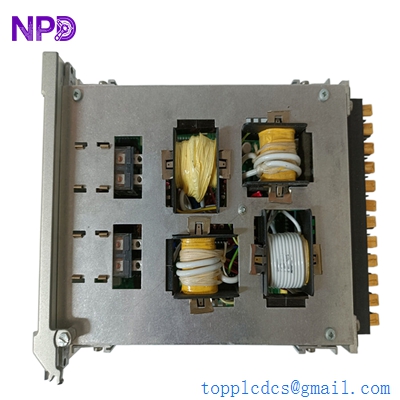

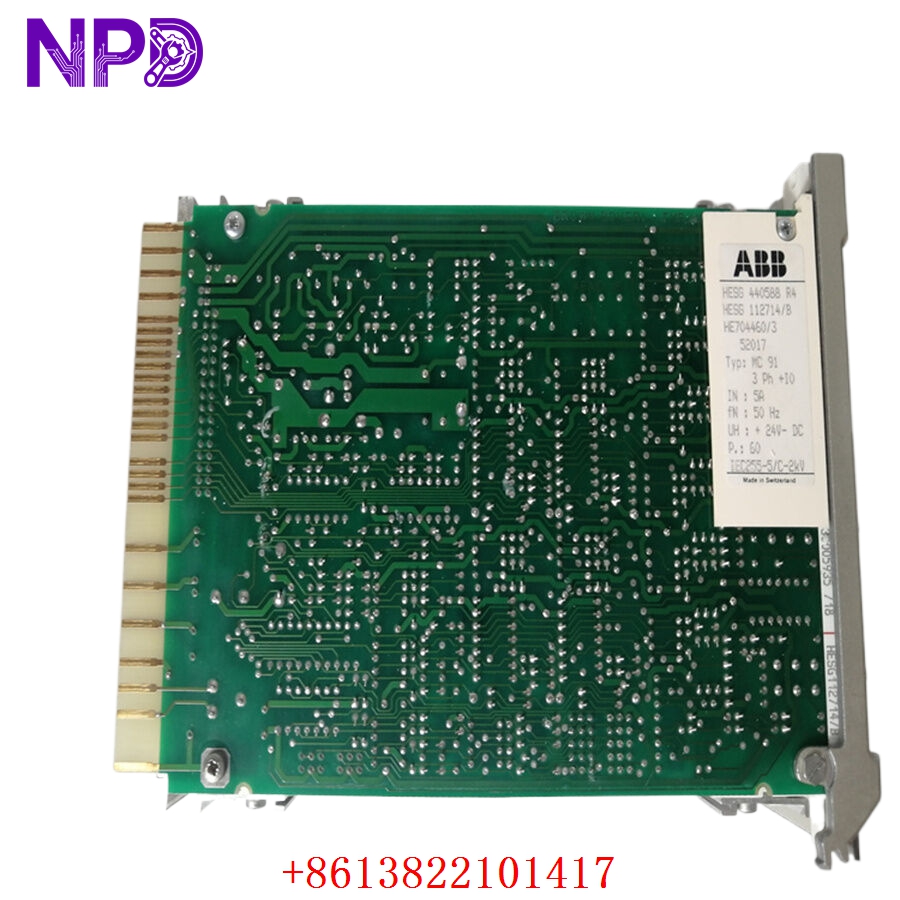

ABB MC91 HESG440588R4 HESG112714B
ABB MC91 HESG440588R4 HESG112714B
Application Fields
The ABB MC91 board is deployed in highly demanding fields requiring absolute operational continuity:
- Power Grid Automation: Integrated into High-Voltage Direct Current (HVDC) transmission systems and Static Var Compensators (SVC) for fast dynamic response.
- Excitation Systems: Managing generator excitation controls (such as UNITROL systems) in large-scale utility power plants.
- Turbine Control Networks: Serving as a processing node for governor regulation in hydro, steam, and gas turbines.
- Heavy Industrial Drives: Providing coordinated control overhead for high-power synchronous motor configurations.
Product User Instructions
- Sub-Rack Installation: Prior to mounting, verify the master rack power is fully turned off. Slide the board smoothly into its allocated slot along the guiding tracks to prevent misalignment or mechanical stress on the rear connector pins. Tighten any integrated retaining screws to secure the board.
- Hardware Address Mapping: Configure any onboard hardware jumpers or DIP switches according to your system documentation before installation. These settings dictate the board’s node identification and memory mapping within the bus structure.
- Electrostatic Dissipation (ESD): Circuit board traces and microchip components are highly susceptible to ESD damage. Always wear a grounded static-control wrist strap and handle the unit only by the front panel plate or edge boundaries.
- Initialization Diagnostic: When power is restored to the system, monitor the front-panel status indicators. Run standard loop diagnostics from the central control terminal to confirm successful handshake synchronization with partner processing nodes.
Frequently Asked Questions (Q&A)
Q1: What is the difference between the HESG440588R4 and HESG112714 numbers? A1: MC91 is the product name. HESG440588R4 refers to the specific physical circuit board assembly hardware configuration and its revision level (R4), while HESG112714 represents an associated sub-assembly number, schematic layout identifier, or component part number used during manufacturing.
Q2: Can the MC91 board be plugged in while the system rack is live? A2: No, it is strongly advised to power down the specific chassis sub-rack prior to extraction or installation. Inserting a processing board into a live backplane can generate sudden voltage spikes that risk corrupting system memory or damaging fragile surface-mount electronics.
Q3: What are the primary indicators of a malfunctioning MC91 board? A3: General symptoms include a red “Fault” or “Error” LED illuminated steadily on the faceplate, communication timeout errors reported at the master HMI console, or an unexpected system trip originating from the specific controller rack slot.
