Description
The MPRC086444-005 is a sophisticated control module primarily utilized in ABB’s high-power industrial drive systems. This Drive Control Board acts as the central intelligence unit for frequency converters and motor drives, managing complex power electronics switching and system diagnostics to ensure optimal motor performance and protection.
Product Introduction
The MPRC086444-005 is part of the MPRC series of printed circuit board assemblies (PCBA). It is engineered to handle real-time processing of pulse-width modulation (PWM) signals, feedback loops from sensors, and communication with higher-level PLC systems. Designed for longevity in demanding industrial environments, the board features robust shielding against electromagnetic interference (EMI) and high-quality components to withstand thermal cycling.

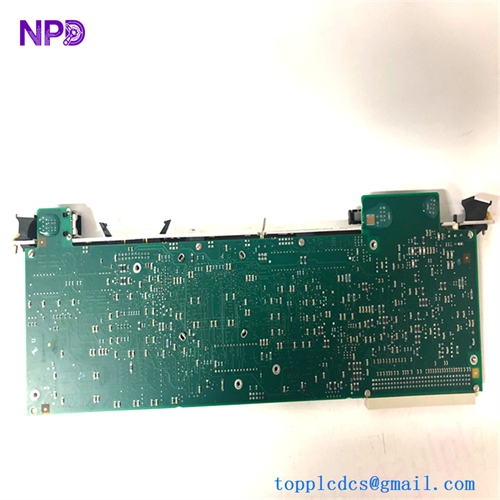

ABB MPRC086444-005
Product Parameters (Datasheet)
| Parameter | Specification |
| Model Number | MPRC086444-005 |
| Module Category | Power Electronics Control Board |
| Supply Voltage | 24 VDC (Internal Bus Powered) |
| Interfaces | Fiber Optic Links, RS-485, Parallel Bus |
| Compatible Series | Large Scale ABB Variable Frequency Drives (VFD) |
| Signal Processing | High-speed FPGA / DSP Architecture |
| I/O Support | Digital and Analog Feedback Channels |
| Cooling | Passive (Forced air required via Drive Fan) |
| Operating Temp | 0°C to +70°C |
Country of Origin
- Origin: Finland / Switzerland (ABB Power Electronics Division)
Usage Instructions
- Anti-Static Precautions: Before handling the MPRC086444-005, ensure you are wearing a grounded ESD wrist strap, as the microprocessors are sensitive to static discharge.
- Mounting: Align the board with the standoffs inside the drive cabinet. Secure it using the original mounting screws to ensure proper grounding to the chassis.
- Cable Connections: Carefully reconnect all ribbon cables and fiber optic connectors. Ensure fiber optic ends are clean and free of dust before insertion.
- Firmware Verification: Upon replacement, the board may require a firmware synchronization with the Drive’s main interface module to ensure compatibility.
- Initialization: Power up the control circuit first (without mains power to the motor) to perform a self-diagnostic check via the drive’s keypad or PC tool.
Product Q&A
- Q: Can the MPRC086444-005 be used interchangeably with the -001 version?
- A: Generally, the suffix (-005) indicates a specific hardware revision or component change. While they may look similar, you must verify the drive’s firmware version to ensure the -005 revision is supported.
- Q: What is the most common failure symptom for this board?
- A: Fault codes related to “Communication Loss,” “Processor Malfunction,” or “Gate Driver Timing Errors” usually point toward an issue with this control board.
- Q: Are there fiber optic ports on this board?
- A: Yes, many MPRC series boards use fiber optics for gate signal transmission to provide electrical isolation between the control logic and high-voltage power components.
Recommended Similar Models
- ABB MPRC084222-001: Standard processor board for older drive generations.
- ABB MPRC086444-003: An intermediate revision of the 086444 series.
- ABB SDCS-CON-4: A common control board used in ABB DCS series DC drives.
- ABB RDCU-12C: Control unit module used in ACS800 series drives.
- ABB AMC33-2: High-performance application controller for specialized drive tasks.
Documentation & Manuals
For detailed circuit diagrams and a full list of drive-specific error codes associated with this module:
Download ABB MPRC086444-005 MANUAL datasheet
